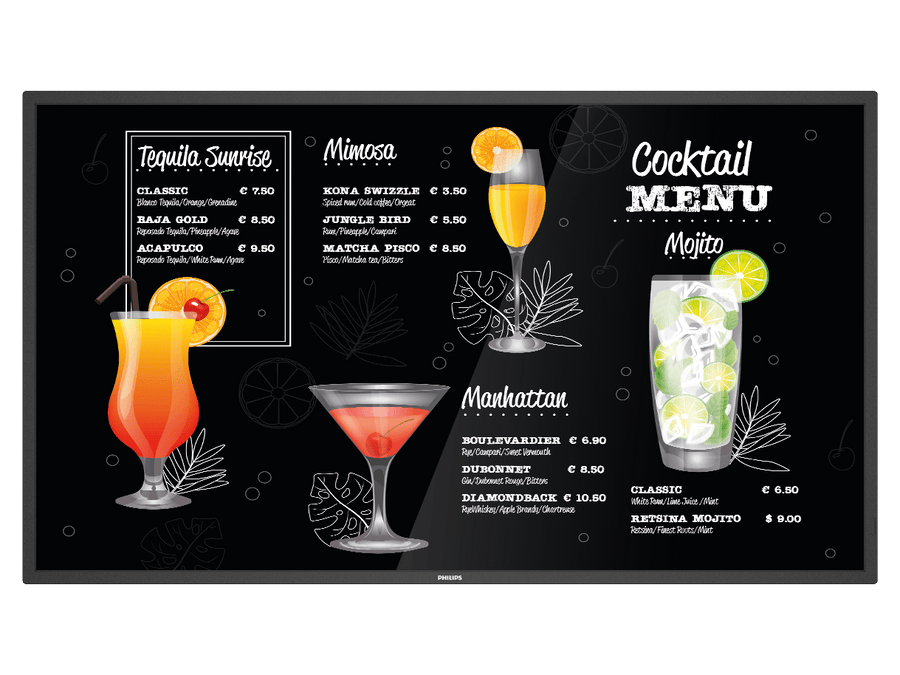

The Philips 43BDL3117P/00 is a 43-inch 4K UHD digital signage display from the P-Line of the Signage 3000 Series. It delivers 750 nits brightness, is rated for 24/7 operation in landscape or portrait, and includes an ambient light sensor. Procure.ae supplies the Philips 43BDL3117P/00 in the UAE as an authorised reseller.
The 3840 x 2160 ADS panel runs at 60 Hz with 750 nits brightness, 178-degree viewing angles, 1,200:1 typical contrast and 500,000:1 dynamic contrast. Response time is 8 ms typical, and the display shows 1.07 billion colours. Two 10 W RMS speakers are built in. The display supports tiling of up to 15 x 15 units and has carrying handles to ease installation. Typical consumption is 80 W, with 220 W maximum and standby below 0.5 W.
The manufacturer names retail, transportation, and food and drink as target settings. The display is controlled through RS232C, RJ45 and IR, and an RS232 daisy-chain cable is included for serial control. Ports include DisplayPort 1.2, three HDMI 2.0 inputs, a DVI-I input, a USB 2.0 port, a Micro SD slot and 3.5 mm audio in and out. Compared with the 43BDL3510Q/00 from the Q-Line, it has 750 nits instead of 400 nits, lists an ambient light sensor and has a higher maximum consumption of 220 W against 150 W.
| Key Features | 4K UHD, 750 nits, 24/7 landscape or portrait, ambient light sensor, tiling up to 15 x 15, carrying handles, Smart Power, built-in speakers |
| Model | 43BDL3117P/00 |
| Type | Digital Signage Display |
| What's in the Box | Power cables (x 3), remote control with AAA batteries, RS232 cable (3 m), RS232 daisy-chain cable, wire clampers (x 3), edge alignment kit (x 2), quick start guide, USB cover, Philips logo |
| Aspect Ratio | 16:9 |
| Bezel Size | 13.9 mm (even) |
| Brightness | 750 nits |
| Color Depth | 1.07 billion colours |
| Contrast Ratio | 1,200:1 |
| Orientation | Landscape and portrait (24/7) |
| Panel Technology | ADS |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 42.5 inch |
| Viewing Angle | 178° horizontal, 178° vertical |
| Storage Conditions | -20 to 60 °C, 5% to 95% RH |
| Dynamic Range | 500,000:1 |
| Speaker Output | 2 x 10 W RMS |
| Connectivity | RJ45 LAN, IR in and out (3.5 mm jack), ambient light sensor |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | DisplayPort 1.2 In × 1, DVI-I In × 1, HDMI 2.0 In × 3, USB 2.0 × 1, DisplayPort 1.2 Out × 1, HDMI 2.0 Out × 1, 3.5 mm audio In/Out |
| SD Card Slot | Micro SD (x 1) |
| Serial Port | RS232C in and out (2.5 mm jack) |
| Power Consumption | 80 W (typical), 220 W (max) |
| Standby Power | Less than 0.5 W |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 40 °C |
| VESA Mount | 200 x 200 mm (M6) |
| Weight | 13.94 kg |
| Certifications | CE, FCC Class A, CB, BSMI, EAC, EMF, VCCI, PSB, ETL, EPA |
| Warranty | 3 years |
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
