PhilipsDigital SignageSKU 55BDL6002H/00

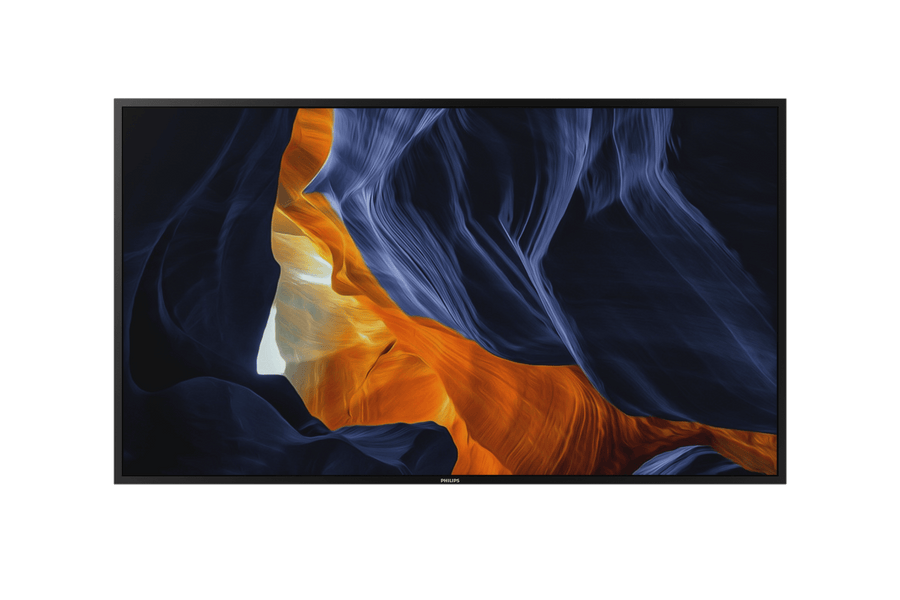

Philips H-Line 6000 High Brightness 55-inch Signage Display – 55BDL6002H/00
The Philips 55BDL6002H/00 is a 54.6-inch high-brightness digital signage display for busy areas with high ambient light, such as airports and shopping centres. It has 2500 nits brightness, a 1920 x 1080 panel and 4000:1 typical contrast. Procure.ae supplies it across the UAE.
The 55BDL6002H/00 is designed for busy areas that receive high ambient light. Its 2500 nits brightness and 4000:1 typical contrast support visibility in bright locations, with 178-degree horizontal and vertical viewing angles. The 1920 x 1080 panel runs at 60 Hz with an 8 ms typical response time and shows 1.07 billion colours. Advanced colour control, pixel shift, low brightness and Smart Power settings are included.
The display supports landscape or portrait placement, 24/7, and is fitted with carrying handles, Smart Insert mounting (100 x 100 mm pitch) and a 400 x 400 mm M6 wall mount. Its inputs include two HDMI 1.4 ports, DisplayPort 1.2, DVI-D, VGA and component BNC, with an OPS slot, RS232 and RJ45 control. Compared with the 55BDL4002H/00, this 6000 series model adds VGA and component inputs and lists HDMI 1.4 rather than HDMI 2.0.
Screen Size
54.6 inch
Resolution
1920 x 1080 (Full HD)
Brightness
2500 nits
Type
Digital Signage Display
- High brightness
- Contrast and viewing angle
- Full HD panel
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
High brightness
2500 nits brightness for busy areas with high ambient light.
02
Contrast and viewing angle
4000:1 typical contrast with 178-degree viewing angles.
03
Full HD panel
1920 x 1080 resolution at 60 Hz with 8 ms typical response time.
04
Advanced colour control
Picture settings include advanced colour control, with 1.07 billion colours shown.
05
Screen-saving modes
Pixel shift and low brightness screen-saving functions are included.
06
Smart Insert mounting
100 x 100 mm Smart Insert pitch, a 400 x 400 mm M6 wall mount and carrying handles.
07
Multiple inputs
Two HDMI 1.4 inputs, DisplayPort 1.2, DVI-D, VGA and component BNC.
08
Network control
RS232, RJ45 and IR control, with lockable remote and keyboard.
Specifications
28 specificationsGeneral
Key Features2500 nits brightness, Pixel shift and low brightness, Smart Power, Smart Insert mounting, Lockable remote and keyboard, RS232 and RJ45 control, Advanced colour control
Model55BDL6002H/00
TypeDigital Signage Display
What's in the BoxAC power cord, quick start guide, remote control with AAA batteries, RS232 cable, edge alignment kits, thumbscrews (8)
Display
Aspect Ratio16:9
Bezel Size13.6 mm (even)
Brightness2500 nits
Color Depth1.07 billion colours
Contrast Ratio4,000:1 (typical)
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size54.6 inch
Viewing Angle178 degrees (horizontal and vertical)
Performance
Storage Conditions-20 to 60 °C; 5% to 95% RH
Audio
Speaker Output2 x 10 W RMS
Connectivity
HDMI Inputs2 (HDMI 1.4)
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes
PortsInputs: DisplayPort 1.2 × 1, DVI-D × 1, HDMI 1.4 × 2, VGA × 1, component BNC × 3; outputs: DisplayPort 1.2 × 1, DVI-I × 1; USB 2.0 × 1, RJ45 × 1, RS232C × 1
Power
Power Consumption295 W (typical); 420 W (max)
Standby PowerLess than 0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm (M6); Smart Insert 100 x 100 mm
Weight31.84 kg
Compliance
CertificationsCB, CE, UL/cUL, EAC, FCC Class A, PSB, PSE, VCCI, EMF
Warranty3 years
Downloads
Manufacturer documents for the Philips H-Line 6000 High Brightness 55-inch Signage Display – 55BDL6002H/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the 55BDL6002H/00 suitable for busy, brightly lit areas?
Yes. It is designed for busy areas with high ambient light, and it has 2500 nits brightness. Philips positions it for locations such as airports and shopping centres, where a bright, high-contrast picture is needed.
Does the 55BDL6002H/00 support RS232 and network control?
Yes. It has RS232C (in and out), RJ45 and IR (in and out) control, and the remote control and keyboard can be locked. Network control is available over RS232 and RJ45, which allows central management of several displays.
Can the 55BDL6002H/00 be wall mounted?
Yes. It has a 400 x 400 mm M6 wall mount pattern and a Smart Insert mount with 100 x 100 mm pitch, plus carrying handles for installation. The product weighs 31.84 kg, so use a bracket rated for that load.
What power does the 55BDL6002H/00 need?
It runs on 100 to 240 VAC, 50 to 60 Hz mains power. Typical consumption is 295 W and maximum consumption is 420 W, with standby below 0.5 W, as stated in the manufacturer's specification.
Can I buy the 55BDL6002H/00 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
