PhilipsInteractive Flat PanelsSKU 75BDL4052E/02

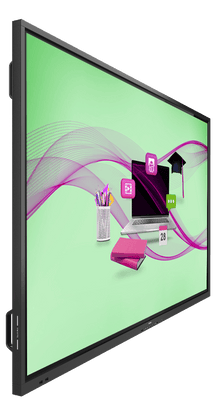

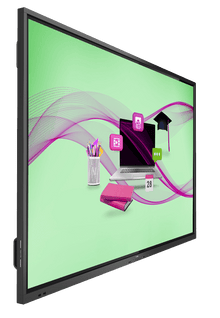

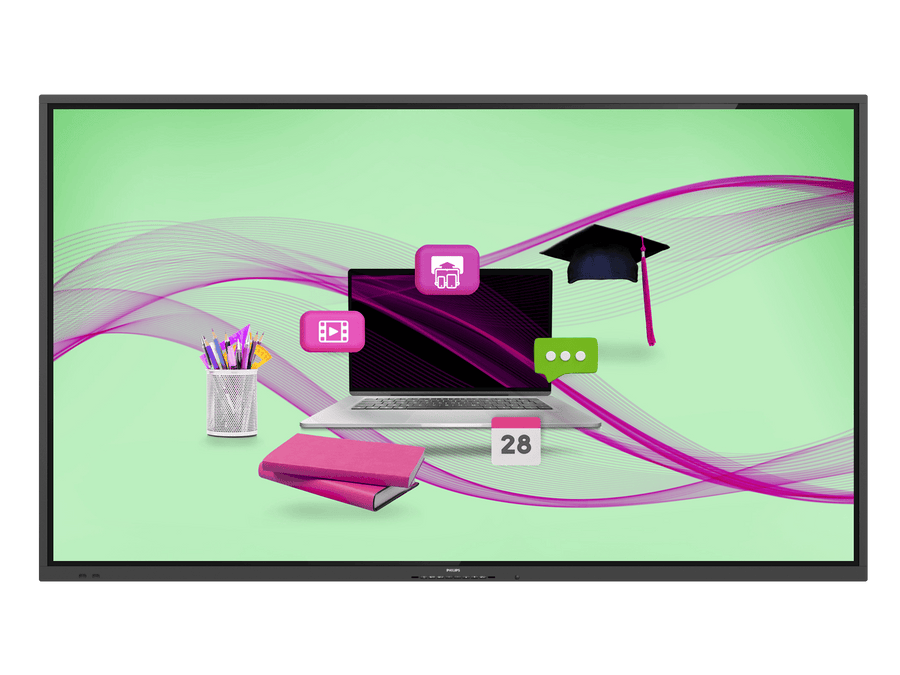

Philips E-Line 4000 75-inch Interactive Flat Panel – 75BDL4052E/02
The Philips 75BDL4052E/02 is a 75-inch 4K UHD interactive flat panel with 20-point infrared touch, Android 11 and 8 GB memory. It suits classrooms, meeting rooms and training spaces that need a large touch display with built-in Wi-Fi and network control. Procure.ae supplies the Philips 75BDL4052E/02 as an authorised reseller across the UAE.
The 75BDL4052E/02 has a 74.5-inch diagonal ADS panel at 3840 x 2160 with 20 simultaneous touch points. Brightness is rated at 380 nits, with a 1,200:1 typical contrast ratio and a 500,000:1 dynamic contrast ratio. The Android 11 platform uses an MTK 9970A processor with 8 GB memory and 32 GB eMMC storage. Wi-Fi supports 2G/5G/6G bands, and two 15 W speakers are built in. Typical power consumption is 190 W, with a maximum of 450 W.
The E-Line 4000 suits classrooms, boardrooms and training rooms that need compatibility with educational software and programs. It offers three HDMI 2.0 inputs, three USB 3.0 inputs and a USB-C input rated up to 65 W. Compared with the 75-inch 3000 Series E-Line, this 4000 model adds Android 11, 8 GB memory, 32 GB storage and built-in Wi-Fi, with the same 20-point touch. It mounts on a 600 x 400 mm wall pattern with M8 fixings or uses Smart Insert mounting, and it weighs 55.85 kg.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
380 nits
Touch Technology
Infrared
- 4K UHD Display
- 20-Point Touch
- Android 11 Platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Display
74.5-inch diagonal ADS panel at 3840 x 2160 and 60 Hz.
02
20-Point Touch
0-gap infrared touch with 20 simultaneous touch points.
03
Android 11 Platform
MTK 9970A processor with 8 GB memory and 32 GB eMMC storage.
04
Wi-Fi Connectivity
Wi-Fi with 2G/5G/6G 2T2R support.
05
Contrast and Brightness
380 nits brightness with 1,200:1 typical and 500,000:1 dynamic contrast.
06
Built-in Audio
2 x 15 W speakers with 3.5 mm audio input and output.
07
Multiple Inputs
HDMI 2.0 x 3, USB 3.0 x 3, DVI-D and a USB-C input up to 65 W.
08
Network Control
RJ45, RS232C and IR control with lockable keyboard and remote.
Specifications
32 specificationsGeneral
Key Features4K UHD ADS panel, 20-point infrared touch, Android 11, 8 GB memory, built-in Wi-Fi (2G/5G/6G), 2 x 15 W speakers, 500,000:1 dynamic contrast, Smart Insert mounting
Model75BDL4052E/02
TypeInteractive Flat Panel
What's in the BoxRemote control with AAA batteries, HDMI cable (3 m), DVI-I cable (1.8 m), IR sensor cable (1.8 m), RS232 cable, RS232 daisy chain cable, 2 touch pens, cleaning cloth, quick start guide
Display
Aspect Ratio16:9
Brightness380 nits
Contrast Ratio1,200:1
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Points20-point multi-touch
Touch TechnologyInfrared
Viewing Angle178 degrees horizontal and vertical
Performance
Operating SystemAndroid 11
ProcessorMTK 9970A
RAM8 GB
Storage32 GB
Audio
Speaker Output2 x 15 W
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes
PortsHDMI 2.0 In × 3, HDMI 2.0 Out × 1, DVI-D In × 1, USB-C In (up to 65 W) × 1, USB 2.0 × 3, USB 3.0 × 3, USB-B × 3, OPS slot, RJ45, RS232C, IR, Audio In and Out (3.5 mm)
Wi-Fi2G/5G/6G 2T2R
Power
Power Consumption190 W (typical)
Standby Power< 0.5 W
Physical
Operating Humidity20% to 80% RH (no condensation)
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight55.85 kg
Compliance
CertificationsCE; FCC Class A; RoHS; CB; EAC; EMF; ETL
Warranty5 years
Downloads
Manufacturer documents for the Philips E-Line 4000 75-inch Interactive Flat Panel – 75BDL4052E/02 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Philips 75BDL4052E/02 used for?
It is a 75-inch interactive flat panel for classrooms, meeting rooms and training spaces. Its 4K UHD display, Android 11 platform and 20-point infrared touch support presentations and group work, and the manufacturer notes compatibility with educational software and programs.
Does the 75BDL4052E/02 have built-in Wi-Fi?
Yes. It supports Wi-Fi with 2G/5G/6G 2T2R, so it can connect to a wireless network. The RJ45 port adds a wired option for network control, and the MTK 9970A processor runs Android 11 with 8 GB memory.
Which video connections does the 75BDL4052E/02 have?
It has three HDMI 2.0 inputs, a DVI-D input, three USB 2.0 ports, three USB 3.0 ports and a USB-C input rated up to 65 W. An HDMI 2.0 output is also available for sending the picture to a second display.
Can the 75BDL4052E/02 be wall mounted?
Yes. It has a 600 x 400 mm wall mount pattern with M8 fixings, and it supports Smart Insert mounting with a 100 x 100 mm pattern. It weighs 55.85 kg, so the bracket and fixings should be rated for that load before installation.
How is the 75BDL4052E/02 controlled?
It has RJ45, RS232C and IR control, and its remote control and keyboard can be locked. RS232 and IR loop-through are supported, and an RS232 daisy chain cable is included for linking units.
