PhilipsInteractive Flat PanelsSKU 75BDL3052E/00

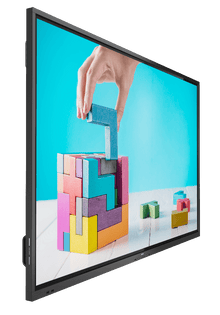

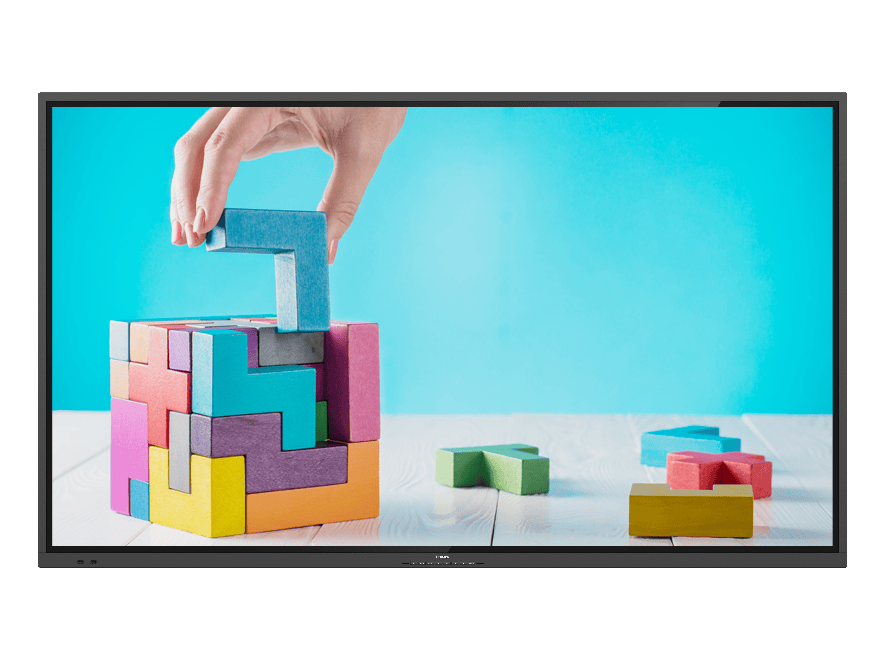

Philips E-Line 3000 75-inch Interactive Flat Panel – 75BDL3052E/00
The Philips 75BDL3052E/00 is a 75-inch 4K UHD interactive flat panel with 20-point infrared touch and Android 8.0. It suits classrooms, meeting rooms and training spaces that need a large shared touch screen on a 3840 x 2160 panel. Procure.ae supplies the Philips 75BDL3052E/00 as an authorised reseller across the UAE.
The 75BDL3052E/00 has a 74.5-inch diagonal ADS panel at 3840 x 2160 with 20 simultaneous touch points on 0-gap infrared touch. Brightness is rated at 380 nits, with a 1,200:1 typical contrast ratio and 178-degree viewing angles. The toughened anti-glare glass is rated 7 MOHS. Two 15 W speakers are built in, and the Android 8.0 platform has 3 GB DDR3 memory and 16 GB eMMC storage. Typical power consumption is 155 W.
The E-Line 3000 suits large classrooms, boardrooms and training rooms that need a wide touch surface. It has an OPS slot, Smart Insert mounting with a 100 x 100 mm pattern and a 600 x 400 mm wall mount with M8 fixings. Control is possible over RS232C, RJ45 or IR. The unit weighs 55.77 kg, so the mount and installation should be planned for that weight, and Procure.ae delivers and installs across the UAE.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
380 nits
Touch Technology
Infrared
- 4K UHD Display
- 20-Point Touch
- Anti-Glare Glass
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Display
75-inch ADS panel at 3840 x 2160 resolution and 60 Hz.
02
20-Point Touch
0-gap infrared touch with 20 simultaneous touch points.
03
Anti-Glare Glass
Toughened safety glass rated 7 MOHS with anti-glare protection.
04
Android 8.0 Platform
3 GB DDR3 memory and 16 GB eMMC storage.
05
Built-in Audio
2 x 15 W speakers with 3.5 mm audio input and output.
06
Flexible Inputs
HDMI 2.0 x 3, DVI-D, VGA, USB 2.0 x 4 and a USB-C input up to 65 W.
07
Network Control
RJ45, RS232C and IR control with lockable remote and keyboard.
08
Installation Options
Smart Insert mounting and a 600 x 400 mm wall mount with M8 fixings.
Specifications
31 specificationsGeneral
Key Features4K UHD ADS panel, 20-point infrared touch, Android 8.0, 2 x 15 W built-in speakers, OPS slot, USB-C input up to 65 W, Smart Insert mounting, anti-glare tempered glass rated 7 MOHS
Model75BDL3052E/00
TypeInteractive Flat Panel
What's in the BoxRemote control with AAA batteries, HDMI cable (3 m), USB A to B cable (3 m), RS232 cable, RS232 daisy chain cable, IR sensor cable (1.8 m), 2 touch pens, cleaning cloth, quick start guide
Display
Aspect Ratio16:9
Brightness380 nits
Contrast Ratio1,200:1
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Points20-point multi-touch
Touch TechnologyInfrared
Viewing Angle178 degrees horizontal and vertical
Performance
Operating SystemAndroid 8.0
ProcessorQuad-core (2 x A53 + 2 x A73)
RAM3 GB
Storage16 GB
Audio
Speaker Output2 x 15 W
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes
PortsHDMI 2.0 In × 3, DVI-D In × 1, VGA In × 1, USB-C In (up to 65 W) × 1, USB 2.0 × 4, USB-B × 3, OPS slot, RJ45, RS232C, IR, Audio In and Out (3.5 mm)
Power
Power Consumption155 W (typical)
Standby Power< 0.5 W
Physical
Operating Humidity20% to 80% RH (no condensation)
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight55.77 kg
Compliance
CertificationsCE; FCC Class A; RoHS; CB; EAC; EMF; ETL
Warranty5 years
Downloads
Manufacturer documents for the Philips E-Line 3000 75-inch Interactive Flat Panel – 75BDL3052E/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Philips 75BDL3052E/00 used for?
It is a 75-inch interactive flat panel for large classrooms, boardrooms and training rooms. Its 4K UHD display and 20-point infrared touch support group work, and Android 8.0 is built in, so content and apps can run on the panel itself.
Does the 75BDL3052E/00 support multi-touch?
Yes. It supports 20 simultaneous touch points using 0-gap infrared touch technology, so several people can interact at the same time. The toughened anti-glare glass is rated 7 MOHS and is made for heavy daily use in classrooms.
Which inputs does the 75BDL3052E/00 have?
It has three HDMI 2.0 inputs, a DVI-D input, a VGA input, four USB 2.0 ports and a USB-C input rated up to 65 W. USB-B ports and an OPS slot are also fitted, so laptops, PCs and other sources can be connected.
Can the 75BDL3052E/00 be wall mounted?
Yes. It has a 600 x 400 mm wall mount pattern with M8 fixings, and it supports Smart Insert mounting with a 100 x 100 mm pattern. The display weighs 55.77 kg, so the bracket and fixings must be rated for that load.
How is the 75BDL3052E/00 controlled over a network?
It has RJ45, RS232C and IR control ports, and its remote control and keyboard can be locked. RS232 and IR loop-through are supported, so several units can be linked for central control.
