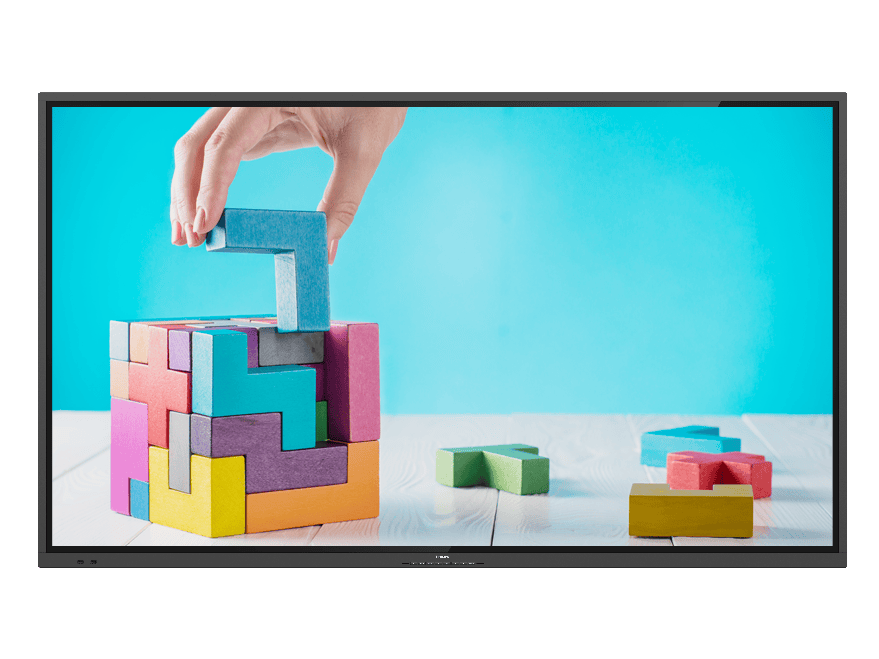

Philips E-Line 3000 75-inch Interactive Flat Panel – 75BDL3052E/00
The Philips 75BDL3052E/00 is a 75-inch 4K UHD interactive flat panel with 20-point infrared touch and Android 8.0. It suits classrooms, meeting rooms and training spaces that need a large shared touch screen on a 3840 x 2160 panel. Procure.ae supplies the Philips 75BDL3052E/00 as an authorised reseller across the UAE.
The 75BDL3052E/00 has a 74.5-inch diagonal ADS panel at 3840 x 2160 with 20 simultaneous touch points on 0-gap infrared touch. Brightness is rated at 380 nits, with a 1,200:1 typical contrast ratio and 178-degree viewing angles. The toughened anti-glare glass is rated 7 MOHS. Two 15 W speakers are built in, and the Android 8.0 platform has 3 GB DDR3 memory and 16 GB eMMC storage. Typical power consumption is 155 W.
The E-Line 3000 suits large classrooms, boardrooms and training rooms that need a wide touch surface. It has an OPS slot, Smart Insert mounting with a 100 x 100 mm pattern and a 600 x 400 mm wall mount with M8 fixings. Control is possible over RS232C, RJ45 or IR. The unit weighs 55.77 kg, so the mount and installation should be planned for that weight, and Procure.ae delivers and installs across the UAE.
Key features
Specifications
| Key Features | 4K UHD ADS panel, 20-point infrared touch, Android 8.0, 2 x 15 W built-in speakers, OPS slot, USB-C input up to 65 W, Smart Insert mounting, anti-glare tempered glass rated 7 MOHS |
| Model | 75BDL3052E/00 |
| Type | Interactive Flat Panel |
| What's in the Box | Remote control with AAA batteries, HDMI cable (3 m), USB A to B cable (3 m), RS232 cable, RS232 daisy chain cable, IR sensor cable (1.8 m), 2 touch pens, cleaning cloth, quick start guide |
| Aspect Ratio | 16:9 |
| Brightness | 380 nits |
| Contrast Ratio | 1,200:1 |
| Panel Technology | ADS |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 75 inch |
| Touch Points | 20-point multi-touch |
| Touch Technology | Infrared |
| Viewing Angle | 178 degrees horizontal and vertical |
| Operating System | Android 8.0 |
| Processor | Quad-core (2 x A53 + 2 x A73) |
| RAM | 3 GB |
| Storage | 16 GB |
| Speaker Output | 2 x 15 W |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| OPS Slot | Yes |
| Ports | HDMI 2.0 In × 3, DVI-D In × 1, VGA In × 1, USB-C In (up to 65 W) × 1, USB 2.0 × 4, USB-B × 3, OPS slot, RJ45, RS232C, IR, Audio In and Out (3.5 mm) |
| Power Consumption | 155 W (typical) |
| Standby Power | < 0.5 W |
| Operating Humidity | 20% to 80% RH (no condensation) |
| Operating Temperature | 0 to 40 °C |
| VESA Mount | 600 x 400 mm |
| Weight | 55.77 kg |
| Certifications | CE; FCC Class A; RoHS; CB; EAC; EMF; ETL |
| Warranty | 5 years |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
