PhilipsDigital SignageSKU 86BDL4511D/00

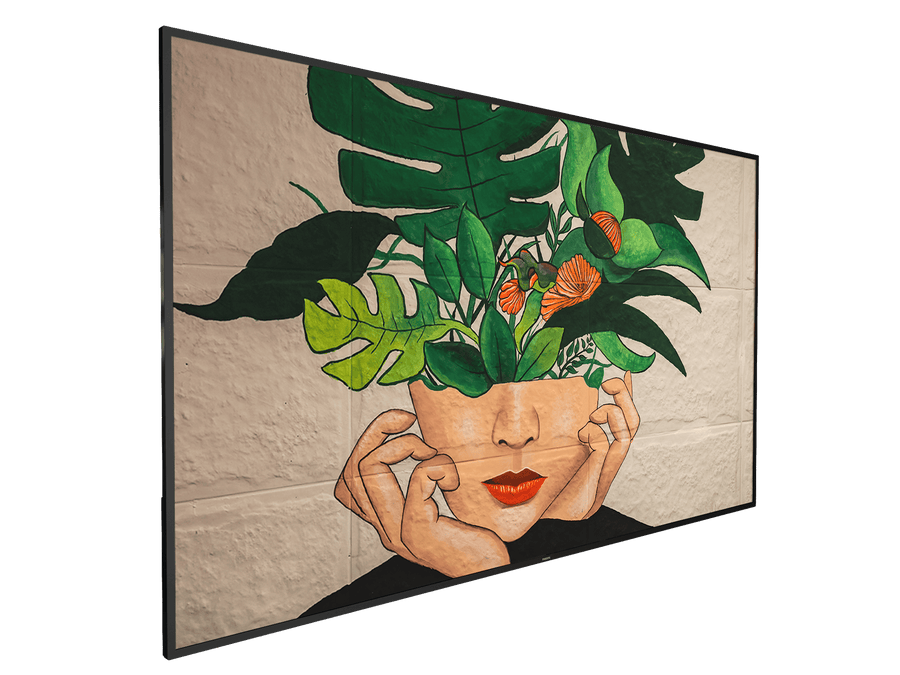

Philips D-Line 86-inch 4K UHD Digital Signage Display – 86BDL4511D/00
The Philips 86BDL4511D/00 is an 86-inch 4K UHD digital signage display for businesses, schools and venues that run content around the clock. It uses an IPS panel with 500 nits brightness and 178-degree viewing angles, supports landscape or portrait 24/7 operation and includes RS232C and RJ45 network control. Procure.ae supplies it across the UAE.
The 86BDL4511D/00 combines a 3840 x 2160 IPS panel with 500 nits typical brightness and a 1,200:1 typical contrast ratio. Its 8 ms typical response time and 178-degree horizontal and vertical viewing angles keep content readable from across a room. Pixel Shift and Low Bright screen-saving functions are included, and Smart Power is the listed energy-saving function. Two 10 W RMS speakers are built in, and the display carries a 3-year warranty.
Use it for lobbies, showrooms, control rooms, corridors and meeting areas where one large screen must carry signage, menus or information loops. An OPS slot is included, and RS232C, RJ45 and IR connections allow control from a central system. Mounting uses a 600 x 400 mm VESA pattern with M8 fixings. Compared with the 86BDL4550D/00, this model does not list built-in Wi-Fi or an Android operating system.
Screen Size
85.6 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD IPS panel
- Brightness and contrast
- Viewing angles
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD IPS panel
3840 x 2160 resolution with 1.07 billion display colours.
02
Brightness and contrast
500 nits typical brightness and 1,200:1 typical contrast ratio.
03
Viewing angles
178 degrees horizontal and 178 degrees vertical.
04
Response time
8 ms typical response time for moving content.
05
Network control
RJ45 and RS232C in and out, plus IR in and out.
06
24/7 operation
Landscape or portrait placement, rated for 24/7 use, with Smart Power.
07
Screen protection
Pixel Shift and Low Bright screen-saving functions.
08
Wall mounting
600 x 400 mm VESA pattern with M8 fixings.
Specifications
27 specificationsGeneral
Key FeaturesPixel Shift, Low Bright, Smart Power, 24/7 landscape or portrait, OPS slot, lockable keyboard control
Model86BDL4511D/00
TypeDigital Signage Display
What's in the BoxRemote control with AAA batteries, RS232 cable, IR sensor cable, AC power cord, quick start guide
Display
Aspect Ratio16:9
Bezel Size15.5 mm (even bezel)
Brightness500 nits
Color Depth1.07 billion colours
Contrast Ratio1,200:1 (typical)
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size85.6 inch
Viewing Angle178° horizontal / 178° vertical
Audio
Speaker Output2 x 10 W RMS
Connectivity
ConnectivityOPS slot, RJ45 and RS232C network control
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 In × 3, DisplayPort 1.2 In × 1, DVI-I In × 1, USB 2.0 × 2, RJ45, RS232C, IR
Power
Power Consumption355 W (typical)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight50.24 kg
Compliance
CertificationsCE, FCC Class A, CCC, RoHS, CB, ETL, EAC, VCCI, BSMI
Warranty3 years
Downloads
Manufacturer documents for the Philips D-Line 86-inch 4K UHD Digital Signage Display – 86BDL4511D/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Philips 86BDL4511D/00?
It is an 86-inch 4K UHD digital signage display from the Philips D-Line range, built for continuous commercial use. The manufacturer lists a 3840 x 2160 IPS panel, 500 nits typical brightness, an OPS slot and RS232C and RJ45 network control, so it suits lobbies, showrooms and meeting areas.
Can it run in portrait orientation?
Yes. The manufacturer lists both landscape and portrait placement for 24/7 operation. Pixel Shift and Low Bright screen-saving functions are included, and Smart Power is the listed energy-saving function for the display.
How is it controlled from a central system?
It supports RS232C and RJ45 network control, with RS232C in and out ports for daisy-chaining several displays. IR in and out is also provided, and keyboard control can be hidden or locked. A remote control and RS232 cables are included with the display.
What wall mount does it need?
The display uses a 600 x 400 mm VESA pattern with M8 fixings. Procure.ae can advise on a suitable wall mount and arrange delivery and installation across the UAE, so mounting can be planned before the display arrives on site.
Does it include built-in Wi-Fi or an Android system?
The manufacturer's specifications do not list built-in Wi-Fi or an operating system for this model. Content can be fed from a media player through its HDMI 2.0, DisplayPort 1.2 or DVI-I inputs, or through the OPS slot.
