PhilipsDigital SignageSKU 65BDL4550D/00

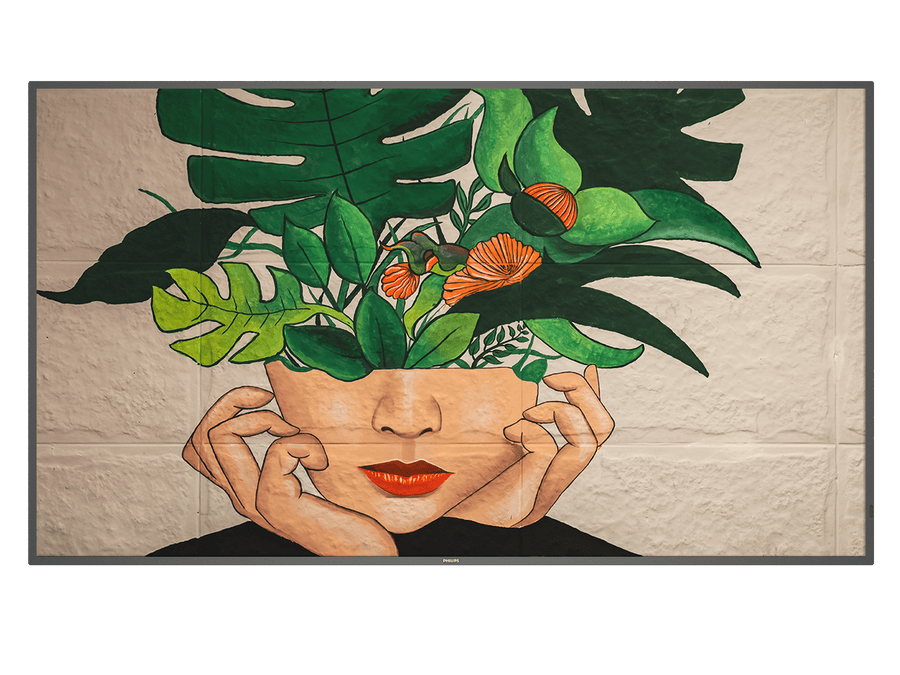

Philips D-Line 65-inch 4K UHD Digital Signage Display – 65BDL4550D/00
The Philips 65BDL4550D/00 is a 65-inch 4K UHD D-Line digital signage display with integrated dual-band Wi-Fi, for lobbies, meeting rooms and retail spaces. It has 500 nits brightness, 3840 x 2160 resolution, Android 8.0 and an OPS slot. Procure.ae supplies the 65BDL4550D/00 across the UAE.
The 65BDL4550D/00 has a 3840 x 2160 ADS panel with 500 nits brightness, 1200:1 typical contrast, 500,000:1 dynamic contrast and 178-degree viewing angles. Its processor has two A53 and two A73 cores with 3 GB memory and 32 GB eMMC storage, and it runs Android 8.0 for signage apps. Picture enhancement includes progressive scan, 3D comb filtering and motion compensated deinterlacing. Two 10 W RMS speakers provide built-in audio.
Use it in reception areas, meeting rooms and lobbies where the display needs built-in Wi-Fi and Android apps. The integrated Wi-Fi supports 802.11 a/b/g/n and 802.1x, and 4G/LTE antenna connectors are listed for mPCIe modules. Inputs include three HDMI 2.0 ports, DisplayPort 1.2, DVI-I and two USB 2.0 ports, with HDMI and DisplayPort outputs. Tiling supports up to 10 x 15 displays. Compared with the 65BDL4511D, this model adds integrated Wi-Fi.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD ADS panel
- Integrated Wi-Fi
- Android 8.0 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD ADS panel
3840 x 2160 resolution with 1.07 billion colours.
02
Integrated Wi-Fi
Dual-band 2.4 GHz and 5 GHz wireless connectivity.
03
Android 8.0 platform
Processor with two A53 and two A73 cores.
04
Memory and storage
3 GB memory with 32 GB eMMC storage.
05
Video wall tiling
Tiled matrix of up to 10 x 15 displays.
06
Multiple video inputs
Three HDMI 2.0 inputs, DisplayPort 1.2 and DVI-I.
07
Built-in audio
2 x 10 W RMS speakers with 3.5 mm audio in and out.
08
Three-year warranty
Manufacturer warranty of 3 years.
Specifications
32 specificationsGeneral
Key FeaturesIntegrated Wi-Fi, Android 8.0, 3840 x 2160, 500 nits, 10 x 15 tiling, OPS slot, 2 x 10 W speakers, 3-year warranty
Model65BDL4550D/00
TypeDigital Signage Display
What's in the BoxAC power cord, RS232 cable, RS232 daisy-chain cable, IR sensor cable, remote control and AAA batteries, quick start guide
Display
Aspect Ratio16:9
Brightness500 nits
Contrast Ratio1,200:1
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Viewing Angle178° horizontal / 178° vertical
Performance
GraphicsARM Mali G51
Operating SystemAndroid 8.0
ProcessorQuad-core (2 x A53 + 2 x A73)
RAM3 GB
Storage32 GB
Audio
Speaker Output2 x 10 W RMS
Connectivity
Cellular4G/LTE antenna connectors (mPCIe)
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes
PortsInputs: HDMI 2.0 × 3, DisplayPort 1.2 × 1, DVI-I × 1, USB 2.0 × 2. Outputs: HDMI 2.0 × 1, DisplayPort 1.2 × 1
Wi-FiDual-band 2.4 GHz and 5 GHz (802.11 a/b/g/n, 802.1x)
Power
Power Consumption179 W (typical), 309 W (max)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight28.1 kg
Compliance
CertificationsCB; CE; BSMI; CCC; FCC Class A; RoHS; VCCI; EnergyStar 8.0; ETL; EAC
Warranty3 years
Downloads
Manufacturer documents for the Philips D-Line 65-inch 4K UHD Digital Signage Display – 65BDL4550D/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Philips 65BDL4550D/00 used for?
The 65BDL4550D/00 is a 65-inch 4K UHD D-Line digital signage display with integrated Wi-Fi, for lobbies, reception areas and meeting rooms. Its Android 8.0 platform runs signage apps, and it lists 500 nits brightness, 3840 x 2160 resolution and an OPS slot.
Does it have built-in Wi-Fi?
Yes. The manufacturer lists integrated dual-band Wi-Fi on 2.4 GHz and 5 GHz, with 802.11 a/b/g/n and 802.1x support. It also lists 4G/LTE antenna connectors for mPCIe modules. Confirm with your installer which connection your network requires.
Can it be wall mounted or used in a video wall?
Yes. It has a 400 x 400 mm VESA pattern with M8 fixings and a tiled matrix of up to 10 x 15 displays. It weighs 28.1 kg, so use a wall mount rated for that load and confirm the fixings with your installer.
Which inputs and outputs does it have?
Inputs are three HDMI 2.0, one DisplayPort 1.2, one DVI-I and two USB 2.0 ports, with an OPS slot. Outputs are one HDMI 2.0 and one DisplayPort 1.2. Audio uses 3.5 mm jacks, and control uses RS232C, IR and RJ45.
What is its power consumption?
The manufacturer lists typical consumption of 179 W and maximum consumption of 309 W, with standby power below 0.5 W. It runs on 100-240 V AC at 50/60 Hz and includes Smart Power energy-saving functions.
