PhilipsDigital SignageSKU 55BDL4550D/00

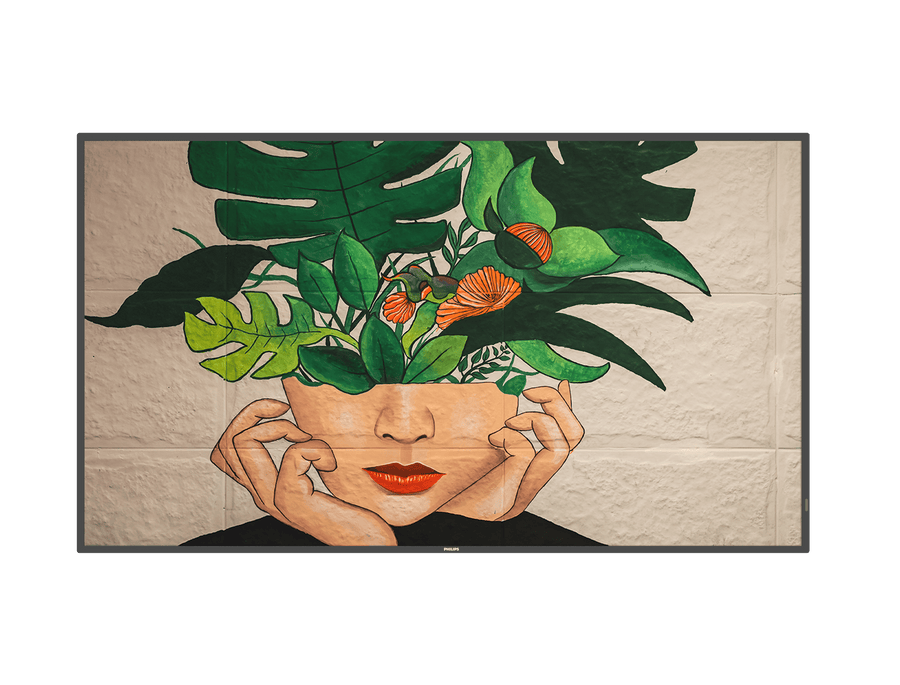

Philips D-Line 55-inch 4K UHD Android Digital Signage Display – 55BDL4550D/00
The Philips 55BDL4550D/00 is a 55-inch 4K UHD Android digital signage display for lobbies, corporate reception and retail. It runs Android 8.0 with 3 GB RAM, 32 GB eMMC storage and dual-band Wi-Fi, on a VA panel rated at 500 nits. Procure.ae supplies the Philips 55BDL4550D/00 across the UAE.
The 55BDL4550D/00 has a 3840 x 2160 VA panel with 178-degree viewing angles, 500 nits brightness, a 5,000:1 typical contrast ratio and an 8 ms typical response time. It runs 4K at 60 Hz with 1.07 billion colours. The Android 8.0 platform uses 2 × Cortex-A53 and 2 × Cortex-A73 processors with ARM Mali G51 graphics, 3 GB RAM and 32 GB eMMC storage. Dual-band Wi-Fi on 2.4 GHz and 5 GHz is built in, and two 10 W RMS speakers are included.
The 55BDL4550D/00 suits lobbies, corporate reception areas, retail floors and multi-screen installations that need wireless connectivity. The manufacturer describes it as designed for running Android apps. It tiles into matrices of up to 10 x 15 displays, and it has an mPCIe slot for 4G/LTE antenna connectors. Its DisplayPort 1.2 and HDMI 2.0 outputs allow a second display, and RJ45 and RS232C control support central management.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- Android 8.0 platform
- Built-in Wi-Fi
- 4G/LTE option
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 8.0 platform
Runs Android apps with 3 GB RAM and 32 GB eMMC storage.
02
Built-in Wi-Fi
Dual-band 2.4 GHz and 5 GHz with 802.11 a/b/g/n and 802.1x support.
03
4G/LTE option
mPCIe connectors for 4G/LTE antenna connections.
04
Ultra HD 4K panel
A 3840 x 2160 VA panel with 500 nits brightness and 5,000:1 typical contrast.
05
Tiled display support
Tiled matrix of up to 10 x 15 displays for large video walls.
06
Screen protection
Pixel shift and low bright functions help reduce image retention.
07
Network control
RJ45 and RS232C in and out, plus IR input and output.
08
Video output
DisplayPort 1.2 and HDMI 2.0 outputs for a second display.
Specifications
34 specificationsGeneral
Key FeaturesAndroid 8.0, built-in dual-band Wi-Fi, mPCIe for 4G/LTE, tiled matrix up to 10 x 15, pixel shift and low bright, DisplayPort and HDMI output, RS232C and RJ45 control
Model55BDL4550D/00
TypeDigital Signage Display
What's in the BoxRS232 daisy-chain cable, RS232 cable, AC power cord, AC switch cover, IR sensor cable (1.8 m), remote control with AAA batteries, quick start guide, USB cover, screws
Display
Aspect Ratio16:9
Bezel Size13.9 mm (even bezel)
Brightness500 nits
Color Depth1.07 billion colours
Contrast Ratio5,000:1
OrientationLandscape and portrait (24/7)
Panel TechnologyVA
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° horizontal and vertical
Performance
GraphicsARM Mali G51
Operating SystemAndroid 8.0
Processor2 × Cortex-A53 + 2 × Cortex-A73
RAM3 GB
Storage32 GB eMMC
Audio
Speaker Output2 × 10 W RMS built-in speakers
Connectivity
Input Voltage100–240 V AC, 50–60 Hz
OutputsDisplayPort 1.2 × 1, HDMI 2.0 × 1
PortsDisplayPort 1.2 × 1, DVI-I × 1, HDMI 2.0 × 2, USB 2.0 × 2, RJ45, RS232C (in/out), IR (in/out), 3.5 mm audio in/out, mPCIe for 4G/LTE
Wi-FiDual-band 2.4 GHz and 5 GHz, 802.11 a/b/g/n, 802.1x
Power
Power Consumption178 W (typical), 218 W (max)
Standby Power0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight16.6 kg
Compliance
CertificationsCE, RoHS, BSMI, CB, FCC Class A, PSB, VCCI, CCC, CU, EMF, ETL
Warranty3 years
Downloads
Manufacturer documents for the Philips D-Line 55-inch 4K UHD Android Digital Signage Display – 55BDL4550D/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the 55BDL4550D/00 have built-in Wi-Fi?
Yes. The manufacturer lists dual-band Wi-Fi on 2.4 GHz and 5 GHz, with 802.11 a/b/g/n and 802.1x support. This allows the display to connect to a wireless network without a separate adapter.
Can the 55BDL4550D/00 connect to a 4G or LTE network?
The manufacturer lists mPCIe 4G/LTE antenna connectors. A compatible 4G/LTE module is not included in the specifications, so confirm the module and antenna requirements with Procure.ae before ordering. Antenna requirements depend on the module chosen.
Which operating system does the 55BDL4550D/00 use?
The manufacturer lists Android 8.0, with 3 GB RAM and 32 GB eMMC storage. The display is described as designed for running Android apps. Confirm the app requirements with Procure.ae before deployment.
Can the 55BDL4550D/00 be mounted in portrait orientation?
Yes. The manufacturer lists landscape and portrait placement at 24/7 operation. Use the 400 x 400 mm M6 wall mount pattern and check the bracket is rated for the 16.6 kg weight.
Can it be used in a video wall?
Yes. The manufacturer rates the tiled matrix at up to 10 x 15 displays. RS232C network control lets each screen be managed from a central system. Each screen can be addressed individually over the RS232C network control listed for this model.
