PhilipsDigital SignageSKU 75BDL5050D/00

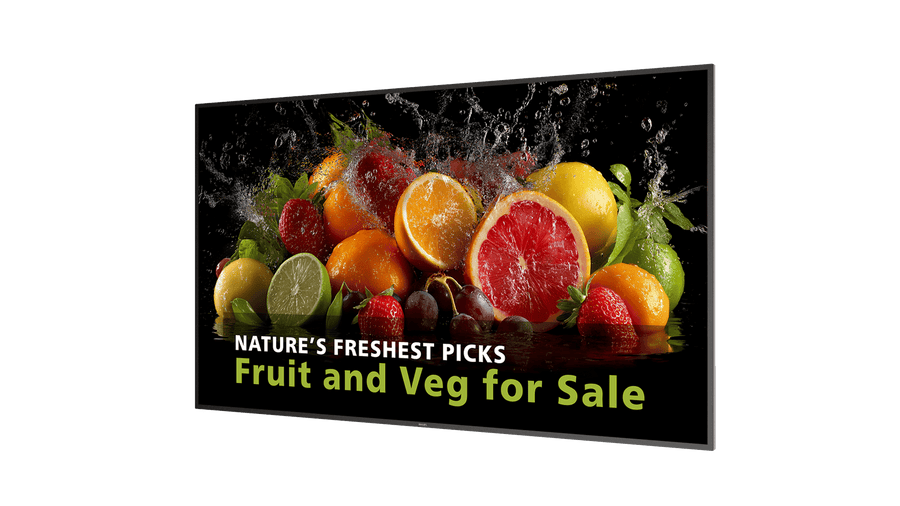

Philips 75-inch 5000 Series 4K UHD Digital Signage Display – 75BDL5050D/00
The Philips 75BDL5050D/00 is a 74.5-inch 4K UHD digital signage display from the 5000 Series, running Android 14 for 24/7 use. It delivers 600 nits brightness, 3840 x 2160 resolution and an IP5X ingress rating, with Wi-Fi 6 and Bluetooth 5.2 via an included CRD32 module. Procure.ae supplies it across the UAE, with delivery and installation.
The 75BDL5050D/00 uses a 3840 x 2160 ADS panel rated at 600 cd/m² brightness, with 1,200:1 typical contrast and an 8 ms typical response time. Its 178-degree viewing angles and 16:9 aspect ratio suit wall-mounted installations. Android 14 runs on a 4 x Cortex-A72 and 4 x Cortex-A53 processor, with 4 GB RAM and 32 GB storage. The unit carries an IP5X ingress protection rating, and 2 x 10 W RMS built-in speakers cover announcements.
Connect sources through DisplayPort 1.4, two HDMI 2.0 inputs or USB-C with 4.5 W power delivery, and feed a second display from the HDMI output. The CRD32 Wi-Fi 6 and Bluetooth 5.2 module is included, and RJ45, RS232C and IR ports allow remote management. A 4G mPCIe slot takes a cellular module. The 600 x 400 mm VESA pattern fits standard wall mounts, and tiling up to 10 x 15 is listed for multi-screen walls.
Screen Size
74.5 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
600 nits
Type
Digital Signage Display
- Android 14 platform
- 4K UHD ADS panel
- High brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 14 platform
Android 14 on a 4 x Cortex-A72 and 4 x Cortex-A53 processor.
02
4K UHD ADS panel
3840 x 2160 resolution on a 74.5-inch 16:9 screen.
03
High brightness
600 cd/m² brightness with 1,200:1 typical contrast.
04
Wi-Fi 6 and Bluetooth
Wi-Fi 6 and Bluetooth 5.2 through the included CRD32 module.
05
IP5X ingress protection
Rated IP5X for ingress protection.
06
Tiling and cellular
Tiling up to 10 x 15 and a 4G mPCIe slot.
07
Remote management
RJ45, RS232C and IR in and out for remote control.
08
Always-on operation
Landscape or portrait placement rated for 24/7 use.
Specifications
32 specificationsGeneral
Key FeaturesAndroid 14, Wi-Fi 6 and Bluetooth 5.2 via CRD32 module, IP5X rating, 600 nits, tiling up to 10 x 15, 4G mPCIe slot, Smart Power
Model75BDL5050D/00
TypeDigital Signage Display
What's in the BoxRemote control with AAA batteries, RS232 cables, CRD32 Wi-Fi and Bluetooth module, AC power cord, IR sensor cable, quick start guide
Display
Aspect Ratio16:9
Brightness600 nits
Color Depth1.07 billion colours
Contrast Ratio1,200:1
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size74.5 inch
Viewing Angle178° horizontal, 178° vertical
Performance
GraphicsARM Mali G52 MC3
Operating SystemAndroid 14
Processor4 x Cortex-A72 + 4 x Cortex-A53
RAM4 GB
Storage32 GB
Audio
Speaker Output2 x 10 W RMS
Connectivity
BluetoothBluetooth 5.2 (CRD32 module, included)
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort 1.4 In × 1, HDMI 2.0 In × 2, USB-C In × 1 (4.5 W), HDMI Out × 1, USB 3.0 × 2, Micro USB (OTG) × 1, RJ45, RS232C, 4G mPCIe slot
Wi-FiWi-Fi 6 (CRD32 module, included)
Power
Power Consumption112 W (EEI Lot 5)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight37 kg
Compliance
IP RatingIP5X
Warranty3 years
Downloads
Manufacturer documents for the Philips 75-inch 5000 Series 4K UHD Digital Signage Display – 75BDL5050D/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the 75BDL5050D/00 a 4K display?
Yes. The 75BDL5050D/00 has a 3840 x 2160 panel on a 74.5-inch 16:9 ADS screen. It is rated at 600 cd/m² brightness, 1,200:1 typical contrast and an 8 ms typical response time, with 60 Hz as the optimum refresh rate.
Does the 75BDL5050D/00 support Android apps?
Yes. It runs Android 14 on a 4 x Cortex-A72 and 4 x Cortex-A53 processor, with 4 GB RAM and 32 GB storage. The product page describes it as powered by Android 14 for smooth integrations.
Does it have Wi-Fi and Bluetooth?
Yes, through the CRD32 module that is included with the display. It provides Wi-Fi 6 and Bluetooth 5.2. The display also has an RJ45 port for wired networking and a 4G mPCIe slot for a cellular module.
Can the 75BDL5050D/00 be used in a dusty area?
The manufacturer rates it IP5X for ingress protection, with an operating temperature range of 0 to 40 °C and 20% to 80% RH operating humidity. Check these ratings against your site conditions, or ask Procure.ae to confirm suitability before installing.
How is the 75BDL5050D/00 mounted?
It uses a 600 x 400 mm VESA pattern with M8 fixings, and the listed weight is 37 kg. Use a wall bracket rated for that weight and have a qualified installer fit it. Procure.ae can arrange installation across the UAE.
Can I buy the 75BDL5050D/00 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
