PhilipsDigital SignageSKU 32BDL3511Q/00

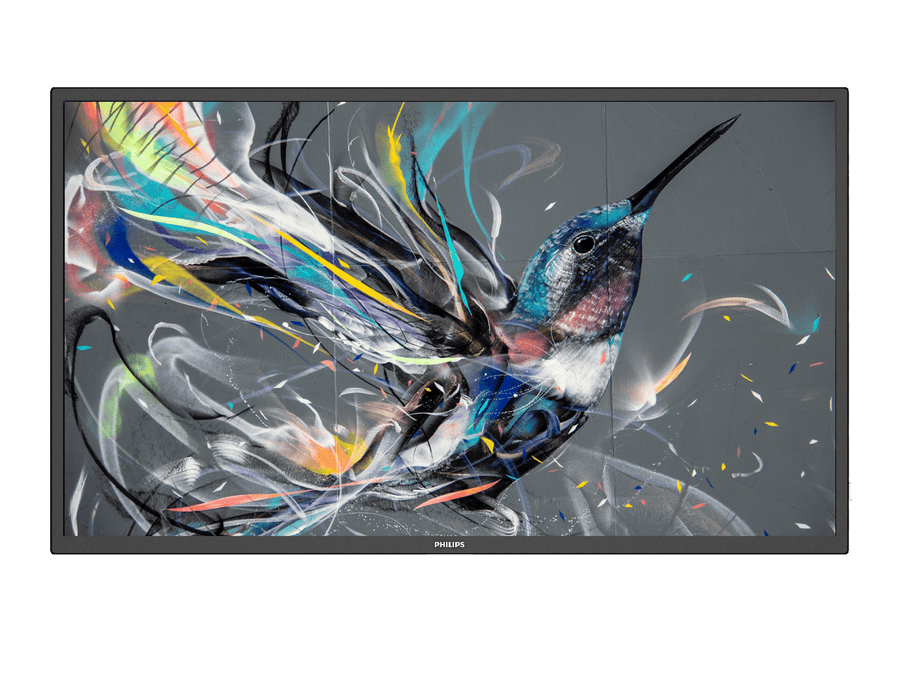

Philips 32-inch Q-Line Full HD Digital Signage Display – 32BDL3511Q/00
The Philips 32BDL3511Q/00 is a 32-inch Full HD digital signage display from the Q-Line 3000 series, built for menu boards, wayfinding and information screens. It offers a 350 nits VA panel, 4,000:1 typical contrast and a 16:9 aspect ratio. Procure.ae supplies this Philips signage display in the UAE with delivery and installation.
The 32BDL3511Q/00 combines a 1920 x 1080 VA panel at 60 Hz with 350 nits brightness and 4,000:1 typical contrast. Viewing angles are 178 degrees horizontal and vertical, and the typical response time is 6.5 ms. The panel displays 16.7 million colours. Power consumption is 45 W typical and 65 W maximum, with standby power below 0.5 W under Smart Power. Two 10 W RMS speakers are built in.
The display fits menu boards, wayfinding and information screens in offices, schools and retail spaces, mounted in landscape or portrait. It can be tiled in a matrix of up to 10 x 15 displays for larger walls. Control is available through RS232C, RJ45 LAN and IR, with an RS232 daisy-chain cable and IR sensor cable included. The 100 x 100 mm and 200 x 200 mm VESA patterns support wall or stand mounting.
Screen Size
32 inch
Resolution
1920 x 1080 (Full HD)
Brightness
350 nits
Type
Digital Signage Display
- Full HD resolution
- Tiled matrix
- Contrast and viewing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD resolution
1920 x 1080 VA panel at 60 Hz with 350 nits brightness.
02
Tiled matrix
Supports tiled layouts of up to 10 x 15 displays.
03
Contrast and viewing
4,000:1 typical contrast and 178-degree viewing angles.
04
Fast response
6.5 ms typical response time.
05
Multi-input connectivity
HDMI 2.0 × 2, DVI-I and USB 2.0 × 2.
06
Network control
RS232C and RJ45 LAN control, plus IR in/out.
07
Built-in audio
2 x 10 W RMS speakers with 3.5 mm audio input and output.
08
Energy saving
Smart Power with standby power below 0.5 W.
Specifications
27 specificationsGeneral
Key FeaturesQ-Line professional Full HD, VA panel, Smart Power, tiled matrix up to 10 x 15, RS232 and RJ45 control, built-in 2 x 10 W speakers, portrait or landscape
Model32BDL3511Q/00
TypeDigital Signage Display
What's in the BoxAC power cord, AC switch cover, IR sensor cable, remote control and AAA batteries, RS232 daisy-chain cable, USB cover and screw, wire clamper, quick start guide
Display
Aspect Ratio16:9
Bezel Size11.9 mm (top, left, right) / 17.2 mm (bottom)
Brightness350 nits
Color Depth16.7 million colours
Contrast Ratio4,000:1
OrientationLandscape or portrait (18/7)
Panel TechnologyVA
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time6.5 ms
Screen Size32 inch
Viewing Angle178° horizontal / 178° vertical
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 × 2, DVI-I × 1, USB 2.0 × 2, RJ45 × 1, RS232C in/out × 1, IR in/out × 1, 3.5 mm audio in/out
Power
Power Consumption45 W (typical), 65 W (max)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount100 x 100 mm, 200 x 200 mm
Weight5.7 kg
Compliance
CertificationsCE, FCC Class A, CB, EMF, VCCI, PSB, CU, ETL
Warranty3 years
Downloads
Manufacturer documents for the Philips 32-inch Q-Line Full HD Digital Signage Display – 32BDL3511Q/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the 32BDL3511Q/00 suitable for wayfinding and menu displays?
Yes. It is a Q-Line Full HD display with a 1920 x 1080 VA panel, 350 nits brightness and 4,000:1 typical contrast. It supports landscape or portrait placement, so it can show menus or wayfinding content in either orientation.
What resolution and panel type does it use?
It supports 1920 x 1080 (Full HD) at 60 Hz on a VA panel with a 16:9 aspect ratio. Viewing angles are 178 degrees horizontal and vertical, and the typical response time is 6.5 ms.
Can it be wall-mounted or tiled into a video wall?
Yes. It has VESA mounts at 100 x 100 mm and 200 x 200 mm (M4), and it supports tiled matrix layouts of up to 10 x 15 displays. The display weighs 5.7 kg.
Which control and integration options does it have?
It supports RS232C control with in/out ports, RJ45 LAN network control and IR in/out. An RS232 daisy-chain cable and an IR sensor cable are included for linking several displays. Quotes and project advice are available from Procure.ae via WhatsApp or email.
Can I buy the 32BDL3511Q/00 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
