PhilipsDigital SignageSKU 32BDL3510Q/00

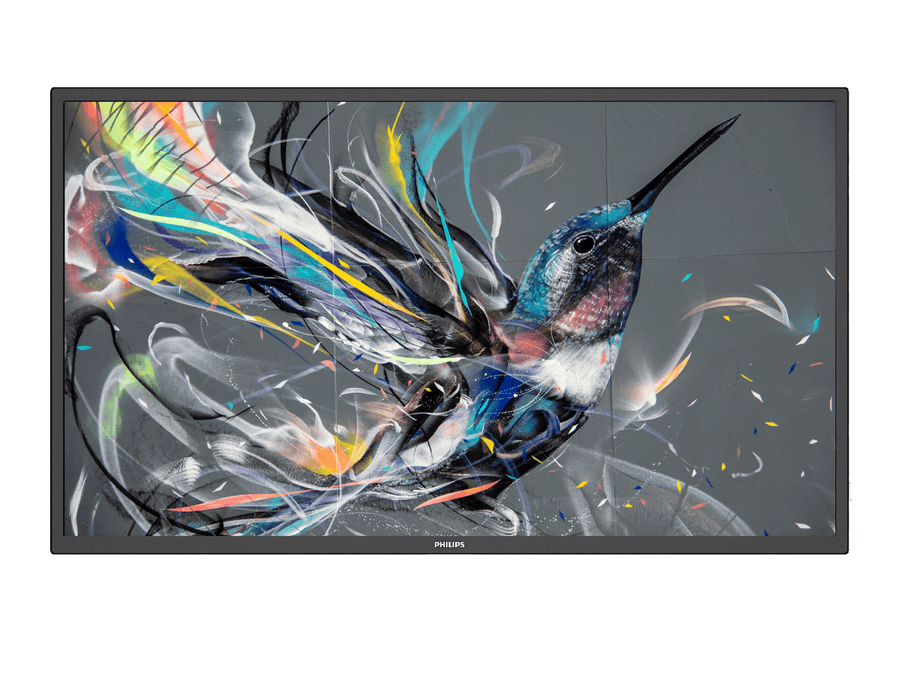

Philips 32-inch Q-Line Full HD Digital Signage Display – 32BDL3510Q/00
The Philips 32BDL3510Q/00 is a 32-inch Full HD digital signage display from the Q-Line 3000 series, designed for reception areas, menu boards and information points. It offers a 350 nits VA panel, 4,000:1 typical contrast and built-in 2 x 10 W speakers. Procure.ae supplies this Philips signage display in the UAE with delivery and installation.
The 32BDL3510Q/00 uses a 1920 x 1080 VA panel at 60 Hz, with 350 nits brightness, 4,000:1 typical contrast and 178-degree horizontal and vertical viewing angles. The typical response time is 6.5 ms and the panel shows 16.7 million colours. Smart Power is included, with 40 W typical and 65 W maximum power consumption and standby power below 0.5 W. Two 10 W RMS speakers are built in.
The display suits reception areas, menu boards, corridors and information points in offices, schools and retail spaces. It supports landscape or portrait placement and can be tiled in a matrix of up to 15 x 15 displays for video walls. Control is available through RS232C, RJ45 LAN and IR, and the RS232 daisy-chain and IR sensor cables are included. VESA mounting uses 100 x 100 mm or 200 x 200 mm patterns.
Screen Size
32 inch
Resolution
1920 x 1080 (Full HD)
Brightness
350 nits
Type
Digital Signage Display
- Full HD resolution
- Tiled matrix
- Contrast and colour
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD resolution
1920 x 1080 VA panel at 60 Hz with 350 nits brightness.
02
Tiled matrix
Supports tiled video walls of up to 15 x 15 displays.
03
Contrast and colour
4,000:1 typical contrast and 16.7 million colours.
04
Fast response
6.5 ms typical response time.
05
Multi-input connectivity
HDMI 2.0 × 2, DVI-I and USB 2.0 × 2.
06
Network control
RS232C and RJ45 LAN control, plus IR in/out.
07
Built-in audio
2 x 10 W RMS speakers with 3.5 mm audio input and output.
08
Energy saving
Smart Power with standby power below 0.5 W.
Specifications
27 specificationsGeneral
Key FeaturesQ-Line professional Full HD, VA panel, Smart Power, tiled matrix up to 15 x 15, RS232 and RJ45 control, built-in 2 x 10 W speakers, portrait or landscape
Model32BDL3510Q/00
TypeDigital Signage Display
What's in the BoxAC power cord, RS232 cable, remote control and batteries, IR sensor cable, RS232 daisy-chain cable, USB cover and screws, quick start guide
Display
Aspect Ratio16:9
Bezel Size11.9 mm (top, left, right) / 17.2 mm (bottom)
Brightness350 nits
Color Depth16.7 million colours
Contrast Ratio4,000:1
OrientationLandscape or portrait
Panel TechnologyVA
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time6.5 ms
Screen Size32 inch
Viewing Angle178° horizontal / 178° vertical
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 × 2, DVI-I × 1, USB 2.0 × 2, RJ45 × 1, RS232C in/out × 1, IR in/out × 1, 3.5 mm audio in/out
Power
Power Consumption40 W (typical), 65 W (max)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount100 x 100 mm, 200 x 200 mm
Weight5.31 kg
Compliance
CertificationsCB, CE, BSMI, CU, EPA, ETL, FCC Class A, VCCI
Warranty3 years
Downloads
Manufacturer documents for the Philips 32-inch Q-Line Full HD Digital Signage Display – 32BDL3510Q/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the 32BDL3510Q/00 suitable for menu boards and information displays?
Yes. It is a Q-Line Full HD display with a 1920 x 1080 VA panel, 350 nits brightness and 4,000:1 typical contrast. It supports landscape or portrait placement, so it can be mounted for menu and information content in either orientation.
What resolution and panel type does it use?
It supports 1920 x 1080 (Full HD) at 60 Hz on a VA panel with a 16:9 aspect ratio. Viewing angles are 178 degrees horizontal and vertical, and the typical response time is 6.5 ms.
Can it be wall-mounted or tiled into a video wall?
Yes. It has VESA mounts at 100 x 100 mm and 200 x 200 mm (M4), and the Q-Line range supports tiled matrix layouts of up to 15 x 15 displays. The display weighs 5.31 kg.
Which control and integration options does it have?
It supports RS232C control with in/out ports, RJ45 LAN network control and IR in/out. An RS232 daisy-chain cable and an IR sensor cable are included for connecting several displays. Quotes and project advice are available from Procure.ae via WhatsApp or email.
