PhilipsDigital SignageSKU 32BDL3550Q/00

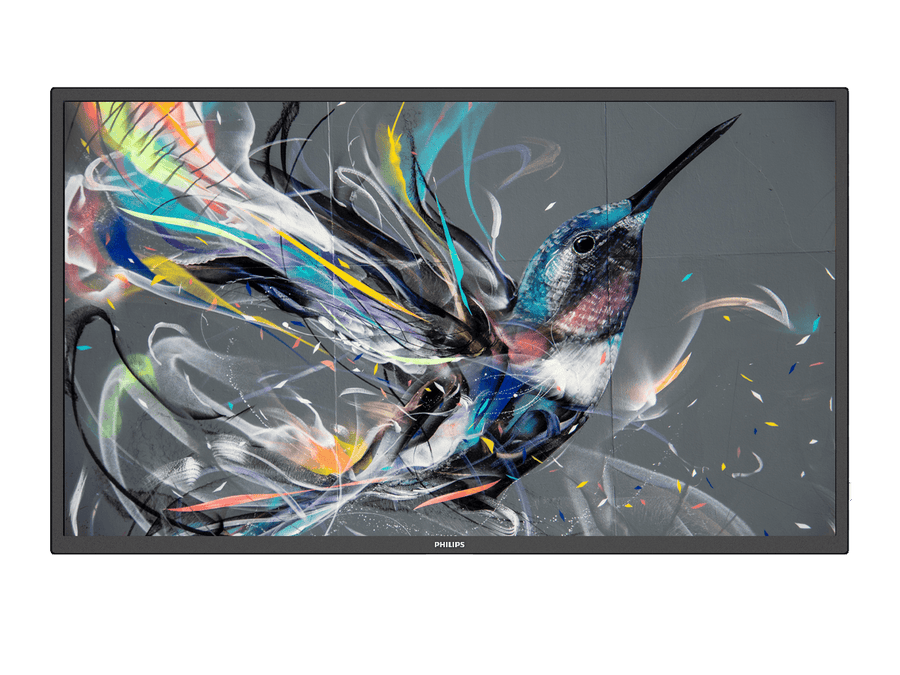

Philips 32-inch Q-Line Android Full HD Digital Signage Display – 32BDL3550Q/00
The Philips 32BDL3550Q/00 is a 32-inch Full HD Android digital signage display from the Q-Line 3000 series, designed for content playback in reception areas, menu boards and information points. It runs Android 8.0 with 2 GB RAM and 8 GB storage, and offers a 350 nits VA panel. Procure.ae supplies it in the UAE with delivery and installation.
The 32BDL3550Q/00 runs Android 8.0 on a dual-core Cortex-A53 1.1 GHz and dual-core Cortex-A73 1.15 GHz processor with an ARM Mali-G51 graphics unit, 2 GB RAM and 8 GB storage. The 1920 x 1080 VA panel delivers 350 nits brightness, 4,000:1 typical contrast and 178-degree viewing angles, with an 8 ms typical response time. Power consumption is 50 W typical and 80 W maximum. Two 10 W RMS speakers are built in.
It suits reception areas, menu boards and information points where content is managed on the display itself, and it can be mounted in landscape or portrait. Up to 15 x 15 displays can be tiled for video walls. Network control runs over RS232C and RJ45 LAN, with IR in/out for remote sensors. The 100 x 100 mm and 200 x 200 mm VESA patterns support wall or stand mounting. Free training and support are available from Procure.ae.
Screen Size
32 inch
Resolution
1920 x 1080 (Full HD)
Brightness
350 nits
Type
Digital Signage Display
- Android platform
- Full HD resolution
- Processing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android platform
Runs Android 8.0 for on-display content playback.
02
Full HD resolution
1920 x 1080 VA panel at 60 Hz with 350 nits brightness.
03
Processing
Dual-core Cortex-A53 and dual-core Cortex-A73 processors with ARM Mali-G51 graphics.
04
Memory
2 GB RAM and 8 GB storage.
05
Tiled matrix
Supports tiled layouts of up to 15 x 15 displays.
06
Network control
RS232C and RJ45 LAN control, plus IR in/out.
07
Multi-input connectivity
HDMI 2.0 × 2, DVI-I and USB 2.0 × 2.
08
Built-in audio
2 x 10 W RMS speakers with 3.5 mm audio input and output.
Specifications
32 specificationsGeneral
Key FeaturesQ-Line Full HD, Android 8.0, VA panel, 2 GB RAM and 8 GB storage, tiled matrix up to 15 x 15, RS232 and RJ45 control, built-in 2 x 10 W speakers
Model32BDL3550Q/00
TypeDigital Signage Display
What's in the BoxAC power cord, RS232 cable, remote control, batteries, IR sensor cable, RS232 daisy-chain cable, USB cover and screws, quick start guide
Display
Aspect Ratio16:9
Bezel Size11.9 mm (top, left, right) / 17.2 mm (bottom)
Brightness350 nits
Color Depth16.7 million colours
Contrast Ratio4,000:1
OrientationLandscape or portrait (18/7)
Panel TechnologyVA
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size32 inch
Viewing Angle178° horizontal / 178° vertical
Performance
GraphicsARM Mali-G51
Operating SystemAndroid 8.0
ProcessorDual-core Cortex-A53 1.1 GHz and dual-core Cortex-A73 1.15 GHz
RAM2 GB
Storage8 GB
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 × 2, DVI-I × 1, USB 2.0 × 2, RJ45 × 1, RS232C in/out × 1, IR in/out × 1, 3.5 mm audio in/out
Power
Power Consumption50 W (typical), 80 W (max)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount100 x 100 mm, 200 x 200 mm
Weight5.31 kg
Compliance
CertificationsCB, CE, BSMI, CU, EPA, ETL, FCC Class A, VCCI, J-MOSS
Warranty3 years
Downloads
Manufacturer documents for the Philips 32-inch Q-Line Android Full HD Digital Signage Display – 32BDL3550Q/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the 32BDL3550Q/00 run Android?
Yes. The display runs Android 8.0 with a dual-core Cortex-A53 1.1 GHz and dual-core Cortex-A73 1.15 GHz processor configuration. It has 2 GB RAM and 8 GB storage for on-display content.
What resolution and panel does it use?
It supports 1920 x 1080 (Full HD) at 60 Hz on a 16:9 VA panel. Brightness is 350 nits, contrast is 4,000:1 typical and viewing angles are 178 degrees horizontal and vertical.
Can it be wall-mounted or tiled into a video wall?
Yes. It has VESA mounts at 100 x 100 mm and 200 x 200 mm (M4), and the Q-Line range supports tiled matrix layouts of up to 15 x 15 displays. The display weighs 5.31 kg.
Which control and integration options does it have?
It supports RS232C control with in/out ports, RJ45 LAN network control and IR in/out. An RS232 daisy-chain cable and RS232 cable are included, along with a remote control. Quotes and project advice are available from Procure.ae via WhatsApp or email.
