PhilipsDigital SignageSKU 32BDL3650Q/00

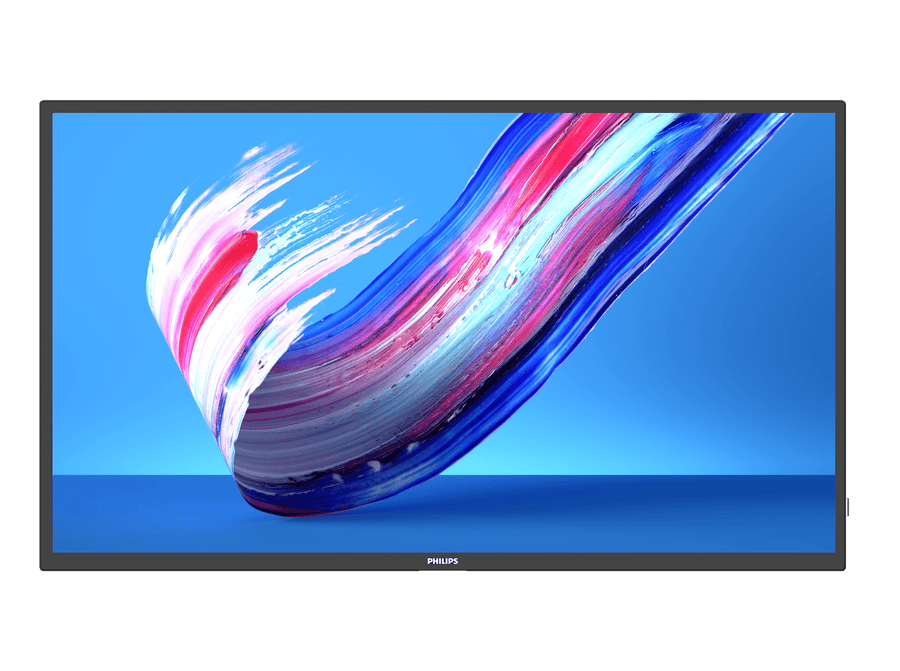

Philips 32-inch Q-Line Android 10 Full HD Digital Signage Display – 32BDL3650Q/00
The Philips 32BDL3650Q/00 is a 32-inch Full HD digital signage display from the Q-Line range, powered by Android 10 with 3 GB RAM and 16 GB storage. It suits reception areas, menu boards and information points, with a 1920 x 1080 VA panel at 350 nits. Procure.ae supplies it in the UAE with delivery and installation.
The 32BDL3650Q/00 runs Android 10 on a quad-core Cortex-A55 processor with G52 MC1 graphics, 3 GB RAM and 16 GB storage. The 1920 x 1080 VA panel at 60 Hz provides 350 nits brightness, 4,000:1 typical contrast and 178-degree viewing angles, with an 8 ms typical response time. Typical power consumption is 41 W, and standby power is below 0.5 W. Two 10 W RMS speakers are built in.
It fits reception areas, menu boards and information points, and it can be mounted in landscape or portrait. The unit includes a micro SD slot and a USB 3.0 port, and tiled layouts of up to 3 x 3 displays are supported. RS232C and RJ45 LAN provide network control, with IR in/out for remote sensors. The manufacturer describes the unit as Wave-ready for remote management. VESA mounts use 100 x 100 mm and 200 x 200 mm patterns.
Screen Size
32 inch
Resolution
1920 x 1080 (Full HD)
Brightness
350 nits
Type
Digital Signage Display
- Android 10 platform
- Full HD resolution
- Processing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 10 platform
Runs Android 10 for on-display content playback.
02
Full HD resolution
1920 x 1080 VA panel at 60 Hz with 350 nits brightness.
03
Processing
Quad-core Cortex-A55 processor with G52 MC1 graphics.
04
Memory
3 GB RAM and 16 GB storage.
05
Storage expansion
Micro SD slot and USB 3.0 port.
06
Tiled matrix
Supports tiled layouts of up to 3 x 3 displays.
07
Network control
RS232C and RJ45 LAN control, plus IR in/out.
08
Built-in audio
2 x 10 W RMS speakers with 3.5 mm audio input and output.
Specifications
32 specificationsGeneral
Key FeaturesQ-Line Full HD, Android 10, VA panel, 3 GB RAM and 16 GB storage, tiled matrix up to 3 x 3, micro SD slot, USB 3.0, RS232 and RJ45 control, built-in 2 x 10 W speakers
Model32BDL3650Q/00
TypeDigital Signage Display
What's in the BoxIR sensor cable, RS232 daisy-chain cable, AC power cord, quick start guide, remote control and AAA batteries, RS232 cable, USB cover and screws, wire clamper
Display
Aspect Ratio16:9
Bezel Size11.9 mm (left, right, top) / 17.2 mm (bottom)
Brightness350 nits
Color Depth16.7 million colours
Contrast Ratio4,000:1
OrientationLandscape or portrait (18/7)
Panel TechnologyVA
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size32 inch
Viewing Angle178° horizontal / 178° vertical
Performance
GraphicsG52 MC1
Operating SystemAndroid 10
ProcessorQuad-core Cortex-A55
RAM3 GB
Storage16 GB
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 × 2, DVI-I × 1, USB 2.0 × 2, USB 3.0 × 1, RJ45 × 1, RS232C in/out × 1, IR in/out × 1, micro SD, 3.5 mm audio in/out
Power
Power Consumption41 W (typical)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount100 x 100 mm, 200 x 200 mm
Weight5.31 kg
Compliance
CertificationsCB, CE, FCC Class A, VCCI, RoHS, UL
Warranty3 years
Downloads
Manufacturer documents for the Philips 32-inch Q-Line Android 10 Full HD Digital Signage Display – 32BDL3650Q/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the 32BDL3650Q/00 run Android 10?
Yes. The display runs Android 10 on a quad-core Cortex-A55 processor with G52 MC1 graphics, 3 GB RAM and 16 GB storage. The manufacturer also describes it as Wave-ready for remote management.
What resolution and panel does it use?
It supports 1920 x 1080 (Full HD) at 60 Hz on a 16:9 VA panel. Brightness is 350 nits, contrast is 4,000:1 typical and viewing angles are 178 degrees horizontal and vertical.
Can it be wall-mounted or tiled into a video wall?
Yes. It has VESA mounts at 100 x 100 mm and 200 x 200 mm (M4), and it supports tiled matrix layouts of up to 3 x 3 displays. The display weighs 5.31 kg.
Which control and integration options does it have?
It supports RS232C control with in/out ports, RJ45 LAN network control and IR in/out. An RS232 daisy-chain cable, RS232 cable and IR sensor cable are included, along with a remote control.
