PhilipsDigital SignageSKU 32BDL4511D/00

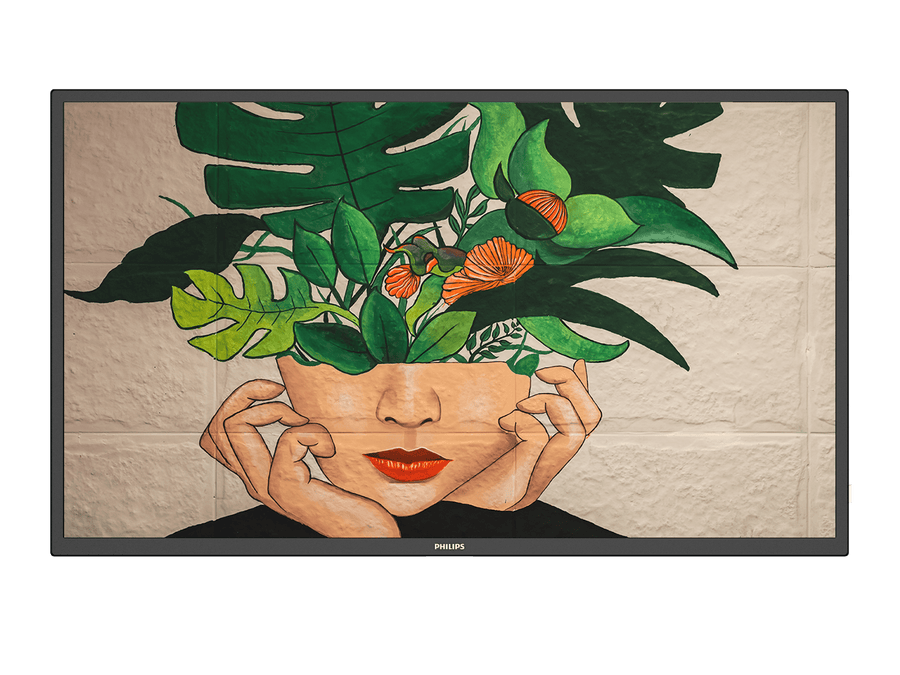

Philips 32-inch D-Line Full HD Digital Signage Display – 32BDL4511D/00
The Philips 32BDL4511D/00 is a 32-inch Full HD digital signage display from the D-Line 4000 series, built to show content from multiple sources on a single screen. It offers a 400 nits ADS panel, 1200:1 typical contrast and 1920 x 1080 resolution at 60 Hz. Procure.ae supplies it in the UAE with delivery and installation.
The 32BDL4511D/00 uses a 1920 x 1080 ADS panel at 60 Hz with 400 nits brightness, 1200:1 typical contrast and 178-degree viewing angles. The typical response time is 8 ms and the panel displays 16.7 million colours. Power consumption is 36 W typical and 60 W maximum, with standby power of 0.5 W. Pixel Shift and Low Brightness screen-saving functions are included, and Smart Power provides energy-saving control.
It fits menu boards, information points and multi-source displays in offices, schools and retail spaces, mounted in landscape or portrait for 24/7 operation. Video inputs are DisplayPort 1.2, DVI-I and two HDMI 2.0 ports, with DisplayPort and HDMI outputs for passing video to another display. Control is available through RS232C, RJ45 LAN and IR. The 100 x 100 mm and 200 x 200 mm VESA patterns support wall or stand mounting.
Screen Size
32 inch
Resolution
1920 x 1080 (Full HD)
Brightness
400 nits
Type
Digital Signage Display
- Full HD ADS panel
- Contrast and viewing
- Multi-source display
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD ADS panel
1920 x 1080 at 60 Hz with 400 nits brightness.
02
Contrast and viewing
1200:1 typical contrast and 178-degree viewing angles.
03
Multi-source display
DisplayPort 1.2, DVI-I and HDMI 2.0 × 2 video inputs.
04
Video loop-out
DisplayPort 1.2 and HDMI 2.0 outputs for passing video onward.
05
Screen-saving functions
Pixel Shift and Low Brightness modes.
06
Network control
RS232C and RJ45 LAN control, plus IR in/out.
07
Built-in audio
2 x 10 W RMS speakers with 3.5 mm audio input and output.
08
Energy saving
Smart Power with 36 W typical power consumption.
Specifications
29 specificationsGeneral
Key FeaturesD-Line Full HD, ADS panel, 400 nits brightness, Pixel Shift, Smart Power, DisplayPort and HDMI loop-out, RS232 and RJ45 control, built-in 2 x 10 W speakers
Model32BDL4511D/00
TypeDigital Signage Display
What's in the BoxPhilips logo, AC power cord, AC switch cover, IR sensor cable, quick start guide, remote control and AAA batteries, RS232 cable, RS232 daisy-chain cable, USB cover and screw, wire clamper
Display
Aspect Ratio16:9
Bezel Size11.9 mm (top, right, left) / 17.2 mm (bottom)
Brightness400 nits
Color Depth16.7 million colours
Contrast Ratio1200:1
OrientationLandscape or portrait (24/7)
Panel TechnologyADS
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size32 inch
Viewing Angle178° horizontal / 178° vertical
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
InputsDisplayPort 1.2 × 1, DVI-I × 1, HDMI 2.0 × 2
OutputsDisplayPort 1.2 × 1, HDMI 2.0 × 1
PortsDisplayPort 1.2 × 1, DVI-I × 1, HDMI 2.0 × 2, USB 2.0 × 2, RJ45 × 1, RS232C in/out × 1, IR in/out × 1, 3.5 mm audio in/out
Power
Power Consumption36 W (typical), 60 W (max)
Standby Power0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount100 x 100 mm, 200 x 200 mm
Weight5.7 kg
Compliance
CertificationsCE, FCC Class A, CCC, RoHS, CB, BSMI, EMF, VCCI, PSB, ETL, CECP, EAC
Warranty3 years
Downloads
Manufacturer documents for the Philips 32-inch D-Line Full HD Digital Signage Display – 32BDL4511D/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Can the 32BDL4511D/00 show content from more than one source?
Yes. The display has DisplayPort 1.2, DVI-I and two HDMI 2.0 inputs, so several sources can be connected. The manufacturer also states that content from multiple sources can be shown on a single screen.
What resolution and panel does it use?
It supports 1920 x 1080 (Full HD) at 60 Hz on a 16:9 ADS panel. Brightness is 400 nits, contrast is 1200:1 typical and viewing angles are 178 degrees horizontal and vertical.
Can it be wall-mounted or tiled into a video wall?
Yes. It has VESA mounts at 100 x 100 mm and 200 x 200 mm (M4). The manufacturer's specifications do not state a tiled matrix limit for this model, so confirm multi-display layouts with Procure.ae before ordering.
Which control and integration options does it have?
It supports RS232C control with in/out ports, RJ45 LAN network control and IR in/out. An RS232 daisy-chain cable and RS232 cable are included for linking displays. Quotes and project advice are available from Procure.ae via WhatsApp or email.
