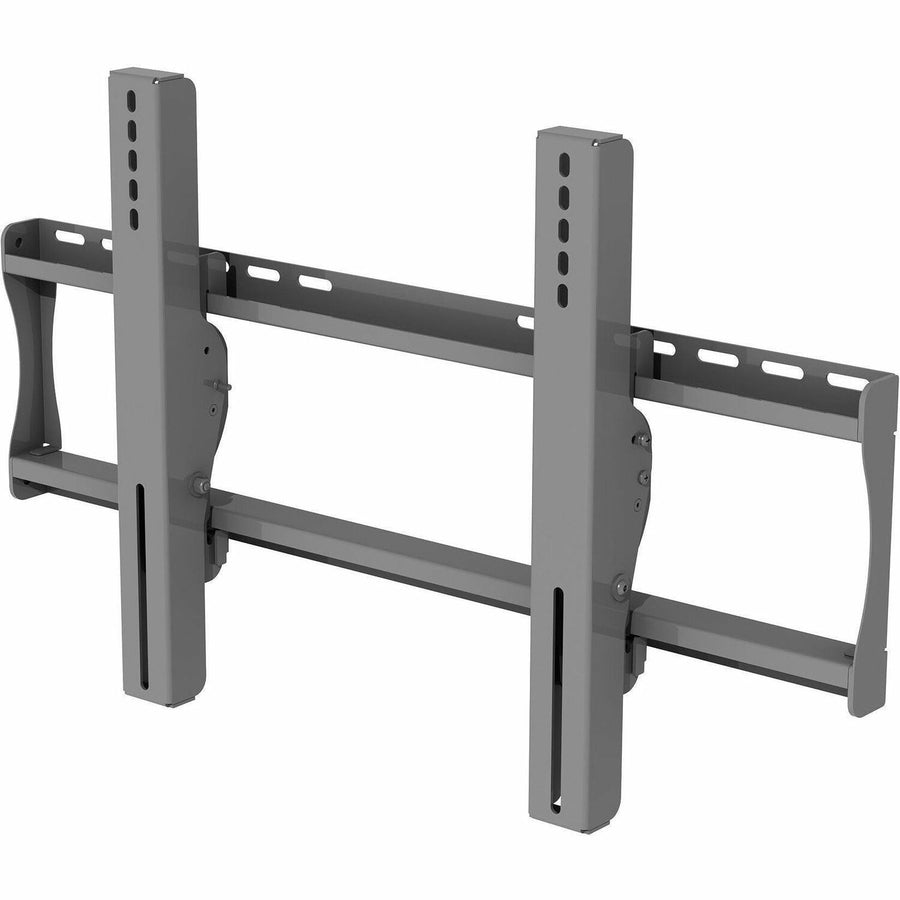

Peerless-AV Wind Rated Universal Tilt Wall Mount 32-65-inch – EWMU
The Peerless-AV EWMU is a wind rated universal tilt wall mount for outdoor flat panel displays from 32-65-inch. It is rated for winds up to 110 mph, carries up to 90.72 kg and offers -5 to 15 degrees of tilt. Procure.ae supplies the EWMU in the UAE.
The EWMU is built for outdoor environments, with heavy gauge steel construction, a corrosion-resistant E-coat and stainless steel tamper-resistant hardware. It is wind rated up to 110 mph at elevations up to 200 ft (60 m), Category D. The mount holds up to 90.72 kg and offers up to 8 inches (203 mm) of horizontal positioning. Its universal mounting pattern is 721 x 449 mm (28.39 x 17.67 inch), and it is VESA compliant up to 600 x 400 mm.
The Hook-and-Hang design makes installation simpler, and the mount ships with security fasteners plus hardware for wood studs, concrete or cinder block. Assembly is required. Applications listed for the mount include entryways, patios, restaurants, retail and stadiums, and it is compatible with UHD outdoor TVs and high-brightness outdoor displays. It weighs 7.71 kg, and the manufacturer lists UL listing and a 5-year limited warranty.
Lock Type
IncreLok
Type
Outdoor Wind Rated Tilt Wall Mount
Weight
7.71 kg
- Wind rated mount
- Horizontal positioning
- Hook-and-hang design
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Wind rated mount
Rated for winds up to 110 mph, elevation 200 ft (60 m), Category D.
02
Horizontal positioning
Up to 8 inches (203 mm) of horizontal adjustment.
03
Hook-and-hang design
Simplifies installation with a hook-and-hang fitting.
04
Fixed tilt settings
Set at 0, 2, 5, 10 and 15 degrees, plus -5 degrees back tilt.
05
Universal mounting pattern
721 x 449 mm, with VESA compliance up to 600 x 400 mm.
06
Corrosion-resistant build
Heavy gauge steel with E-coat and stainless steel hardware.
Specifications
21 specificationsGeneral
ApplicationEntryway, patio, restaurant, retail, stadium
CompatibilityUHD outdoor TVs and high-brightness outdoor displays
Key FeaturesHook-and-hang installation, wind rated to 110 mph, horizontal adjustment, fixed tilt, universal mounting pattern, corrosion resistant, weatherproof
ModelEWMU
TypeOutdoor Wind Rated Tilt Wall Mount
What's in the BoxWall mount, hardware, security fasteners
Display
Supported Screen Sizes32-65 inch
Physical
AdjustabilityHorizontal, up to 203 mm
ColorBlack
FinishElectro-coated and powder-coated
Load Capacity90.72 kg
Lock TypeIncreLok
MaterialSteel
MountingWall
Tilt-5° to 15°
VESA Mount200 x 100 to 721 x 449 mm
Wall FixingWood stud, concrete, cinder block
Weight7.71 kg
Compliance
CertificationsUL listed, TAA compliant
Security FeaturesTamper-resistant hardware, security fasteners
Warranty5 years
Downloads
Manufacturer documents for the Peerless-AV Wind Rated Universal Tilt Wall Mount 32-65-inch – EWMU — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What display sizes does the EWMU support?
The EWMU supports outdoor flat panel displays from 32-65-inch (81.28 to 165.10 cm), with a maximum load capacity of 90.72 kg. The mount itself weighs 7.71 kg. Its universal mounting pattern is 721 x 449 mm.
Is the EWMU wind rated?
Yes. It is wind rated up to 110 mph at elevations up to 200 ft (60 m), Category D, and it is UL listed. It also offers up to 8 inches (203 mm) of horizontal positioning.
Can the EWMU be installed on concrete or cinder block?
Yes. The mount includes hardware for wood studs, concrete and cinder block walls, along with security fasteners. Assembly is required, and the manufacturer lists a 5-year limited warranty. Stainless steel tamper-resistant hardware is supplied.
