PeerlessMeeting Room SolutionsSKU DS-OM55ND-FLOOR

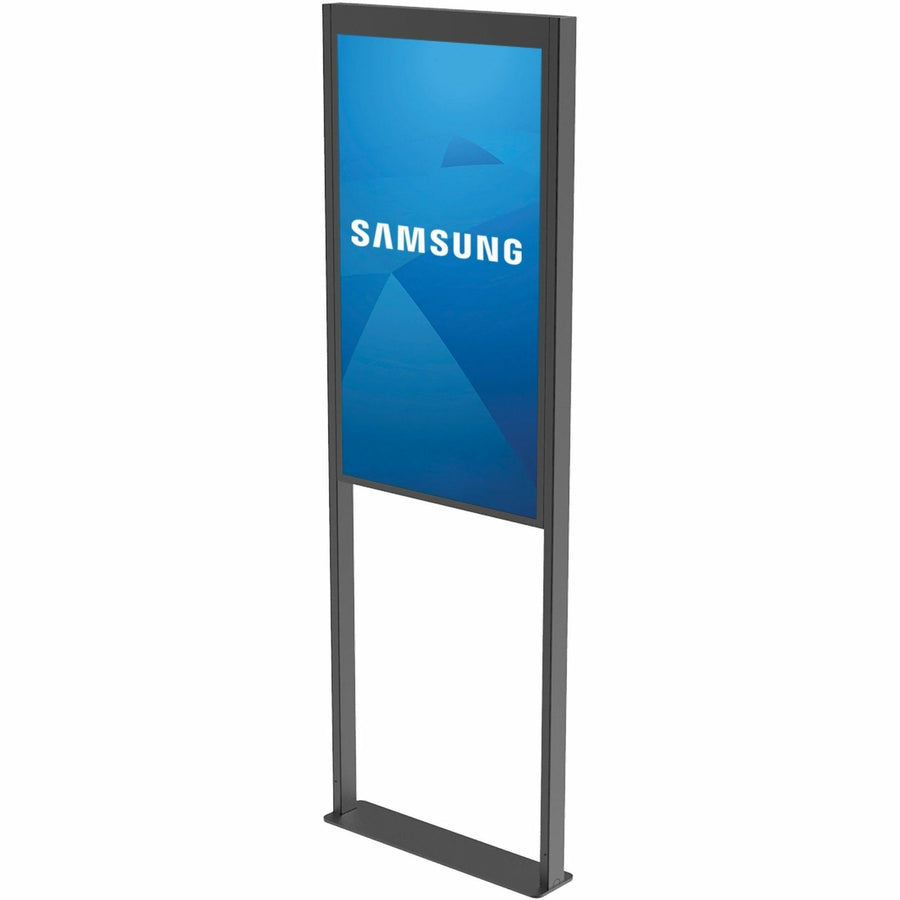

Peerless-AV Floor Window Mount for 55-inch Samsung OM55ND – DS-OM55ND-FLOOR
The Peerless-AV DS-OM55ND-FLOOR is a slim floor window display mount for one Samsung OM55ND double-sided 55-inch digital signage display. It supports up to 45.36 kg and is set to 1650 mm (74 inches) to the centre of the display. Procure.ae supplies the Peerless-AV DS-OM55ND-FLOOR in the UAE as an authorised reseller.
The DS-OM55ND-FLOOR is designed for the Samsung OM55ND double-sided digital signage display, so content can be seen from inside and outside a store window. It supports one display with a maximum load of 45.36 kg and a maximum screen size of 55 inches (139.70 cm). The slim-profile mount stands on a floor plate and includes side struts and side covers. The mount itself weighs 29.89 kg, and assembly is required.
The mount is designed for commercial and retail window displays. It can be fixed to wood or concrete surfaces with the hardware included, and concealed cable management gives a clean finish. The manufacturer's specifications list indoor use, TAA compliance and a 5-year limited warranty, with a floor mounting height of 1650 mm (74 inches) to the centre of the display.
Type
Floor Window Display Mount
Weight
29.89 kg
- Slim profile
- Double-sided viewing
- Concealed attachment
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Slim profile
The slim profile complements the sleek look of the Samsung display.
02
Double-sided viewing
Designed for double-sided signage viewed from inside and outside a store window.
03
Concealed attachment
Concealed floor attachment for a sleek appearance.
04
Concealed cable management
Hides cables for a professional installation.
05
Wood or concrete mounting
Fixes to wood or concrete with the included hardware.
06
Load capacity
Rated for a maximum load of 45.36 kg for one display.
07
Matte black finish
Powder-coated matte black finish with a 5-year limited warranty.
Specifications
15 specificationsGeneral
ApplicationCommercial, concrete, retail, window, wood
CompatibilitySamsung OM55ND Double Sided Digital Signage Display
Key FeaturesSlim profile, Double-sided display support, Concealed floor attachment, Concealed cable management, Fits wood or concrete, Indoor use, Single display, TAA compliant
ModelDS-OM55ND-FLOOR
TypeFloor Window Display Mount
What's in the BoxFloor window display mount, floor plate, 2 side struts, 2 side covers, mounting and display hardware, instructions
Display
Supported Screen SizesUp to 55 inch (139.70 cm)
Physical
ColorMatte black
FinishPowder coated
Form FactorFloor mountable
Load Capacity45.36 kg
MountingFloor, 1650 mm (74 inches) to centre of display
Weight29.89 kg
Compliance
CertificationsTAA
Warranty5 years
Downloads
Manufacturer documents for the Peerless-AV Floor Window Mount for 55-inch Samsung OM55ND – DS-OM55ND-FLOOR — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which display does the DS-OM55ND-FLOOR fit?
The mount is designed for the Samsung OM55ND double-sided digital signage display. The manufacturer's specifications list a maximum supported screen size of 55 inches (139.70 cm) and a maximum load of 45.36 kg. The mount is for one display only.
Can the mount be fixed to wood or concrete?
Yes, the mount can be fixed to wood joists or concrete using the included mounting and display hardware. Assembly is required, and installation instructions are included in the package. The floor plate and side covers are included too.
What height is the display centre set to?
The manufacturer states the floor-mounted display is 1650 mm (74 inches) to the centre of the display. The mount weighs 29.89 kg, so the floor structure should be checked for the combined weight before installation. Assembly is listed as required by the manufacturer.
Can I buy the DS-OM55ND-FLOOR in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
