Peerless 40-70-inch Dual Display Ceiling Mount – DST970X2

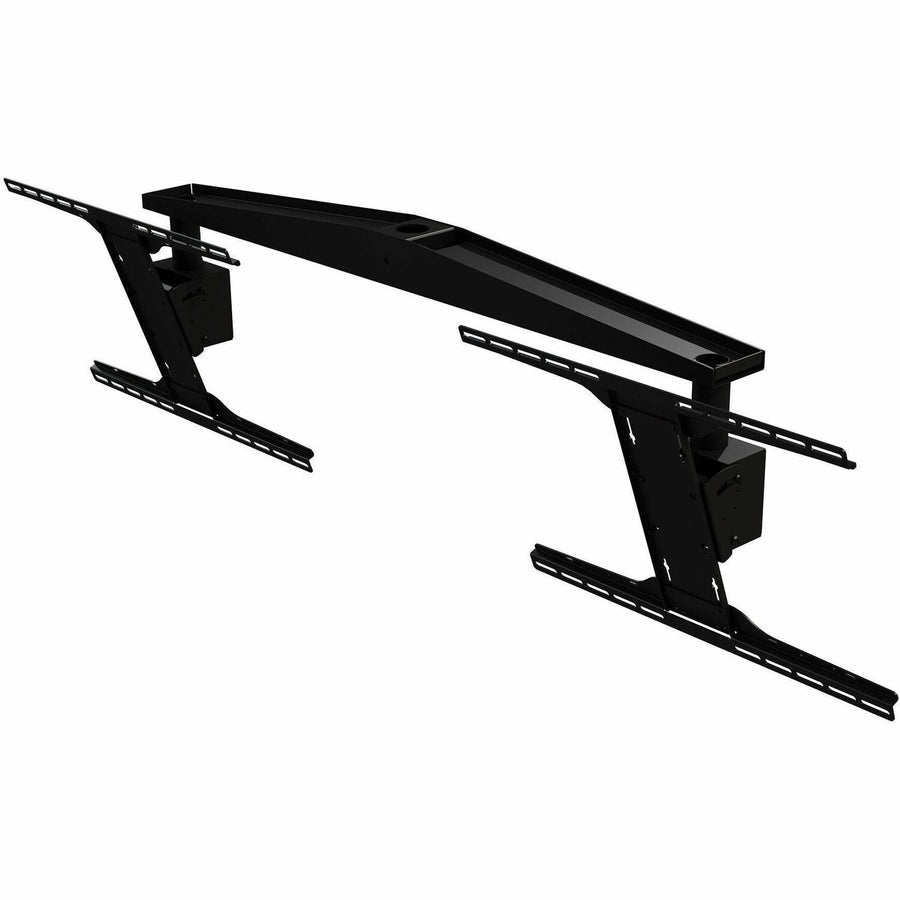

The Peerless DST970X2 is a dual display ceiling mount for two 40-inch to 70-inch displays, built from steel on a single column. It supports 56.70 kg to 113.40 kg, takes mounting patterns up to 600 x 400 mm, and lets each display swivel and tilt independently. Procure.ae supplies the DST970X2 as an authorised reseller across the UAE.
The DST970X2 uses heavy gauge steel construction to carry two displays from a single column, which reduces installation time and improves aesthetics. Each display attaches with a simple hook-on connection, and the universal adaptors accommodate mounting hole patterns up to 600 x 400 mm. Each display can be set to its optimal position with independent swivel and tilt. The mount is compatible with an extensive line of Peerless fixed length and adjustable extension columns.
Type
Dual Display Ceiling Mount
Weight
22.68 kg
- Single-column design
- Hook-on display attachment
- Independent swivel and tilt
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Single-column design
One steel column carries two displays, which reduces installation time.
02
Hook-on display attachment
A simple hook makes setup quick and easy.
03
Independent swivel and tilt
Each display can be set to its optimal position.
04
Universal adaptors
Adaptors fit most displays in the 40-70-inch range, with mounting patterns up to 600 x 400 mm.
05
Extension column compatibility
Works with an extensive line of Peerless fixed length and adjustable extension columns.
06
Display width limit
Display width is limited to 44 inches when both displays face forward.
Specifications
16 specificationsGeneral
Key FeaturesHeavy gauge steel single column, hook-on display attachment, universal adaptors, independent swivel and tilt, compatible with Peerless extension columns
ModelDST970X2
TypeDual Display Ceiling Mount
What's in the BoxDual display ceiling mount, dual cross support, 2 x 6-inch extension columns, 2 x tilt boxes, 2 x universal adaptors, mounting hardware
Display
Supported Screen Sizes40-70 inch (101.60-177.80 cm)
Physical
AdjustabilityIndependent swivel and tilt per display
ColorBlack
FinishPowder coated
Form FactorCeiling mountable
Load Capacity56.70-113.40 kg
MaterialSteel
MountingCeiling
VESA Mount600 x 400 mm
Weight22.68 kg
Compliance
CertificationsTAA compliant
Warranty5 years
Downloads
Manufacturer documents for the Peerless 40-70-inch Dual Display Ceiling Mount – DST970X2 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which display sizes does the DST970X2 support?
The DST970X2 is designed for two displays from 40 inches to 70 inches (101.60 to 177.80 cm). The included universal adaptor plate accommodates most displays in that range, but display width is limited to 44 inches if both displays face forward.
What weight and load can the DST970X2 carry?
The DST970X2 is rated for 56.70 kg to 113.40 kg, and the mount itself weighs about 22.68 kg. Confirm that the ceiling structure can carry the full assembly, including both displays, before installation. Procure.ae provides delivery and installation across the UAE.
Does the DST970X2 work with Peerless extension columns?
Yes, the DST970X2 is compatible with an extensive line of Peerless-AV fixed length and adjustable extension columns. The package includes two 6-inch extension columns and two tilt boxes. Procure.ae provides delivery and installation across the UAE.
Can I buy the Peerless DST970X2 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
