PanasonicDigital SignageSKU TH-75SQ3

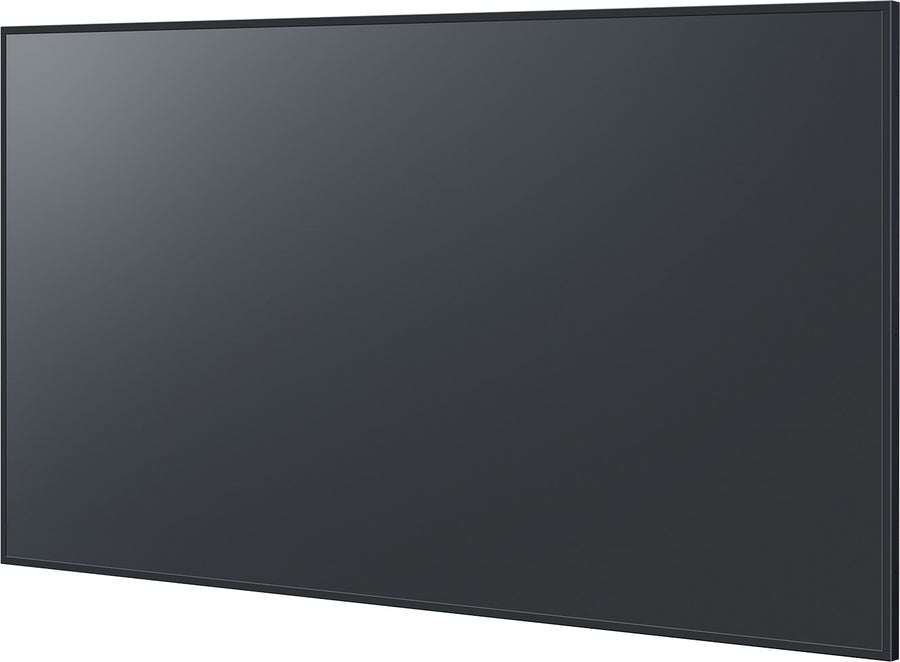

Panasonic SQ3 Series 75-inch 4K UHD Digital Signage Display – TH-75SQ3
The Panasonic TH-75SQ3 is a 75-inch 4K UHD digital signage display in the SQ3 Series, for conference rooms, classrooms and public facilities. It offers 3840 x 2160 resolution, 1,200:1 typical contrast and 500 nits brightness with an anti-glare panel. Procure.ae supplies the TH-75SQ3 across the UAE, with delivery and installation.
The TH-75SQ3 shows 3840 x 2160 (4K UHD) pixels, about 8.29 million in total and four times the pixels of a Full-HD display. Its 500 nits brightness and anti-glare panel, with 25% haze, keep images readable in bright rooms by suppressing reflected glare. The viewing angle is 178° horizontal and 178° vertical, with a 1,200:1 typical contrast ratio and a 8 ms typical response time (G to G). Dynamic contrast and dynamic backlight control adapt the picture to the content being shown. The built-in speakers are rated at 20 W (10 W + 10 W).
The TH-75SQ3 sits near the top of the SQ3 Series range of 43 to 86 inches, with a 600 x 400 mm VESA pattern, M8 screws and a weight of 35.6 kg. It suits conference rooms, classrooms and shopping malls, and it can be tilted 0 to 20 degrees forward or backward in landscape or portrait. It takes three HDMI inputs with HDCP 2.2 support, and it can be controlled over RS-232C or PJLink-compatible LAN.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD resolution
- Contrast and backlight control
- 500 nits brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD resolution
3840 x 2160 pixels, about 8.29 million in total and four times the pixels of a Full-HD display.
02
Contrast and backlight control
1,200:1 typical contrast ratio, with dynamic contrast and dynamic backlight control.
03
500 nits brightness
500 nits brightness keeps images visible in bright rooms.
04
Anti-glare panel
Anti-glare treatment with 25% haze suppresses the reflected glare of bright light.
05
Three HDMI inputs
HDMI In × 3 with HDCP 2.2 support, plus a PC input and a USB Type A port for connected sources.
06
RS-232C and LAN control
RS-232C serial control and an RJ45 LAN port compatible with PJLink for remote operation.
07
Built-in USB playback
4K compatible media playback from a USB memory stick, without a PC or set-top box.
08
Flexible installation
Landscape or portrait orientation with 0 to 20 degrees of forward or backward tilt.
Specifications
27 specificationsGeneral
Key Features4K UHD (3840 x 2160), 500 nits, anti-glare panel, 3 HDMI inputs, RS-232C and LAN (PJLink) control, built-in USB media playback, 20 W speakers, 24-hour operation
ModelTH-75SQ3
TypeDigital Signage Display
Display
Aspect Ratio16:9
Brightness500 nits
Contrast Ratio1,200:1
OrientationLandscape / Portrait
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Viewing Angle178° horizontal / 178° vertical
Audio
Speaker Output20 W (10 W + 10 W)
Connectivity
EthernetRJ45, 10BASE-T/100BASE-TX, PJLink compatible
HDMI Inputs3 (HDCP 2.2 supported)
Input Voltage110–240 V AC, 50/60 Hz
PortsHDMI In × 3, PC In (Mini D-sub 15-pin) × 1, Audio In (3.5 mm) × 1, Audio Out (RCA) × 2, LAN (RJ45) × 1, USB Type A × 1, RS-232C (D-sub 9-pin) × 1
Serial PortRS-232C (D-sub 9-pin) × 1
USB PortsUSB Type A × 1 (5 V / 2 A, USB 2.0)
Power
Power Capacity (VA)291 VA
Power Consumption213 W (on mode average)
Physical
Duty Cycle24 hours a day
Operating Humidity20% to 80% RH (no condensation)
Operating Temperature0 to 40 °C
Tilt0 to 20 degrees forward / backward
VESA Mount600 x 400 mm
Wall FixingM8 screws, 20 mm screw hole depth
Weight35.6 kg
Downloads
Manufacturer documents for the Panasonic SQ3 Series 75-inch 4K UHD Digital Signage Display – TH-75SQ3 — datasheets, manuals, drawings and certificates.
- Datasheet – SQ3 Series – th-75sq3w spec en
- Datasheet – SQ3 Series – TH-75SQ3 Spec Sheet Global
- User manual – Panasonic EQ3 Series / SQ3 Series
- User manual – Panasonic EQ3 Series / SQ3 Series
- Drawing – SQ3 Series – 75sq3+ty-st75pe9 cad en
- Drawing – SQ3 Series – 75sq3+ty-wk98pv1 cad en
- Drawing – SQ3 Series – th 75sq3 cad en
- SQ3 Command List en
Questions
Can’t find your answer? Ask on WhatsApp
What resolution, brightness and contrast does the Panasonic TH-75SQ3 have?
The TH-75SQ3 has a 3840 x 2160 (4K UHD) resolution, 500 nits brightness and a 1,200:1 typical contrast ratio. Its anti-glare panel has 25% haze, and the viewing angle is 178° horizontal and 178° vertical.
Is the TH-75SQ3 suitable for meeting rooms and classrooms?
Yes. The manufacturer positions the SQ3 Series for meeting rooms, classrooms, retail spaces and public facilities. The 500 nits brightness and anti-glare panel suit bright rooms, and the 75-inch size is one of the 43 to 86-inch options in the series.
Can the TH-75SQ3 be wall-mounted, and what VESA pattern does it use?
Yes. The TH-75SQ3 uses a 600 x 400 mm VESA pattern with M8 screws, and the wall-hanging screw hole depth is 20 mm. It can be installed in landscape or portrait orientation, with up to 20 degrees of forward or backward tilt.
Can the TH-75SQ3 be controlled from a room control system?
Yes. The TH-75SQ3 has an RS-232C serial control port (D-sub 9-pin) and an RJ45 LAN port compatible with PJLink, so it can be managed over serial or network control. It also has three HDMI inputs with HDCP 2.2 support for connected sources.
Can the TH-75SQ3 play content from a USB stick without a PC?
Yes. The built-in USB media playback is 4K compatible, and playback starts when a USB memory stick with saved content is inserted, so no PC or set-top box is needed. Still images and videos cannot be mixed, and some files may not play even in a supported format; see the operation manual.
