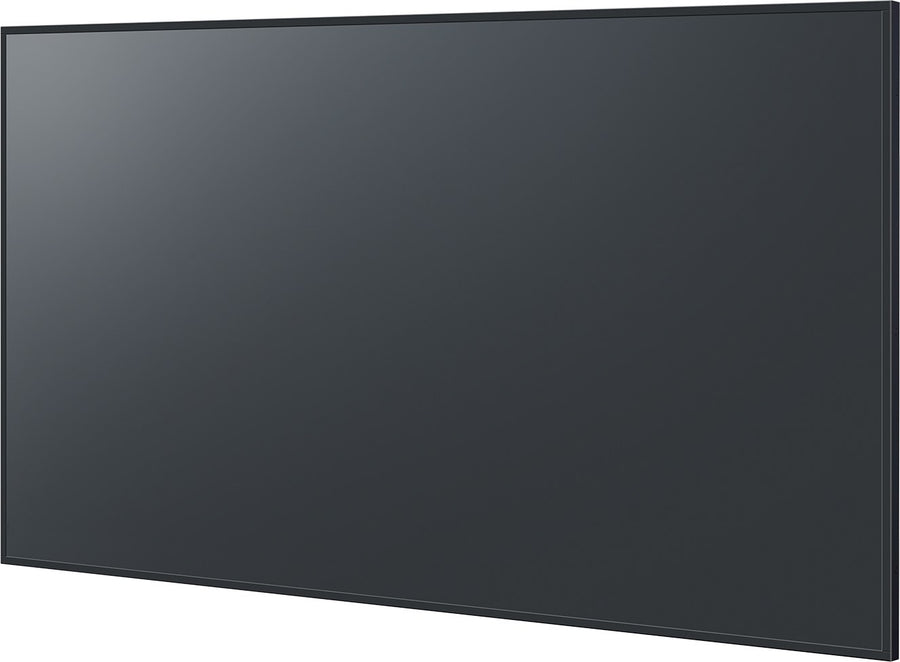

Panasonic SQ3 Series 75-inch 4K UHD Digital Signage Display – TH-75SQ3

Panasonic SQ3 Series 75-inch 4K UHD Digital Signage Display – TH-75SQ3

The Panasonic TH-75SQ3 is a 75-inch 4K UHD digital signage display in the SQ3 Series, for conference rooms, classrooms and public facilities. It offers 3840 x 2160 resolution, 1,200:1 typical contrast and 500 nits brightness with an anti-glare panel. Procure.ae supplies the TH-75SQ3 across the UAE, with delivery and installation.

The TH-75SQ3 shows 3840 x 2160 (4K UHD) pixels, about 8.29 million in total and four times the pixels of a Full-HD display. Its 500 nits brightness and anti-glare panel, with 25% haze, keep images readable in bright rooms by suppressing reflected glare. The viewing angle is 178° horizontal and 178° vertical, with a 1,200:1 typical contrast ratio and a 8 ms typical response time (G to G). Dynamic contrast and dynamic backlight control adapt the picture to the content being shown. The built-in speakers are rated at 20 W (10 W + 10 W).

The TH-75SQ3 sits near the top of the SQ3 Series range of 43 to 86 inches, with a 600 x 400 mm VESA pattern, M8 screws and a weight of 35.6 kg. It suits conference rooms, classrooms and shopping malls, and it can be tilted 0 to 20 degrees forward or backward in landscape or portrait. It takes three HDMI inputs with HDCP 2.2 support, and it can be controlled over RS-232C or PJLink-compatible LAN.

Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
Weight
35.6 kg

Key features

01
4K UHD resolution
3840 x 2160 pixels, about 8.29 million in total and four times the pixels of a Full-HD display.
02
Contrast and backlight control
1,200:1 typical contrast ratio, with dynamic contrast and dynamic backlight control.
03
500 nits brightness
500 nits brightness keeps images visible in bright rooms.
04
Anti-glare panel
Anti-glare treatment with 25% haze suppresses the reflected glare of bright light.
05
Three HDMI inputs
HDMI In × 3 with HDCP 2.2 support, plus a PC input and a USB Type A port for connected sources.
06
RS-232C and LAN control
RS-232C serial control and an RJ45 LAN port compatible with PJLink for remote operation.
07
Built-in USB playback
4K compatible media playback from a USB memory stick, without a PC or set-top box.
08
Flexible installation
Landscape or portrait orientation with 0 to 20 degrees of forward or backward tilt.

Specifications

General
Key Features4K UHD (3840 x 2160), 500 nits, anti-glare panel, 3 HDMI inputs, RS-232C and LAN (PJLink) control, built-in USB media playback, 20 W speakers, 24-hour operation
ModelTH-75SQ3
TypeDigital Signage Display
Display
Aspect Ratio16:9
Brightness500 nits
Contrast Ratio1,200:1
OrientationLandscape / Portrait
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Viewing Angle178° horizontal / 178° vertical
Audio
Speaker Output20 W (10 W + 10 W)
Connectivity
EthernetRJ45, 10BASE-T/100BASE-TX, PJLink compatible
HDMI Inputs3 (HDCP 2.2 supported)
Input Voltage110–240 V AC, 50/60 Hz
PortsHDMI In × 3, PC In (Mini D-sub 15-pin) × 1, Audio In (3.5 mm) × 1, Audio Out (RCA) × 2, LAN (RJ45) × 1, USB Type A × 1, RS-232C (D-sub 9-pin) × 1
Serial PortRS-232C (D-sub 9-pin) × 1
USB PortsUSB Type A × 1 (5 V / 2 A, USB 2.0)
Power
Power Capacity (VA)291 VA
Power Consumption213 W (on mode average)
Physical
Duty Cycle24 hours a day
Operating Humidity20% to 80% RH (no condensation)
Operating Temperature0 to 40 °C
Tilt0 to 20 degrees forward / backward
VESA Mount600 x 400 mm
Wall FixingM8 screws, 20 mm screw hole depth
Weight35.6 kg
QR code to Panasonic SQ3 Series 75-inch 4K UHD Digital Signage Display – TH-75SQ3 on procure.ae
Get our best price for this product
Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041  ·  WhatsApp  ·  ✉ info@procure.ae  ·  🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
