PanasonicMeeting Room SolutionsSKU AW-UE40

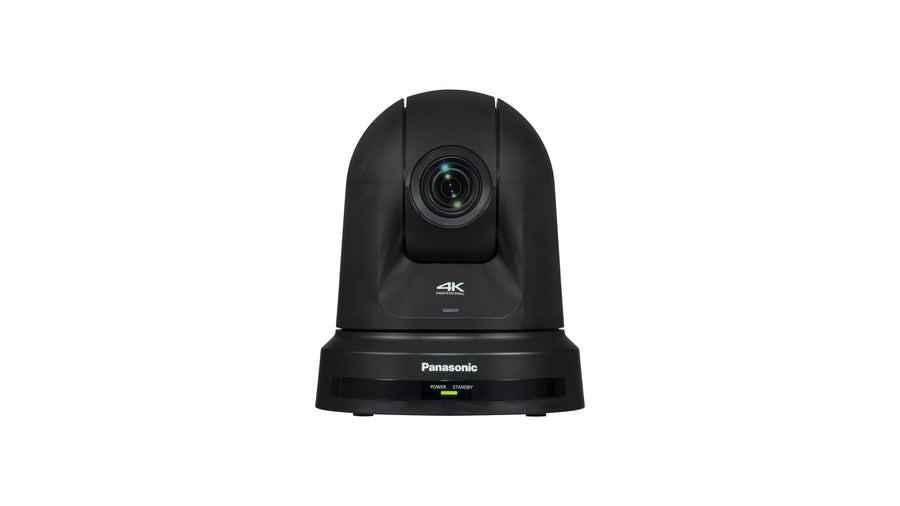

Panasonic AW-UE40 4K PTZ Conference Camera – AW-UE40
The Panasonic AW-UE40 is a 4K PTZ conference camera with a 24x optical zoom, a 1/2.5-type 4K MOS sensor and quiet direct drive pan and tilt. It suits online classes, seminars and video streaming, and supports PoE+ for single-cable power, control and video. Procure.ae supplies the Panasonic AW-UE40 in the UAE.
Core capabilities include a 1/2.5-type MOS sensor with about 8.49 million effective pixels and 4K output at 3840 x 2160 at up to 30p. The motorised 24x optical zoom covers f=4.12 mm to 98.9 mm, and i.Zoom extends the range to 28x in UHD and 36x in Full HD. Digital extender zoom adds 1.4x and 2x. Optical image stabilisation keeps movement smooth, and the 74.1° wide angle of view covers a large indoor space. Pan and tilt speeds reach 180°/s in Fast2 mode.
The Panasonic AW-UE40 suits online classes, seminars and video streaming in large indoor spaces. It installs stand-alone on a desk or suspended from a ceiling, and weighs about 1.8 kg without the ceiling mounting bracket. Control is through a compatible controller or IP over LAN, and the operating system list includes Windows, Mac, iOS and Android. The white AW-UE40W and black AW-UE40K finishes are both listed.
Resolution
1920 x 1080 (Full HD)
Speed
Pan/tilt 60°/s normal, 90°/s fast 1...
Type
PTZ Camera
Weight
1.8 kg
- 4K MOS sensor
- 24x optical zoom
- Wide-angle lens
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K MOS sensor
A 1/2.5-type sensor with about 8.49 million effective pixels for 3840 x 2160 video.
02
24x optical zoom
Motorised 24x lens from f=4.12 mm to 98.9 mm, with i.Zoom to 28x in UHD.
03
Wide-angle lens
A 74.1° horizontal angle of view at the wide end for large indoor spaces.
04
Quiet direct drive system
Pan and tilt with operating noise of NC25 or lower and speeds up to 180°/s.
05
Optical image stabilisation
OIS keeps pan and tilt smooth in busier environments or on a robotic system.
06
PoE+ single-cable solution
Power, control and video over one LAN cable using PoE+ (IEEE 802.3at).
07
HDMI, USB and IP outputs
HDMI 4:2:2 10-bit, USB 2.0 UVC and IP streaming with SRT and RTMP/RTMPS; NDI HX is an optional upgrade.
08
Privacy mode on standby
The lens moves to the back position when the camera is on standby.
Specifications
24 specificationsGeneral
CompatibilityWindows 10, macOS 10.14+, iOS, iPadOS, Android (browser control)
ControlsIP (LAN), RS-422
Key Features24x optical zoom, 3 pan/tilt speed modes, optical image stabilization, UVC USB video, RS-422 and IP control, PoE+ power, H.264 and H.265 streaming, AAC audio streaming
ModelAW-UE40
TypePTZ Camera
Display
Camera1/2.5-type MOS sensor, 8.49 MP effective
Resolution1920 x 1080 (Full HD)
Zoom24x optical; i.Zoom up to 28x (UHD) / 36x (FHD); 1.4x and 2x digital extender
Performance
SpeedPan/tilt 60°/s normal, 90°/s fast 1, 180°/s fast 2
Storage Conditions-20 to 50 °C
Audio
Microphone3.5 mm stereo mic/line input
Connectivity
EthernetRJ-45 (100BASE-TX / 1000BASE-T)
HDMI OutputsHDMI 1.4 (4:2:2 10-bit)
Input Voltage12 V DC (10.8–13.2 V); PoE+ 42–57 V DC
PoEPoE+ (IEEE 802.3at)
ProtocolsIPv4, IPv6, TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTMP, RTMPS, SRT, DHCP, DNS, NTP
Serial PortRS-422 (RJ-45)
USB-C PortsUSB 2.0 device (Type-C, UVC)
Physical
Dimensions160.0 x 192.1 x 166.0 mm
MountingDesktop or suspended (hanging)
Operating Humidity20% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
RotationPan ±175°, tilt -30° to 90°
Weight1.8 kg
Product video
Downloads
Manufacturer documents for the Panasonic AW-UE40 4K PTZ Conference Camera – AW-UE40 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What resolution does the Panasonic AW-UE40 output?
It outputs up to 4K at 25p or 30p, at 3840 x 2160, over HDMI and IP. HDMI is listed as 4:2:2 10-bit. IP image resolution goes up to 1920 x 1080, and the sensor is a 1/2.5-type 4K MOS.
Does the Panasonic AW-UE40 have 24x optical zoom?
Yes. It has a motorised 24x optical zoom with a 35 mm equivalent focal length of 25.0 mm to 600.0 mm. i.Zoom extends the range to 28x in UHD and 36x in Full HD, and digital extender zoom adds 1.4x and 2x.
Does the Panasonic AW-UE40 support PoE?
Yes. It supports PoE+ (IEEE 802.3at) for camera power, control and video over a single cable. It can also run on its supplied 12V DC adapter, with a current draw of 1.8 A on the adapter and 0.6 A on PoE+.
Can the Panasonic AW-UE40 be used with online video platforms?
Yes, as a USB camera. It is UVC-compatible over USB 2.0 Type-C, and with the PTZ Virtual USB driver over a LAN connection it presents video and audio like a USB camera. Platform-by-platform compatibility is not listed in the manufacturer data.
Can the Panasonic AW-UE40 be ceiling mounted?
Yes. It can be installed stand-alone on a desk or suspended from a ceiling, and its weight is given with and without the ceiling mounting bracket. Procure.ae can confirm the bracket and installation options by WhatsApp or email.
