PanasonicMeeting Room SolutionsSKU TY-VUK10
Panasonic Auto Display Adjustment Upgrade Kit – TY-VUK10

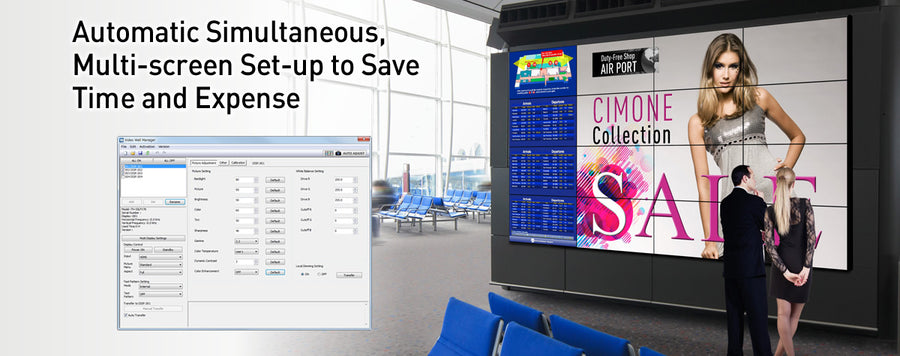

The Panasonic TY-VUK10 is an upgrade kit for Panasonic's Video Wall Manager software that adds camera-based automatic adjustment to multi-screen video walls. It supports selected Panasonic LCD displays, up to 25 units in a 5 x 5 layout, on Windows 10 and Windows 11 PCs. Procure.ae supplies the TY-VUK10 across the UAE.
The kit upgrades Panasonic's free Video Wall Manager software, which adjusts color with a color sensor and manages video wall settings from a PC. Each PC running the software needs its own license key. With the kit, a compatible Nikon DSLR camera can automatically adjust brightness and color balance across flush-mounted displays. Automatic adjustment can then be followed by detailed manual corrections in the software.
Supported color sensors include KONICA MINOLTA CA-210, CA-310 and CA-410, Datacolor Spyder4, Spyder5 and SpyderX, and X-Rite i1Pro2, depending on the Windows version. The sensor itself is optional. The software runs in English, Japanese or Chinese language versions of Windows and needs a 1 GHz processor, 2 GB or 4 GB of memory and 16 GB of free disk space. The manufacturer notes that operation is not guaranteed on home-built computers or with a Guest account.
Type
Video Wall Software Upgrade Kit
- Camera-based auto adjustment
- Color sensor calibration
- Up to 25 displays
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Camera-based auto adjustment
a compatible Nikon DSLR lets the software adjust brightness and color balance across flush-mounted displays.
02
Color sensor calibration
KONICA MINOLTA, Datacolor and X-Rite sensors calibrate display color, with the sensor sold as an option.
03
Up to 25 displays
supports video walls of up to 25 units in a 5 x 5 layout.
04
Per-PC license
activation needs a license key for each PC that runs the software.
05
Free management software
Video Wall Manager is available for free and manages video wall settings from a PC.
Specifications
12 specificationsGeneral
CompatibilitySelected Panasonic LCD display models, up to 25 units
Key FeaturesCamera-based auto adjustment, color sensor calibration, up to 25 displays, English, Japanese and Chinese OS support
ModelTY-VUK10
TypeVideo Wall Software Upgrade Kit
Display
CameraNikon D5200, D5300, D5500, D5600 or D7500 (or successor)
Performance
FunctionsCalibration, adjustment, display settings and video wall management
LicenseLicense key required per PC
Operating SystemWindows 11, Windows 10 (32-bit and 64-bit)
Processor1 GHz or faster
RAM2 GB (32-bit OS) or 4 GB (64-bit OS) minimum
Storage16 GB free disk space or more
Connectivity
ConnectivityRS-232C serial or wired LAN (10/100/1000 Base-T)
Questions
Can’t find your answer? Ask on WhatsApp
Does the TY-VUK10 need a camera?
Only for automatic adjustment. The camera-based function needs a compatible Nikon DSLR, such as the D5200, D5300, D5500, D5600 or D7500, or a successor model. Manual color calibration uses a color sensor instead.
Which Panasonic displays does it support?
It supports selected Panasonic LCD displays, including the SQ1, SF2, LF80 and VF2 series, in layouts of up to 25 units. The SQ1H, SQ2H, EQ2 and EF2 do not support RS-232C, and some LFV models do not support LAN.
Which Windows versions does it run on?
Windows 11 (Pro, 64-bit) and Windows 10 (32-bit and 64-bit, Pro) are supported, in English, Japanese or Chinese language versions. Operation is not guaranteed on home-built computers or with a Guest account.
Can I buy the TY-VUK10 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
