PanasonicMeeting Room SolutionsSKU AW-UE5
Panasonic 4K Wide-Angle PTZ Conference Camera – AW-UE5
The Panasonic AW-UE5 is a compact 4K PTZ conference camera for corporate and educational rooms, remote learning and live event streaming. It has a 121.8-degree horizontal field of view, AI group framing, and NDI HX video over IP alongside PoE. Procure.ae supplies the AW-UE5 across the UAE.
The AW-UE5 uses a 1/2.8-type MOS sensor and a single-focus lens with a horizontal field of view of 121.8 degrees and a vertical field of view of 87.8 degrees, both with LDC off. Its digital zoom reaches 5x. It streams 4K (3840 x 2160) H.264 and H.265 video, with 1920 x 1080 and 1280 x 720 options, and its image streaming modes also include MJPEG and NDI HX. A single LAN cable carries PoE power, control and video. The AI group framing function adjusts the framing automatically to the situation, which reduces the need for detailed operator input.
The AW-UE5 suits corporate and educational spaces, remote classes, event streaming and multi-camera production, where few staff must run the camera. It connects through HDMI, LAN (RJ-45) and USB Type-C, and it can send video over NDI HX to production systems on the network. Panasonic lists the AW-RP60, AW-RP150 and AW-RP200 controllers and the AW-RM50AG infrared remote as supported. The camera can stand on a desk or be suspended from a ceiling, in white (AW-UE5WG) or black (AW-UE5KG).
Resolution
3840 x 2160 (4K UHD)
Type
Conference Camera
Weight
0.5 kg (excluding mount bracket)
- 121-degree ultra-wide lens
- AI group framing
- NDI HX over IP
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
121-degree ultra-wide lens
Horizontal field of view of 121.8 degrees with LDC off, and a vertical field of view of 87.8 degrees.
02
AI group framing
Adjusts the framing automatically to the situation, without detailed operator input.
03
NDI HX over IP
Streams NDI HX video over the network, with PoE supplying power to the camera.
04
Single-cable PoE
PoE (IEEE 802.3at) with a DC 37 V to 57 V input carries power, control and video on one LAN cable.
05
4K UHD streaming
H.264 and H.265 streaming at 3840 x 2160, with 1920 x 1080 and 1280 x 720 modes.
06
Digital zoom and pan
Digital zoom up to 5x, with manual pan of ±110 degrees and tilt of ±25 degrees.
07
Browser-based control
Supports control from Windows 11 and macOS 15 with Microsoft Edge, Chrome or Safari.
08
Built-in stereo microphone
Internal stereo microphone with audio mute and an ALC function.
Specifications
17 specificationsGeneral
CompatibilityAW-RP60, AW-RP150, AW-RP200, AW-RM50AG controllers
Key Features121.8° horizontal field of view, AI group framing, NDI HX streaming, PoE single-cable, 4K UHD H.264/H.265 streaming, 5x digital zoom, Pan ±110° and tilt ±25° (manual)
ModelAW-UE5
TypeConference Camera
Display
Resolution3840 x 2160 (4K UHD)
Zoom5x digital
Performance
Storage Conditions-20 to 50 °C
Audio
MicrophoneStereo, internal
Connectivity
PoEPoE (IEEE 802.3at)

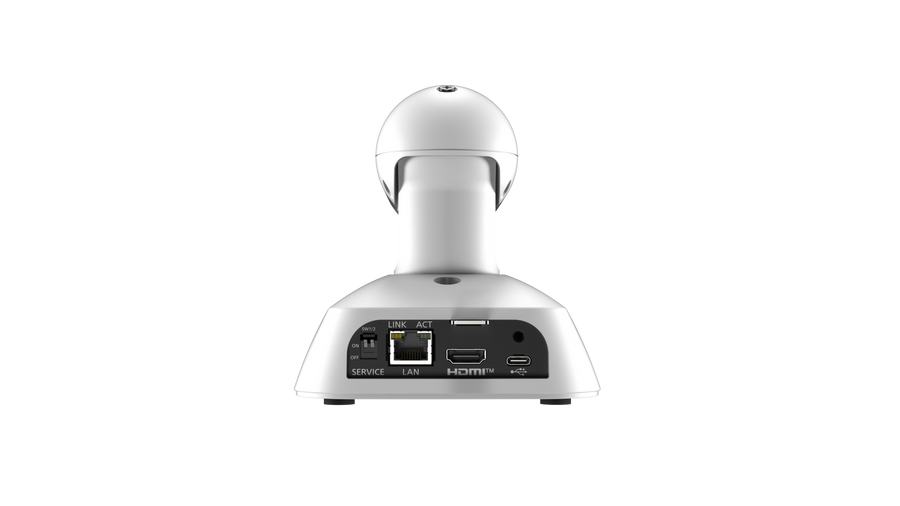

PortsHDMI, LAN (RJ-45), USB Type-C
Power
Power Consumption3.0 A (USB), 0.3 A (PoE)
Physical
ColorWhite or Black
Dimensions123 x 131 x 139 mm (W x H x D)
MountingDesktop or suspended (hanging)
Operating Humidity20% to 90% RH (no condensation)
Operating Temperature0 to 40 °C
Weight0.5 kg (excluding mount bracket)
Downloads
Manufacturer documents for the Panasonic 4K Wide-Angle PTZ Conference Camera – AW-UE5 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the AW-UE5 support NDI?
Yes. The AW-UE5 supports NDI HX video streaming over IP, which lets it send video to network systems that accept NDI. Its other streaming modes are MJPEG, H.264 and H.265, so it also works with standard IP video systems.
What is the field of view of the AW-UE5?
With LDC off, the AW-UE5 has a horizontal field of view of 121.8 degrees, a vertical field of view of 87.8 degrees and a diagonal of 129.5 degrees. It uses a single-focus lens.
Can the AW-UE5 be powered over Ethernet?
Yes. It supports PoE (IEEE 802.3at) with a DC 37 V to 57 V input. It can also run from a USB connection at DC 5 V, which draws 3.0 A.
Is the AW-UE5 suitable for corporate and education rooms?
Yes. Panasonic positions it for corporate and educational use, remote learning and live event streaming. Its group framing and ultra-wide lens suit larger rooms with few operators. It is also listed for multi-camera video production.
Can the AW-UE5 be used with a remote controller?
Yes. Panasonic lists the AW-RP60, AW-RP150 and AW-RP200 remote controllers and the AW-RM50AG infrared remote as supported. The AW-RM50AG is a handheld infrared option for key PTZ camera operations, with an operable range of about 10 metres.
