Panasonic 12G-SDI Terminal Board – TY-SB01QS

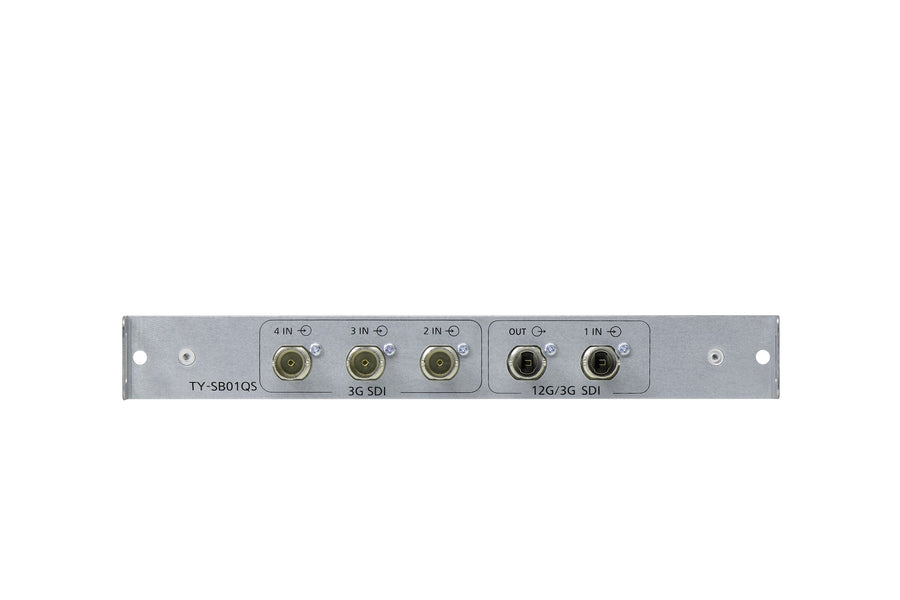

The Panasonic TY-SB01QS is a 12G-SDI terminal board that installs in the slot of a compatible Panasonic display. It adds four BNC SDI inputs and one active-through SDI output, and accepts 12G-SDI, 3G-SDI and HD-SDI signals up to 4096 x 2160 at 60p. Procure.ae, an authorised reseller, supplies it in the UAE.
The board has four BNC SDI inputs (0.8 Vp-p, 75 Ω) and one BNC SDI output that passes through the SDI 1 IN signal. 12G-SDI (SMPTE ST 2082-1 / 2082-10) and its embedded audio are supported on SDI 1 IN only, while SDI 2 to 4 IN are used for Quad Link 3G-SDI and Quad Link HD-SDI. 12G-SDI formats include 3840 and 4096 at 60p, 50p, 30p, 25p and 24p. Embedded audio is 48 kHz, 20/24-bit, with 16 channels on 12G-SDI and 3G-SDI and 8 channels on HD-SDI.

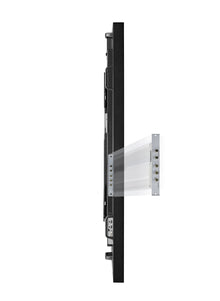

The board does not work by itself: it fits the slot of the corresponding Panasonic display (Intel SDM slot specification) and will not work in other products. Recommended cable is 75 Ω coaxial L-5.5CUHD for 12G and 5C-FB for 3G and HD. Maximum distance is 100 m in and 50 m out in 12G mode, and 100 m in and out in 3G and HD mode. Closed captioning and time code are not supported. Installation by a qualified technician or dealer is recommended.
Resolution
Up to 4096 x 2160 at 60p (12G-SDI)
Type
12G-SDI Terminal Board
Weight
300 g
- Four SDI inputs
- Active-through output
- 12G-SDI support
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Four SDI inputs
SDI 1 to 4 IN on BNC connectors at 0.8 Vp-p (75 Ω), with SDI 2 to 4 used for Quad Link.
02
Active-through output
One BNC SDI OUT passes on the signal received at SDI 1 IN.
03
12G-SDI support
12G-SDI, 3G-SDI and HD-SDI input, including 3840 and 4096 formats up to 60p.
04
Embedded audio
48 kHz, 20/24-bit audio with 16 channels on 12G and 3G-SDI and 8 channels on HD-SDI.
05
Video settings
On compatible displays, the SDI format, signal range, dynamic range (SDR, HDR PQ, HDR HLG) and colour gamut can be set.
06
Compact board
Measures 195 x 25 x 125 mm and weighs 300 g.
Specifications
18 specificationsGeneral
CompatibilityCorresponding Panasonic displays with Intel SDM slot
Key Features4 SDI inputs, active-through SDI output, 12G/3G/HD-SDI, Quad Link, 16-channel embedded audio, HDR (PQ/HLG) setting
ModelTY-SB01QS
Type12G-SDI Terminal Board
What's in the BoxInstruction manual
Display
Color Depth10-bit / 12-bit
ResolutionUp to 4096 x 2160 at 60p (12G-SDI)
Audio
Audio InSDI embedded: 48 kHz, 20/24-bit, 16 ch (12G/3G), 8 ch (HD)
Connectivity
Cable Standard75 Ω coaxial: L-5.5CUHD (12G), 5C-FB (3G/HD)
Connector TypeBNC (75 Ω)
InputsSDI IN × 4 (BNC, 0.8 Vp-p, 75 Ω)
Operating Range12G: 100 m in, 50 m out; 3G/HD: 100 m in and out
OutputsSDI OUT × 1 (BNC, active through)
Protocols12G-SDI, 3G-SDI, HD-SDI, Quad Link 3G-SDI, Quad Link HD-SDI
Physical
Dimensions195 x 25 x 125 mm
Shipping Dimensions319 x 56 x 316 mm
Shipping Weight790 g
Weight300 g
Downloads
Manufacturer documents for the Panasonic 12G-SDI Terminal Board – TY-SB01QS — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the TY-SB01QS work on its own?
No. The TY-SB01QS does not work by itself. It installs in the slot of a compatible Panasonic display and will not work in other products. Some displays do not support its video and audio settings, so Procure.ae can check your display model before you order.
Which SDI formats and resolutions does the TY-SB01QS support?
It supports 12G-SDI at 3840 and 4096 resolutions up to 60p, 3G-SDI at 1080 and 2048 formats up to 60p, and HD-SDI at 1080/30p, 25p, 24p, 60i and 50i. 12G-SDI is accepted on SDI 1 IN only, and SDI 2 to 4 IN are for Quad Link.
What cable and distance should I use with the TY-SB01QS?
Use 75 Ω coaxial cable: L-5.5CUHD for 12G mode and 5C-FB for 3G and HD mode. In 12G mode the maximum distance is 100 m on input and 50 m on output. In 3G and HD mode it is 100 m on both input and output.
Can I buy the Panasonic TY-SB01QS in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
