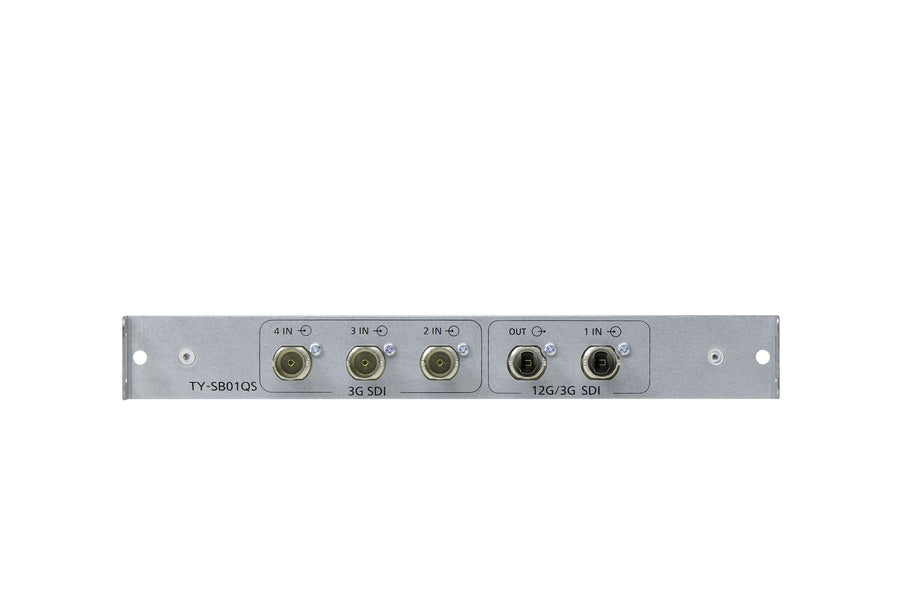

Panasonic 12G-SDI Terminal Board – TY-SB01QS

Panasonic 12G-SDI Terminal Board – TY-SB01QS

The Panasonic TY-SB01QS is a 12G-SDI terminal board that installs in the slot of a compatible Panasonic display. It adds four BNC SDI inputs and one active-through SDI output, and accepts 12G-SDI, 3G-SDI and HD-SDI signals up to 4096 x 2160 at 60p. Procure.ae, an authorised reseller, supplies it in the UAE.

The board has four BNC SDI inputs (0.8 Vp-p, 75 Ω) and one BNC SDI output that passes through the SDI 1 IN signal. 12G-SDI (SMPTE ST 2082-1 / 2082-10) and its embedded audio are supported on SDI 1 IN only, while SDI 2 to 4 IN are used for Quad Link 3G-SDI and Quad Link HD-SDI. 12G-SDI formats include 3840 and 4096 at 60p, 50p, 30p, 25p and 24p. Embedded audio is 48 kHz, 20/24-bit, with 16 channels on 12G-SDI and 3G-SDI and 8 channels on HD-SDI.

The board does not work by itself: it fits the slot of the corresponding Panasonic display (Intel SDM slot specification) and will not work in other products. Recommended cable is 75 Ω coaxial L-5.5CUHD for 12G and 5C-FB for 3G and HD. Maximum distance is 100 m in and 50 m out in 12G mode, and 100 m in and out in 3G and HD mode. Closed captioning and time code are not supported. Installation by a qualified technician or dealer is recommended.

Resolution
Up to 4096 x 2160 at 60p (12G-SDI)
Type
12G-SDI Terminal Board
Weight
300 g

Key features

01
Four SDI inputs
SDI 1 to 4 IN on BNC connectors at 0.8 Vp-p (75 Ω), with SDI 2 to 4 used for Quad Link.
02
Active-through output
One BNC SDI OUT passes on the signal received at SDI 1 IN.
03
12G-SDI support
12G-SDI, 3G-SDI and HD-SDI input, including 3840 and 4096 formats up to 60p.
04
Embedded audio
48 kHz, 20/24-bit audio with 16 channels on 12G and 3G-SDI and 8 channels on HD-SDI.
05
Video settings
On compatible displays, the SDI format, signal range, dynamic range (SDR, HDR PQ, HDR HLG) and colour gamut can be set.
06
Compact board
Measures 195 x 25 x 125 mm and weighs 300 g.

Specifications

General
CompatibilityCorresponding Panasonic displays with Intel SDM slot
Key Features4 SDI inputs, active-through SDI output, 12G/3G/HD-SDI, Quad Link, 16-channel embedded audio, HDR (PQ/HLG) setting
ModelTY-SB01QS
Type12G-SDI Terminal Board
What's in the BoxInstruction manual
Display
Color Depth10-bit / 12-bit
ResolutionUp to 4096 x 2160 at 60p (12G-SDI)
Audio
Audio InSDI embedded: 48 kHz, 20/24-bit, 16 ch (12G/3G), 8 ch (HD)
Connectivity
Cable Standard75 Ω coaxial: L-5.5CUHD (12G), 5C-FB (3G/HD)
Connector TypeBNC (75 Ω)
InputsSDI IN × 4 (BNC, 0.8 Vp-p, 75 Ω)
Operating Range12G: 100 m in, 50 m out; 3G/HD: 100 m in and out
OutputsSDI OUT × 1 (BNC, active through)
Protocols12G-SDI, 3G-SDI, HD-SDI, Quad Link 3G-SDI, Quad Link HD-SDI
Physical
Dimensions195 x 25 x 125 mm
Shipping Dimensions319 x 56 x 316 mm
Shipping Weight790 g
Weight300 g
