VSYS VSVW13-46T Heavy-Duty Push-Pull Video Wall Mount for 45"–70" Displays, 70 kg

The VSYS VSVW13-46T is a heavy-duty push-pull video wall mount for 45"–70" displays weighing up to 70 kg, available in the UAE from Procure.ae.

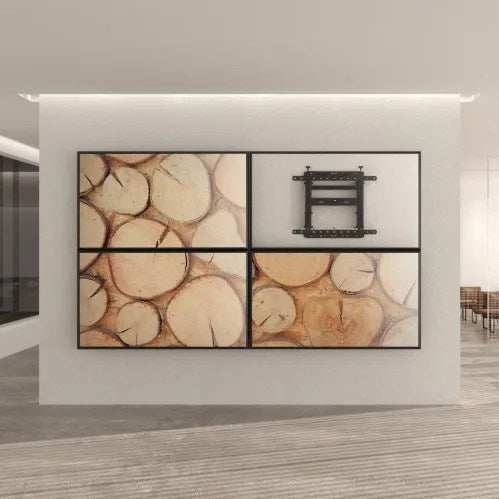

This is the mount specified when the panels in an array are large-format and heavy, and when the wall has to be serviceable for years rather than weeks. Each bracket carries up to 70 kg (154 lbs) on 2 mm cold-rolled steel arms bolted to a 2.5 mm steel wall plate. Because the system is modular, rows and columns can be extended in any configuration, so a four-screen lobby wall and a sixteen-screen control room wall use the same hardware family.

Servicing is done from the front. A push or pull releases the lock and the display travels out on its carriage, moving the panel through a clearance range of 120 mm to 325 mm so an engineer can reach connectors, players and power behind a screen that is still hanging on the wall. Alignment is set with micro-adjusters that give 13.5 mm of depth and 13 mm of height correction per bracket, with a toolless tilt of plus 2 to minus 3 degrees. Panels mount in portrait or landscape, on VESA patterns from 200 x 200 mm to 600 x 400 mm (maximum hole spacing 604 x 405 mm).

It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type
Heavy-Duty Push-Pull Video Wall Mount
  • 70 kg (154 lbs) load rating per bracket, strength tested to four times that figure, for large-format commercial panels in permanent arrays.
  • Push-pull pop-out lock releases the display from the front and returns it to a locked, flush position without tools.
  • Clearance range of 120 mm to 325 mm gives real working room behind the panel for connectors, media players and power.
Price
On request · best price
1
WhatsApp Call
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
70 kg (154 lbs) load rating per bracket, strength tested to four times that figure, for large-format commercial panels in permanent arrays.
02
Push-pull pop-out lock releases the display from the front and returns it to a locked, flush position without tools.
03
Clearance range of 120 mm to 325 mm gives real working room behind the panel for connectors, media players and power.
04

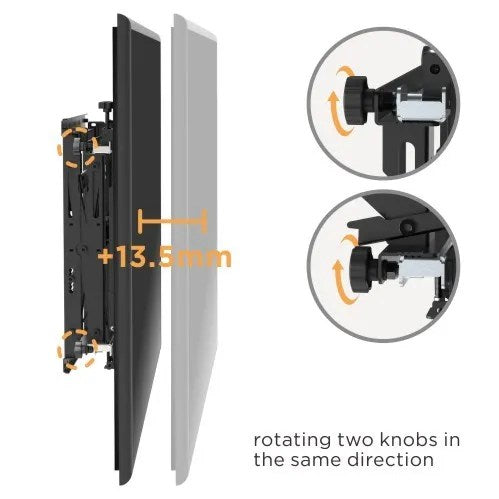

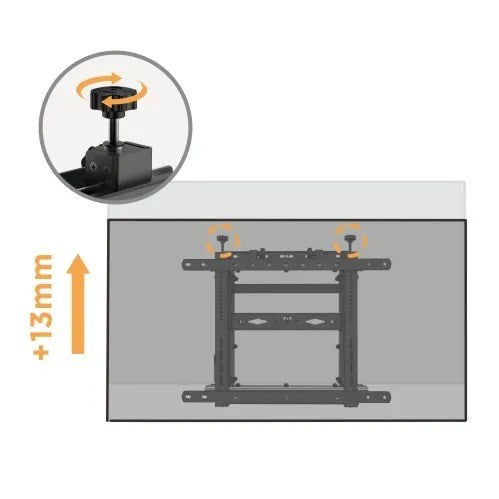

Micro-adjustment of 13.5 mm in depth and 13 mm in height per bracket, which is how bezel gaps are equalised across a finished wall.
05
Portrait or landscape mounting from the same bracket, so one part number covers mixed-orientation signage layouts.
06

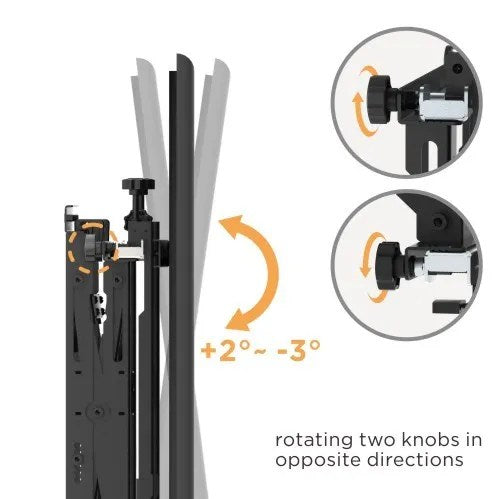

Toolless tilt from plus 2 to minus 3 degrees for setting the viewing plane after the panels are hung.
07
VESA 200 x 200 mm to 600 x 400 mm with a maximum hole spacing of 604 x 405 mm, covering most large-format displays in the class.
08
Modular design that scales across rows and columns without changing mounting hardware.
09
Anti-theft locking design for public-facing walls in malls, transport hubs and civic buildings.
10

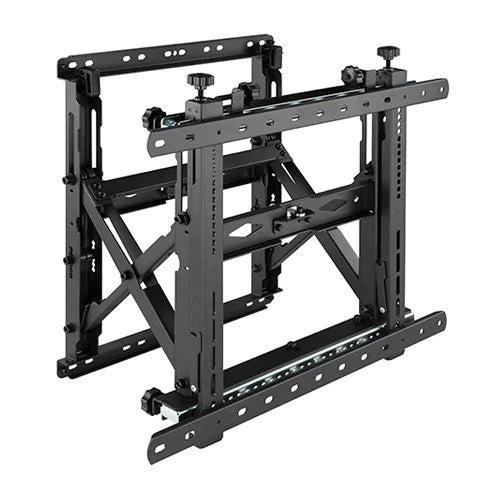

2 mm bracket arms and a 2.5 mm wall plate in cold-rolled steel with a fine-texture black powder coating.

Specifications

16 specifications
General
ModelVSVW13-46T
TypeHeavy-Duty Push-Pull Video Wall Mount
What's in the BoxWall plate, Pop-out bracket arms, Mounting hardware kit, Anti-theft lock fitting, Installation instructions
Display
Supported Screen Sizes45-70" (portrait or landscape)
Physical
AdjustabilityTilt, rotation, extension
Extension120 mm folded to 325 mm extended
FinishFine-texture black powder-coated
Height RangeMicro-adjustment, 13 mm height and 13.5 mm depth
Load Capacity70 kg (154 lb)
Material2 mm cold-rolled steel bracket arms, 2.5 mm steel wall plate
MountingPush-pull pop-out video wall
RotationPortrait/landscape
Tilt-3 to +2°, toolless
VESA Mount200 x 200 to 600 x 400 mm (max hole spread 604 x 405 mm)
Wall FixingSolid wall (wall plate)
Compliance
CertificationsStrength tested to four times rated load

Questions

Can’t find your answer? Ask on WhatsApp

How much weight does each bracket carry?
Up to 70 kg (154 lbs) per display, on 2 mm cold-rolled steel arms and a 2.5 mm steel wall plate, strength tested to four times the rated load. That headroom is what makes it suitable for larger 45" to 70" commercial panels left in place permanently.
How much room does the pop-out give me behind the screen?
The clearance range runs from 120 mm retracted to 325 mm at full extension, which is enough working depth to reach connectors, a media player or a power outlet without taking the panel off the wall.
How precisely can panels be aligned in an array?
Each bracket has 13.5 mm of depth adjustment and 13 mm of height adjustment, plus a toolless tilt of plus 2 to minus 3 degrees. Those ranges let an installer equalise bezel gaps and bring the whole wall into one plane after the plates are fixed.
Can screens be mounted in portrait, and can the wall be extended later?
