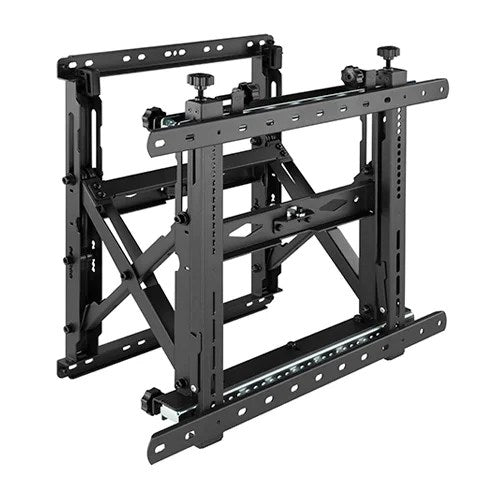

VSYS VSVW13-46T Heavy-Duty Push-Pull Video Wall Mount for 45"–70" Displays, 70 kg

The VSYS VSVW13-46T is a heavy-duty push-pull video wall mount for 45"–70" displays weighing up to 70 kg, available in the UAE from Procure.ae.

This is the mount specified when the panels in an array are large-format and heavy, and when the wall has to be serviceable for years rather than weeks. Each bracket carries up to 70 kg (154 lbs) on 2 mm cold-rolled steel arms bolted to a 2.5 mm steel wall plate. Because the system is modular, rows and columns can be extended in any configuration, so a four-screen lobby wall and a sixteen-screen control room wall use the same hardware family.

Servicing is done from the front. A push or pull releases the lock and the display travels out on its carriage, moving the panel through a clearance range of 120 mm to 325 mm so an engineer can reach connectors, players and power behind a screen that is still hanging on the wall. Alignment is set with micro-adjusters that give 13.5 mm of depth and 13 mm of height correction per bracket, with a toolless tilt of plus 2 to minus 3 degrees. Panels mount in portrait or landscape, on VESA patterns from 200 x 200 mm to 600 x 400 mm (maximum hole spacing 604 x 405 mm).

It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type

Heavy-Duty Push-Pull Video Wall Mount

Key features

70 kg (154 lbs) load rating per bracket, strength tested to four times that figure, for large-format commercial panels in permanent arrays.

Push-pull pop-out lock releases the display from the front and returns it to a locked, flush position without tools.

Clearance range of 120 mm to 325 mm gives real working room behind the panel for connectors, media players and power.

Micro-adjustment of 13.5 mm in depth and 13 mm in height per bracket, which is how bezel gaps are equalised across a finished wall.

Portrait or landscape mounting from the same bracket, so one part number covers mixed-orientation signage layouts.

Toolless tilt from plus 2 to minus 3 degrees for setting the viewing plane after the panels are hung.

VESA 200 x 200 mm to 600 x 400 mm with a maximum hole spacing of 604 x 405 mm, covering most large-format displays in the class.

Modular design that scales across rows and columns without changing mounting hardware.

Anti-theft locking design for public-facing walls in malls, transport hubs and civic buildings.

2 mm bracket arms and a 2.5 mm wall plate in cold-rolled steel with a fine-texture black powder coating.

Specifications

General
Model	VSVW13-46T
Type	Heavy-Duty Push-Pull Video Wall Mount
What's in the Box	Wall plate, Pop-out bracket arms, Mounting hardware kit, Anti-theft lock fitting, Installation instructions

Display
Supported Screen Sizes	45-70" (portrait or landscape)

Physical
Adjustability	Tilt, rotation, extension
Extension	120 mm folded to 325 mm extended
Finish	Fine-texture black powder-coated
Height Range	Micro-adjustment, 13 mm height and 13.5 mm depth
Load Capacity	70 kg (154 lb)
Material	2 mm cold-rolled steel bracket arms, 2.5 mm steel wall plate
Mounting	Push-pull pop-out video wall
Rotation	Portrait/landscape
Tilt	-3 to +2°, toolless
VESA Mount	200 x 200 to 600 x 400 mm (max hole spread 604 x 405 mm)
Wall Fixing	Solid wall (wall plate)

Compliance
Certifications	Strength tested to four times rated load
