OneScreenMeeting Room SolutionsSKU Wall Mount

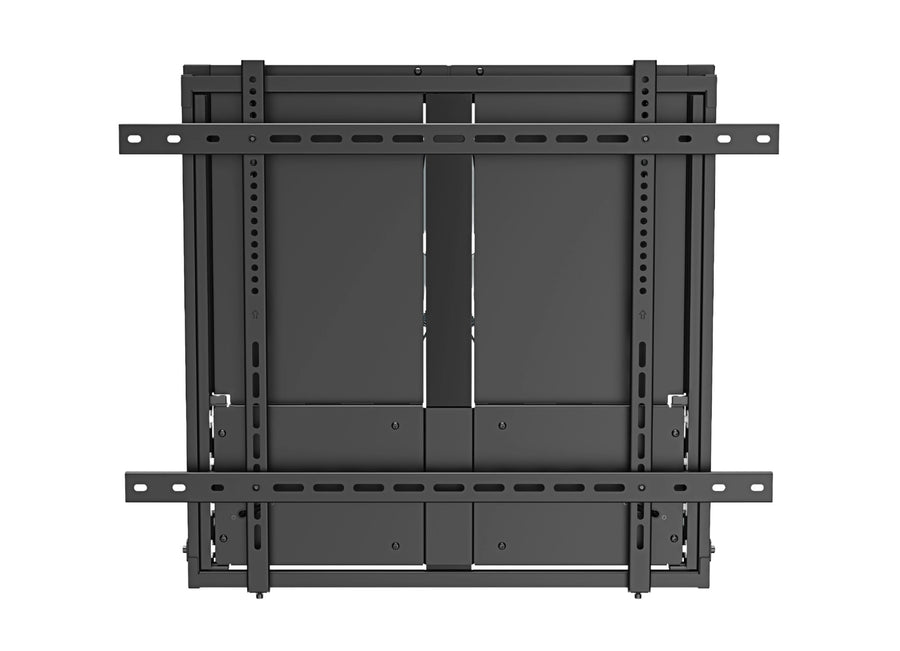

OneScreen Wall Mount for 75-90-inch Touchscreens
The OneScreen Wall Mount is a fixed wall mount for touchscreens from 75 to 90 inches. It has a load capacity of 59.9 to 89.8 kg (132 to 198 lbs), supports VESA and universal hole patterns, and adjusts height by 399 mm. Procure.ae supplies the OneScreen Wall Mount in the UAE, with quotes, delivery and installation.
The mount holds touchscreens from 75 to 90 inches on a fixed wall plate made of aluminum and steel, with a load capacity of 59.9 to 89.8 kg (132 to 198 lbs). It supports VESA hole patterns of 400 x 200, 400 x 300, 400 x 400 and 400 x 600 mm, plus universal mounting holes, so the panel's rear pattern can be matched. Height adjusts by 399 mm (15.7 inches), and the panel sits 4.2 inches (107 mm) from the wall.
Type
Wall Mount
Weight
28.0 kg (61.7 lbs)
- Size Range
- Load Capacity
- VESA and Universal Holes
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Size Range
Fits touchscreens from 75 to 90 inches.
02
Load Capacity
Rated 59.9 to 89.8 kg (132 to 198 lbs).
03
VESA and Universal Holes
Patterns from 400 x 200 mm to 400 x 600 mm.
04
Height Adjustment
399 mm (15.7-inch) adjustment range.
05
Low Profile
Panel sits 4.2 inches (107 mm) from the wall.
06
Wall Installation
Solid wall or double stud at 406 mm or 450 mm spacing.
Specifications
13 specificationsGeneral
Key FeaturesFixed wall plate, direction indicator, VESA and universal holes, 107 mm wall profile, 399 mm height adjustment
ModelWall Mount
TypeWall Mount
Display
Supported Screen Sizes75 inch to 90 inch
Physical
ColorMatte black
FinishPowder coating
Height Range399 mm (15.7 inch)
Load Capacity59.9 to 89.8 kg (132 to 198 lbs)
MaterialAluminum and steel
Shipping Weight32.0 kg (70.6 lbs)
VESA Mount400 x 200, 400 x 300, 400 x 400, 400 x 600 mm
Wall FixingSolid wall or double stud, 406 mm or 450 mm spacing
Weight28.0 kg (61.7 lbs)
Downloads
Manufacturer documents for the OneScreen Wall Mount for 75-90-inch Touchscreens — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which screen sizes does the OneScreen wall mount support?
The mount supports touchscreens from 75 to 90 inches. Check the panel's rear hole pattern against the listed VESA patterns: 400 x 200, 400 x 300, 400 x 400 and 400 x 600 mm.
Does the mount support VESA hole patterns?
Yes. The mount has VESA and universal mounting holes, compatible with 400 x 200, 400 x 300, 400 x 400 and 400 x 600 mm patterns. Measure the panel's rear hole spacing before ordering and confirm it matches one of these patterns.
Can it be installed on a solid wall and a double stud wall?
Yes. The manufacturer lists installation on a solid wall or a double stud wall, with 406 mm (16-inch) or 450 mm (17.7-inch) stud spacing. Confirm the wall type and stud spacing before installation so the correct spacing is used.
