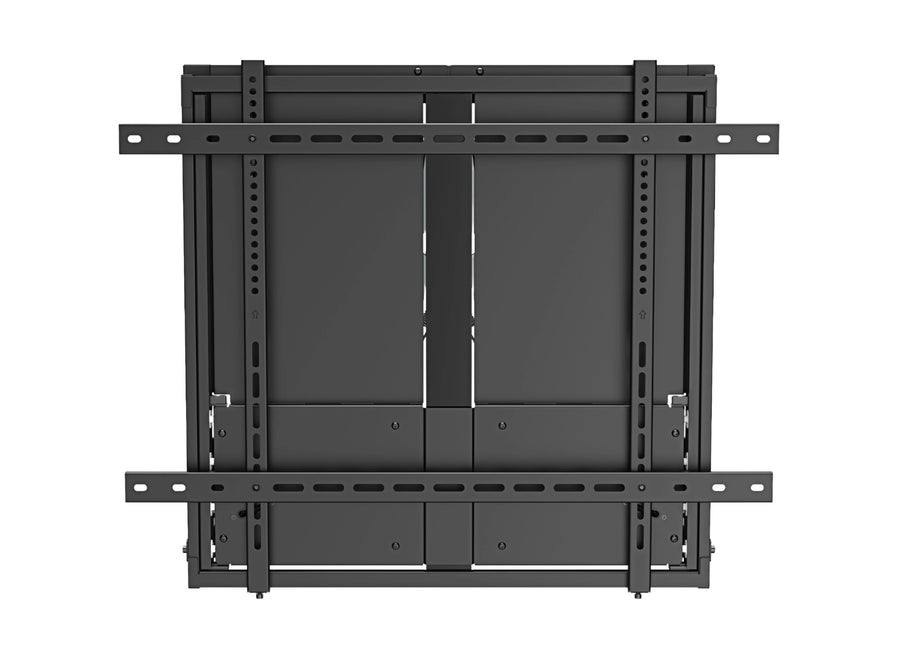

OneScreen Wall Mount for 75-90-inch Touchscreens
The OneScreen Wall Mount is a fixed wall mount for touchscreens from 75 to 90 inches. It has a load capacity of 59.9 to 89.8 kg (132 to 198 lbs), supports VESA and universal hole patterns, and adjusts height by 399 mm. Procure.ae supplies the OneScreen Wall Mount in the UAE, with quotes, delivery and installation.
The mount holds touchscreens from 75 to 90 inches on a fixed wall plate made of aluminum and steel, with a load capacity of 59.9 to 89.8 kg (132 to 198 lbs). It supports VESA hole patterns of 400 x 200, 400 x 300, 400 x 400 and 400 x 600 mm, plus universal mounting holes, so the panel's rear pattern can be matched. Height adjusts by 399 mm (15.7 inches), and the panel sits 4.2 inches (107 mm) from the wall.
Key features
Specifications
| Key Features | Fixed wall plate, direction indicator, VESA and universal holes, 107 mm wall profile, 399 mm height adjustment |
| Model | Wall Mount |
| Type | Wall Mount |
| Supported Screen Sizes | 75 inch to 90 inch |
| Color | Matte black |
| Finish | Powder coating |
| Height Range | 399 mm (15.7 inch) |
| Load Capacity | 59.9 to 89.8 kg (132 to 198 lbs) |
| Material | Aluminum and steel |
| Shipping Weight | 32.0 kg (70.6 lbs) |
| VESA Mount | 400 x 200, 400 x 300, 400 x 400, 400 x 600 mm |
| Wall Fixing | Solid wall or double stud, 406 mm or 450 mm spacing |
| Weight | 28.0 kg (61.7 lbs) |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
