OneScreen Touchscreen TL6 Education 86-inch 4K Interactive Flat Panel
The OneScreen Touchscreen TL6 Education 86-inch is a 4K interactive flat panel for classrooms. It has a 3840 x 2160 LG panel, 20-point infrared touch and Android 8.0 with Google Play, plus simple annotation, screen sharing and recording apps. The model is discontinued; Procure.ae supplies OneScreen products in the UAE and can confirm availability.
The 86-inch OneScreen Touchscreen TL6 Education (model TL6-86) uses an LG 3840 x 2160 LED panel at 60 Hz with 350 cd/m² brightness, a typical contrast ratio of 1200:1 and 178°/178° viewing angles. Infrared touch tracks 20 points with accuracy under 2 mm and a response time under 8 ms. Android 8.0 runs on a Cortex A73 x2 and A53 x2 1.5 GHz processor with 3 GB DDR3 and 32 GB flash, and two 15 W speakers add surround sound with an equalizer.

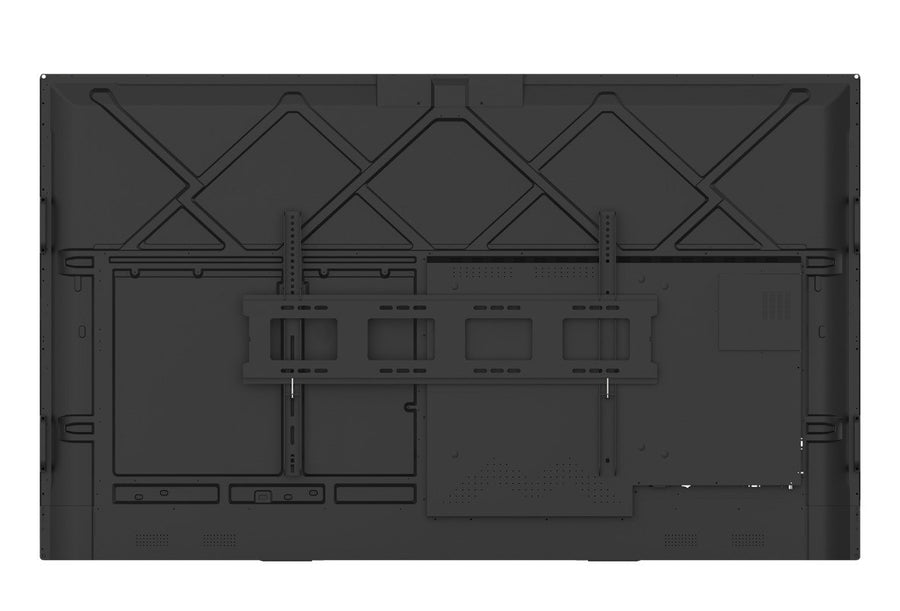

OneScreen positions the TL6 Education as a minimal classroom display: touch, share, write and annotate on one easy-to-use device. Inputs include 2 x HDMI, VGA, YPbPr, AV and 2 x RJ45, with RS232, Bluetooth 4.1 and dual-band Wi-Fi. A Windows 10 OPS PC is optional. The 86-inch panel mounts on a 800 x 400 mm VESA pattern, and EShare lets up to 9 screens share at once.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Touch Technology
Infrared
- 4K LG panel
- 20-point infrared touch
- Android 8.0 with Google Play
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K LG panel
86-inch 3840 x 2160 display with 60 Hz refresh, 350 cd/m² brightness and 10-bit color.
02
20-point infrared touch
Accuracy under 2 mm and a response time under 8 ms.
03
Android 8.0 with Google Play
Full access to Android apps including Chrome and YouTube, with multi-user login.
04
Annotation and recording
OneScreen Annotate, OneScreen Write and a built-in screen recorder are included.
05
EShare screen sharing
Up to 9 screens share simultaneously, with password protection and view-only or control access.
06
Built-in sound
Two 15 W speakers with surround sound and an equalizer.
07
Wide connectivity
2 x HDMI, VGA, YPbPr, AV, 2 x RJ45, RS232, 2 x USB 2.0 and 2 x front USB 3.0.
08
Temperature protection
The internal temperature is displayed and the unit shuts down automatically if it fails or runs too hot.
Specifications
48 specificationsGeneral
ApplicationClassroom / education
Key Features20-point IR touch, Android 8.0 with Google Play, 4K UHD LG panel, EShare screen sharing (up to 9 screens), built-in screen recorder, 2 × 15 W speakers, OPS PC support, temperature protection
ModelTouchscreen TL6 Education 86
TypeInteractive Flat Panel
What's in the Box2 stylus pens, 1 extendible stylus, remote control, power cord, HDMI cable, USB touch cable
Display
Aspect Ratio16:9
BacklightLED
Brightness350 nits
Color Depth10-bit (1.07 billion colors)
Contrast Ratio1,200:1 (typical)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size86 inch
Touch Accuracy< 2 mm
Touch Points20-point multi-touch
Touch Resolution32768 x 32768
Touch Response Time< 8 ms
Touch TechnologyInfrared
Viewing Angle178° / 178°
Performance
Operating SystemAndroid 8.0
ProcessorCortex A73 x2 + A53 x2, 1.5 GHz
RAM3 GB DDR3
Storage32 GB
Storage Conditions-20 to 60 °C, 10% to 90% RH
Audio
Audio InVGA audio × 1, AV in × 1
Audio Out3.5 mm earphone × 1, AV out × 1
Speaker Configuration2 × 15 W speakers, surround sound, equalizer
Speaker Output2 × 15 W
Connectivity
BluetoothBluetooth 4.1
EthernetRJ45 × 2
HDMI InputsHDMI × 2
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS PC support (optional Windows 10 OPS PC)
PortsHDMI In × 2, VGA In × 1, YPbPr In × 1, AV In × 1, AV Out × 1, RS232 × 1, RJ45 × 2, Touch USB × 1, USB 2.0 × 2, USB 3.0 × 2
Serial PortRS232 × 1
Touch USB PortsTouch USB × 1
USB PortsUSB 2.0 × 2, USB 3.0 × 2 (front)
VGA InputVGA × 1
Wi-FiWi-Fi 2.4 GHz / 5 GHz (hotspot supported)
Power
Power Consumption≤ 410 W (rated)
Standby Power< 1 W
Physical
Dimensions1953 x 1161 x 92 mm
Operating Humidity10% to 90% RH
Operating Temperature-10 to 50 °C
Shipping Dimensions2156 x 1327 x 225 mm
Shipping Weight95.0 kg
VESA Mount800 x 400 mm
Weight74.0 kg
Downloads
Manufacturer documents for the OneScreen Touchscreen TL6 Education 86-inch 4K Interactive Flat Panel — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and brightness does the OneScreen Touchscreen TL6 Education 86 have?
The 86-inch panel is an LG LED display at 3840 x 2160 (4K UHD) with a 60 Hz refresh rate. Brightness is 350 cd/m², typical contrast is 1200:1 and viewing angles are 178°/178°. Color depth is 10-bit, giving 1.07 billion colors.
What operating system does the OneScreen Touchscreen TL6 Education 86 run?
It runs Android 8.0 with full access to the Google Play store and multi-user login, so apps such as Chrome and YouTube install directly. The hardware is a Cortex A73 x2 and A53 x2 1.5 GHz processor with 3 GB DDR3 and 32 GB flash storage.
How many touch points does the OneScreen Touchscreen TL6 Education 86 support?
It supports 20 touch points using infrared touch, with accuracy under 2 mm, a response time under 8 ms and a 32768 x 32768 touch resolution. Gestures: wipe-to-erase hand gesture. Two stylus pens and one extendible stylus are supplied.
Which ports does the OneScreen Touchscreen TL6 Education 86 have, and can I connect a PC?
It has 2 x HDMI in, VGA in with VGA audio, YPbPr, AV in and out, 2 x RJ45, RS232, a touch USB port, 2 x USB 2.0 and 2 x front USB 3.0, plus a 3.5 mm earphone output. A Windows 10 OPS PC is optional.
What VESA pattern, weight and power rating does the 86-inch TL6 have?
It mounts on a 800 x 400 mm VESA pattern. The unit measures about 1953 x 1161 x 92 mm and weighs 74.0 kg, and power is rated at up to 410 W on 100–240 V AC, with standby under 1 W. Procure.ae can arrange delivery and installation across the UAE.
