OneScreen Touchscreen TL6 Education 86-inch 4K Interactive Flat Panel
The OneScreen Touchscreen TL6 Education 86-inch is a 4K interactive flat panel for classrooms. It has a 3840 x 2160 LG panel, 20-point infrared touch and Android 8.0 with Google Play, plus simple annotation, screen sharing and recording apps. The model is discontinued; Procure.ae supplies OneScreen products in the UAE and can confirm availability.
The 86-inch OneScreen Touchscreen TL6 Education (model TL6-86) uses an LG 3840 x 2160 LED panel at 60 Hz with 350 cd/m² brightness, a typical contrast ratio of 1200:1 and 178°/178° viewing angles. Infrared touch tracks 20 points with accuracy under 2 mm and a response time under 8 ms. Android 8.0 runs on a Cortex A73 x2 and A53 x2 1.5 GHz processor with 3 GB DDR3 and 32 GB flash, and two 15 W speakers add surround sound with an equalizer.

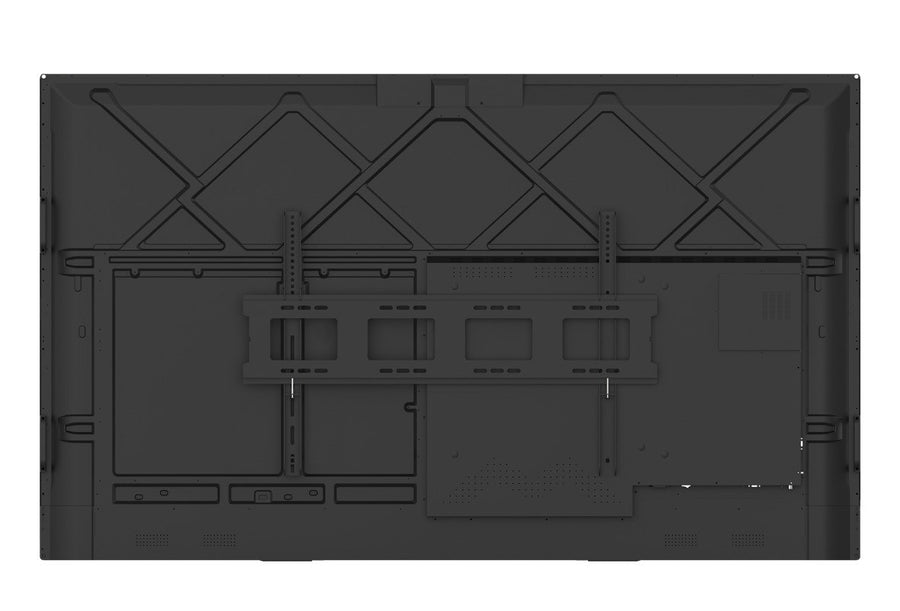

OneScreen positions the TL6 Education as a minimal classroom display: touch, share, write and annotate on one easy-to-use device. Inputs include 2 x HDMI, VGA, YPbPr, AV and 2 x RJ45, with RS232, Bluetooth 4.1 and dual-band Wi-Fi. A Windows 10 OPS PC is optional. The 86-inch panel mounts on a 800 x 400 mm VESA pattern, and EShare lets up to 9 screens share at once.
Key features
Specifications
| Application | Classroom / education |
| Key Features | 20-point IR touch, Android 8.0 with Google Play, 4K UHD LG panel, EShare screen sharing (up to 9 screens), built-in screen recorder, 2 × 15 W speakers, OPS PC support, temperature protection |
| Model | Touchscreen TL6 Education 86 |
| Type | Interactive Flat Panel |
| What's in the Box | 2 stylus pens, 1 extendible stylus, remote control, power cord, HDMI cable, USB touch cable |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | 350 nits |
| Color Depth | 10-bit (1.07 billion colors) |
| Contrast Ratio | 1,200:1 (typical) |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Screen Size | 86 inch |
| Touch Accuracy | < 2 mm |
| Touch Points | 20-point multi-touch |
| Touch Resolution | 32768 x 32768 |
| Touch Response Time | < 8 ms |
| Touch Technology | Infrared |
| Viewing Angle | 178° / 178° |
| Operating System | Android 8.0 |
| Processor | Cortex A73 x2 + A53 x2, 1.5 GHz |
| RAM | 3 GB DDR3 |
| Storage | 32 GB |
| Storage Conditions | -20 to 60 °C, 10% to 90% RH |
| Audio In | VGA audio × 1, AV in × 1 |
| Audio Out | 3.5 mm earphone × 1, AV out × 1 |
| Speaker Configuration | 2 × 15 W speakers, surround sound, equalizer |
| Speaker Output | 2 × 15 W |
| Bluetooth | Bluetooth 4.1 |
| Ethernet | RJ45 × 2 |
| HDMI Inputs | HDMI × 2 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| OPS Slot | OPS PC support (optional Windows 10 OPS PC) |
| Ports | HDMI In × 2, VGA In × 1, YPbPr In × 1, AV In × 1, AV Out × 1, RS232 × 1, RJ45 × 2, Touch USB × 1, USB 2.0 × 2, USB 3.0 × 2 |
| Serial Port | RS232 × 1 |
| Touch USB Ports | Touch USB × 1 |
| USB Ports | USB 2.0 × 2, USB 3.0 × 2 (front) |
| VGA Input | VGA × 1 |
| Wi-Fi | Wi-Fi 2.4 GHz / 5 GHz (hotspot supported) |
| Power Consumption | ≤ 410 W (rated) |
| Standby Power | < 1 W |
| Dimensions | 1953 x 1161 x 92 mm |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | -10 to 50 °C |
| Shipping Dimensions | 2156 x 1327 x 225 mm |
| Shipping Weight | 95.0 kg |
| VESA Mount | 800 x 400 mm |
| Weight | 74.0 kg |
