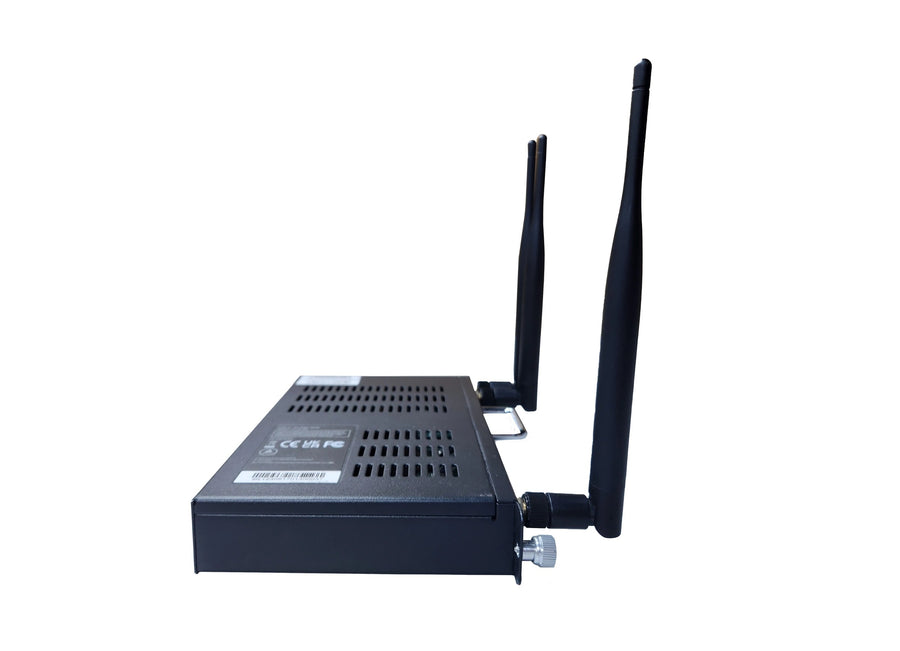

OneScreen OPS for Android – Android 13 OPS Computing Module
The OneScreen OPS for Android is a plug-in OPS computing module that adds Android 13 (EDLA certified) to an existing interactive flat panel. It has an octa-core CPU, 8 GB RAM, 128 GB storage, Wi-Fi 6 and Bluetooth 5.2, with HDMI 2.0 4K at 60 Hz in and out. This first-generation model is discontinued; Procure.ae can confirm UAE availability.
The OPS for Android uses an octa-core CPU with a Mali G57 MC5 GPU and a 4.8 TOPS NPU, 8 GB RAM and 128 GB storage. It provides Gigabit Ethernet, Wi-Fi 6 (2.4 GHz and 5 GHz) with hotspot capability, Bluetooth 5.2, 3 × USB 3.0 Type-A, 1 × USB Type-C, HDMI 2.0 in and out at 4K and 60 Hz, a 3.5 mm audio input and a 3.5 mm line output. Rated power is 35 W from a 12–19 V DC supply.
The module is intended to refresh OneScreen Touchscreen TL6 and earlier models, and the installation guide also covers the OneScreen TL7 and interactive flat panels from other manufacturers that have an OPS slot. It comes in small form (180 x 118 x 30 mm) and large form (192 x 180 x 42 mm) versions. Android 13 includes Google Play access, Play Protect, single sign-in for Google and Microsoft 365 applications and individual user profiles.
Type
Android OPS Module
Weight
0.75 kg (small form); 1.21 kg (larg...
- Android 13 EDLA Certified
- Octa-Core Processing
- Wired and Wireless Networking
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 13 EDLA Certified
Google-certified Android 13 with Google Play Store access, upgradeable to Android 15 according to the installation guide.
02
Octa-Core Processing
Octa-core CPU with a Mali G57 MC5 GPU, a 4.8 TOPS NPU, 8 GB RAM and 128 GB storage.
03
Wired and Wireless Networking
Gigabit Ethernet, Wi-Fi 6 with hotspot capability and Bluetooth 5.2.
04
4K Video Ports
HDMI 2.0 input and output, each supporting 4K at 60 Hz.
05
Expansion Ports
3 × USB 3.0 Type-A, 1 × USB Type-C (host 3.0, data only), RJ45 and 3.5 mm audio in and line out.
06
Two Form Factors
Small form (0.75 kg) and large form (1.21 kg) module sizes for different panels.
Specifications
28 specificationsGeneral
CompatibilityOneScreen Touchscreen TL6 and earlier, OneScreen TL7, OPS slots of other interactive panels
Key FeaturesAndroid 13 EDLA, octa-core CPU, 4.8 TOPS NPU, Wi-Fi 6, Bluetooth 5.2, HDMI 2.0 4K at 60 Hz in and out, small and large form
ModelOPS for Android
TypeAndroid OPS Module
Performance
GraphicsMali G57 MC5 GPU, NPU 4.8 TOPS
Operating SystemAndroid 13 (EDLA certified)
ProcessorOcta-core CPU
RAM8 GB
Storage128 GB
Storage Conditions-20 to 60 °C, 10% to 90% non-condensing
Audio
Audio In3.5 mm earphone audio in × 1
Audio Out3.5 mm line out × 1
Connectivity
BluetoothBluetooth 5.2
EthernetGigabit Ethernet (1000 Mbps), RJ45 × 1
HDMI InputsHDMI 2.0 In × 1 (4K at 60 Hz)
HDMI OutputsHDMI 2.0 Out × 1 (4K at 60 Hz)
Input Voltage12–19 V DC (3 A to 1.84 A)
PortsHDMI In × 1, HDMI Out × 1, USB 3.0 × 3, USB-C × 1, RJ45 × 1, 3.5 mm audio in × 1, 3.5 mm line out × 1
USB PortsUSB 3.0 Type-A × 3, USB Type-C × 1 (host 3.0, data only)
Wi-FiWi-Fi 6 (2.4 GHz and 5 GHz) with hotspot capability
Power
Power Consumption35 W (rated)
Physical
Dimensions180 x 118 x 30 mm (small form); 192 x 180 x 42 mm (large form)
Form FactorOPS, small form and large form
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature0 to 40 °C
Shipping Dimensions245 x 186 x 57 mm (small form); 250 x 261 x 67 mm (large form)
Shipping Weight1.0 kg (small form); 1.47 kg (large form)
Weight0.75 kg (small form); 1.21 kg (large form)
Downloads
Manufacturer documents for the OneScreen OPS for Android – Android 13 OPS Computing Module — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which interactive panels is the OneScreen OPS for Android compatible with?
It is designed to upgrade OneScreen Touchscreen TL6 and earlier models, and the installation guide covers the OneScreen TL7 and interactive flat panels from other manufacturers that have an OPS slot. Confirm the slot size (small or large form) with Procure.ae before ordering.
What are the main specifications of the OneScreen OPS for Android?
It has an octa-core CPU, Mali G57 MC5 GPU, 4.8 TOPS NPU, 8 GB RAM, 128 GB storage and Android 13 (EDLA certified). Connectivity is Gigabit Ethernet, Wi-Fi 6 and Bluetooth 5.2. Rated power consumption is 35 W.
How is the OneScreen OPS for Android installed?
First screw the Wi-Fi antennas onto the module by hand. Then remove the OPS cover on the panel, slide the module into the OPS slot with the fan grill facing outwards, and switch the panel source to OPS. Procure.ae can arrange installation in the UAE.
