OneScreenMeeting Room SolutionsSKU Sensor Box
OneScreen NFC Motion Sensor Add-on – Sensor Box

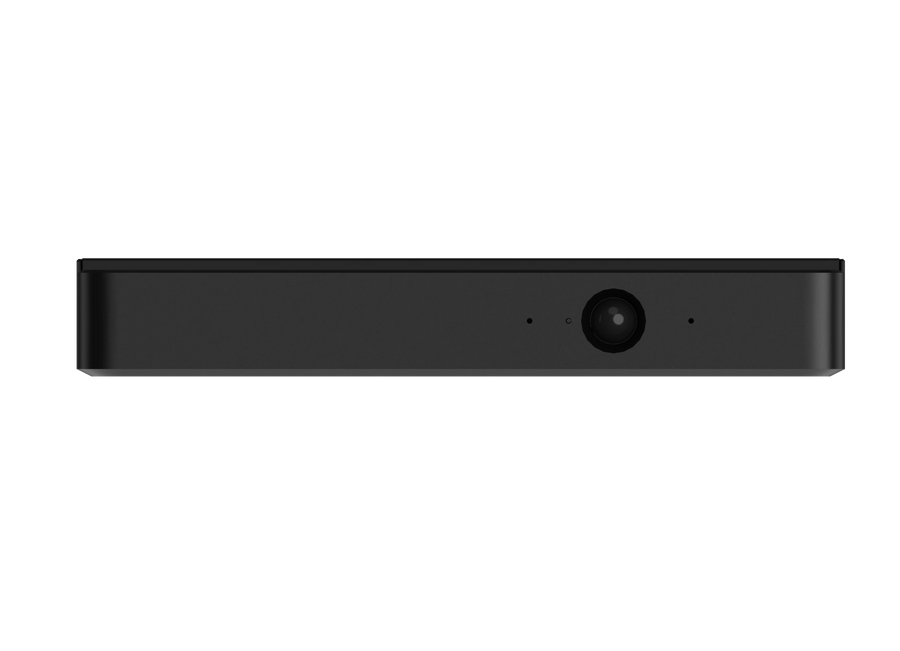

The OneScreen Sensor Box is an NFC-enabled motion-sensor add-on for OneScreen touchscreens. It detects motion from 0 to 16 feet away, wakes the screen when someone approaches and powers it off after a period of inactivity. Procure.ae supplies the Sensor Box across the UAE.
The Sensor Box has a 0 to 80 degree horizontal detection angle and a response time under 2 seconds. Its NFC support covers the ISO/IEC 14443 and ISO/IEC 15693 standards, which can be used to log in to a OneScreen account. The unit draws a maximum of 5 W from a 5 V, 1 A input. It measures 206 x 69 x 32 mm, and its packaged weight is 390 g.
Type
NFC Sensor Box
Weight
181 g
- Motion detection
- Screen wake-up
- Inactivity power-off
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Motion detection
Detects movement from 0 to 16 feet (0 to 4.9 m) with a 0 to 80 degree horizontal angle.
02
Screen wake-up
Wakes the screen when motion is detected.
03
Inactivity power-off
Powers the screen off after a period of inactivity.
04
NFC account login
Supports NFC login to a OneScreen account under ISO/IEC 14443 and 15693.
05
Low power draw
Consumes a maximum of 5 W from a 5 V, 1 A power input.
Specifications
13 specificationsGeneral
Key FeaturesMotion detection, Screen wake-up on motion, Power-off after inactivity, NFC login to OneScreen account, 0 to 80 degree horizontal detection angle
ModelSensor Box
TypeNFC Sensor Box
Display
Response TimeUnder 2 s
Connectivity
ConnectivityNFC
Input Voltage5 V DC, 1 A
Operating Range0 to 4.9 m (0 to 16 ft)
ProtocolsISO/IEC 14443, ISO/IEC 15693
Power
Power Consumption5 W (maximum)
Physical
Dimensions206 x 69 x 32 mm (L x W x H)
Shipping Dimensions275 x 228 x 63 mm
Shipping Weight390 g
Weight181 g
Downloads
Manufacturer documents for the OneScreen NFC Motion Sensor Add-on – Sensor Box — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the Sensor Box turn the screen off when a room is empty?
Yes. The Sensor Box can power the screen off after a period of inactivity and wake it when motion is detected. The manufacturer's specifications do not state the inactivity timeout, so confirm the setting with Procure.ae before installation.
What is the detection range of the Sensor Box?
The Sensor Box detects motion from 0 to 16 feet (0 to 4.9 m) with a 0 to 80 degree horizontal detection angle. Position it so people approaching the screen fall inside that angle. Its response time is under 2 seconds.
Does the Sensor Box need its own power supply?
Yes, it needs a 5 V, 1 A power input and draws a maximum of 5 W. The manufacturer's specifications do not state a mounting kit or cable length, so ask Procure.ae about mounting before installation.
Can I buy the Sensor Box in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
