OneScreenInteractive Flat PanelsSKU Hubware H5 98

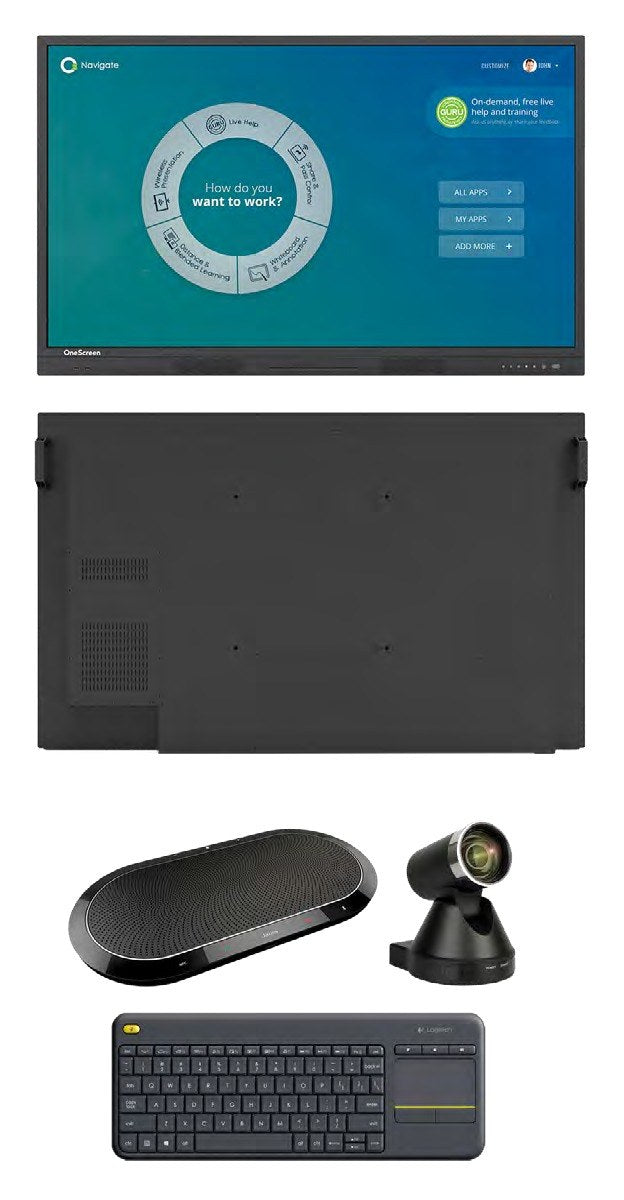

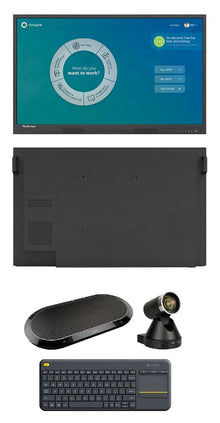

OneScreen Hubware H5 98-inch Interactive Flat Panel with OPS PC
The OneScreen Hubware H5 98 is a 98-inch 4K UHD interactive flat panel with an integrated OPS PC (Intel i7 7th Gen, 8 GB RAM, 256 GB SSD, Windows 10 Pro), an Android 6 system, a 1080p PTZ camera and 20-point infrared touch. It suits large meeting and training rooms. Procure.ae supplies the Hubware H5 98 in the UAE.
The 98-inch panel is an original LG IPS LED unit at 3840 x 2160 and 60 Hz with brightness of at least 400 cd/m², 10-bit colour (1.06 billion colours), a 0.5622 mm pixel pitch and 178° viewing angles, behind 8 Mohs anti-glare glass. Touch is 20-point infrared for finger or stylus, with 2 mm accuracy and a response time under 8 ms. Dolby stereo speakers deliver 15 W per channel, and a 1080p PTZ camera with 12x optical zoom and a speakerphone with adaptive array microphones (15 ft / 4.6 m range) cover conferencing.
The H5 runs Android 6 with full Google Play Store access alongside an OPS PC with Windows 10 Pro, and five dual-mode USB ports auto-switch between the two systems. It offers 3 x HDMI, VGA, DisplayPort, two RJ-45 ports, Bluetooth 4.0 and dual Wi-Fi, and mounts to a VESA 800 x 400 mm pattern with a flush wall mount provided. Compared with the Hubware H6 sheets, the H5 lists an Intel i7 OPS PC, Android 6 and a PTZ camera with a separate speakerphone.
Screen Size
98 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
≥400 nits
Touch Technology
Infrared
- 98-inch 4K IPS panel
- Integrated OPS PC
- Android 6 system
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
98-inch 4K IPS panel
Original LG IPS LED panel at 3840 x 2160, 60 Hz, at least 400 cd/m² brightness and 178° viewing angles.
02
Integrated OPS PC
Intel i7 7th Gen with 8 GB RAM, a 256 GB SSD, gigabit Ethernet, dual-band Wi-Fi, Bluetooth and Windows 10 Pro.
03
Android 6 system
Quad-core Cortex-A53 at 1.5 GHz with 2 GB RAM, 64 GB storage and Google Play Store access.
04
20-point infrared touch
Finger or stylus input with 2 mm accuracy and a response time under 8 ms.
05
1080p PTZ camera
12x optical zoom, 16x digital zoom, 60 fps, a 72.5° wide-angle lens and 170° rotation.
06
Speakerphone and audio
Adaptive array microphones with 15 ft range and microphone focus, plus 15 W + 15 W Dolby stereo speakers.
07
Collaboration software
Hype video collaboration and Swap remote desktop sharing (1-year, 50 licences each), plus Annotate and Navigate.
08
Dual-mode USB
Five multimedia USB ports that auto-switch between the Android system and the OPS PC.
Specifications
51 specificationsGeneral
ApplicationWork rooms, meeting and training spaces
Key Features4K UHD IPS panel, built-in OPS PC (i7), Android 6, 20-point IR touch, PTZ camera, Dolby sound, Google Play, free training
ModelHubware H5 98
TypeInteractive Flat Panel with OPS PC
What's in the BoxDisplay and PTZ camera remote controls, HDMI, touch USB, VGA, AUX and power cables, 2 styluses, extendable wand, wireless keyboard with touchpad
Display
Aspect Ratio16:9
BacklightLED
Brightness≥400 nits
CameraPTZ 1080p Full HD, 12x optical zoom, 16x digital zoom, 60 fps, USB 3.0, 72.5° lens, 170° rotation
Color Depth1.06 billion colours (10-bit)
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size98 inch
Touch Accuracy2 mm
Touch Points20-point multi-touch
Touch Response Time<8 ms
Touch TechnologyInfrared
Viewing Angle178°
Performance
LicenseHype and Swap 1-year subscriptions (50 licences each); Annotate and Navigate perpetual
Operating SystemAndroid 6 (display); Windows 10 Pro (OPS PC)
ProcessorOPS PC: Intel i7 7th Gen; Android: quad-core Cortex-A53, 1.5 GHz
RAM8 GB (OPS PC); 2 GB (Android)
Storage256 GB SSD (OPS PC); 64 GB (Android)
Audio
AudioDolby stereo speakers; speakerphone with 6 W speaker, USB, Bluetooth/NFC and AUX
Audio OutEarphone × 1, SPDIF × 1, AV × 1
DisplayPortDisplayPort × 1
MicrophoneSpeakerphone with adaptive array microphones, 4.6 m range
Speaker Output2 x 15 W (Dolby stereo)
Connectivity
BluetoothBluetooth 4.0
Conference CallingOneScreen Hype video collaboration (1-year subscription, 50 licences)
EthernetRJ-45 × 2
HDMI InputsHDMI × 3
HDMI OutputsHDMI × 1
Input Voltage100–240 V AC, 50/60 Hz
InputsHDMI × 3, VGA × 1, DisplayPort × 1, audio × 1, mic × 1, YPbPr × 1, AV × 1
OPS SlotOPS PC included: 4 x USB 3.0, 2 x USB 2.0, HDMI, DisplayPort, VGA, mic, earphone, RS-232
OutputsHDMI × 1, SPDIF × 1, AV × 1, earphone × 1
PortsCamera USB × 1, RS-232 × 1, RJ-45 × 2, Touch × 2, 5 x multimedia USB (dual mode)
Serial PortRS-232 × 1
USB Ports5 x multimedia USB with auto-switch between Android and OPS PC
VGA InputVGA × 1
Wi-FiDual Wi-Fi, 2.4 GHz and 5 GHz (3 antennas)
Physical
Dimensions2252 x 1339 x 108 mm
MountingVESA 800 x 400 mm; flush wall mount provided
Shipping Dimensions2525 x 1750 x 437 mm
Shipping Weight205.0 kg (excluding accessories)
Surface Protection8 Mohs anti-glare glass
VESA Mount800 x 400 mm
Weight180.0 kg
Compliance
WarrantyAdvanced hardware replacement warranty (available at time of purchase only)
Downloads
Manufacturer documents for the OneScreen Hubware H5 98-inch Interactive Flat Panel with OPS PC — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the display specifications of the Hubware H5 98?
The Hubware H5 98 has a 98-inch original LG IPS LED panel at 3840 x 2160 (4K UHD) and 60 Hz. Brightness is at least 400 cd/m², viewing angles are 178°, and the display supports 10-bit colour with 1.06 billion colours. The glass is 8 Mohs anti-glare.
Does the Hubware H5 98 run Windows and Android?
Yes. It has a built-in Android 6 system with Google Play Store access and an OPS PC with Intel i7 7th Gen, 8 GB RAM, a 256 GB SSD and Windows 10 Pro. Five dual-mode USB ports auto-switch between Android and the OPS PC during use.
How accurate is the touch on the Hubware H5 98?
The Hubware H5 98 uses 20-point infrared touch for finger or stylus input, with 2 mm accuracy and a response time under 8 ms. Two styluses and an extendable wand are listed with the display for writing and annotating on content from any source.
What VESA pattern does the Hubware H5 98 use?
The Hubware H5 98 uses a VESA 800 x 400 mm pattern, and a flush wall mount is provided. The panel weighs 180 kg without accessories, so plan the wall structure and use an experienced installation team for a display of this size.
Does the Hubware H5 98 include a camera and microphone?
Yes. It lists a 1080p PTZ camera with 12x optical zoom, 16x digital zoom, a 72.5° wide-angle lens and 170° rotation, plus a speakerphone with adaptive array microphones, microphone focus and a 15 ft (4.6 m) range. Separate remotes control the display and the camera.
