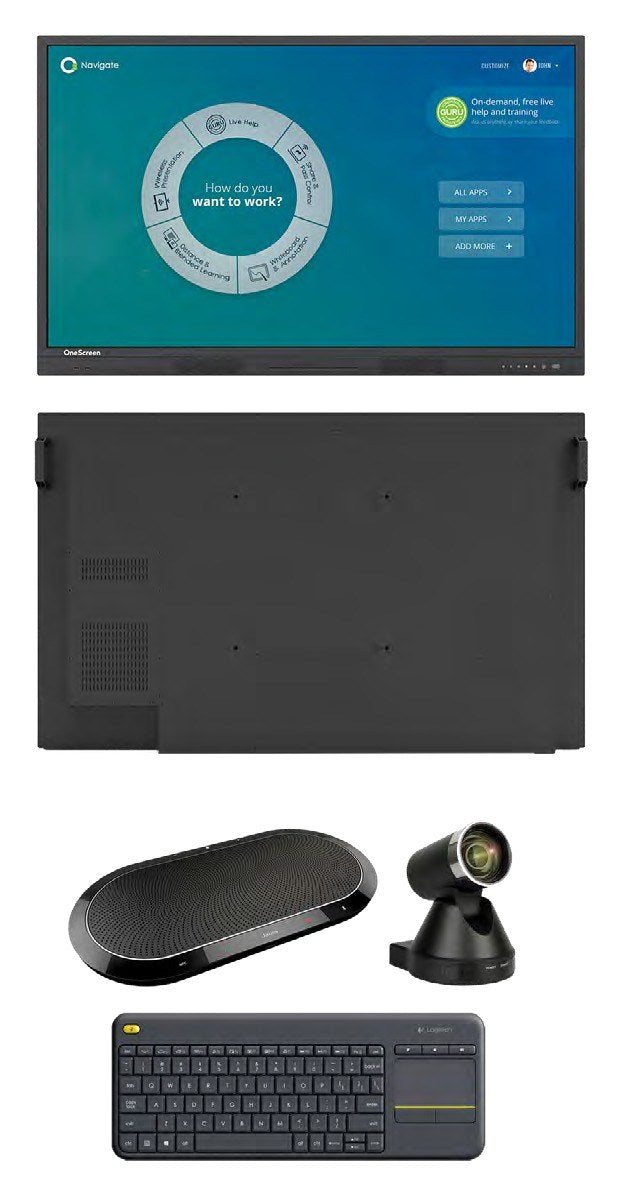

OneScreen Hubware H5 98-inch Interactive Flat Panel with OPS PC
The OneScreen Hubware H5 98 is a 98-inch 4K UHD interactive flat panel with an integrated OPS PC (Intel i7 7th Gen, 8 GB RAM, 256 GB SSD, Windows 10 Pro), an Android 6 system, a 1080p PTZ camera and 20-point infrared touch. It suits large meeting and training rooms. Procure.ae supplies the Hubware H5 98 in the UAE.
The 98-inch panel is an original LG IPS LED unit at 3840 x 2160 and 60 Hz with brightness of at least 400 cd/m², 10-bit colour (1.06 billion colours), a 0.5622 mm pixel pitch and 178° viewing angles, behind 8 Mohs anti-glare glass. Touch is 20-point infrared for finger or stylus, with 2 mm accuracy and a response time under 8 ms. Dolby stereo speakers deliver 15 W per channel, and a 1080p PTZ camera with 12x optical zoom and a speakerphone with adaptive array microphones (15 ft / 4.6 m range) cover conferencing.
The H5 runs Android 6 with full Google Play Store access alongside an OPS PC with Windows 10 Pro, and five dual-mode USB ports auto-switch between the two systems. It offers 3 x HDMI, VGA, DisplayPort, two RJ-45 ports, Bluetooth 4.0 and dual Wi-Fi, and mounts to a VESA 800 x 400 mm pattern with a flush wall mount provided. Compared with the Hubware H6 sheets, the H5 lists an Intel i7 OPS PC, Android 6 and a PTZ camera with a separate speakerphone.
Key features
Specifications
| Application | Work rooms, meeting and training spaces |
| Key Features | 4K UHD IPS panel, built-in OPS PC (i7), Android 6, 20-point IR touch, PTZ camera, Dolby sound, Google Play, free training |
| Model | Hubware H5 98 |
| Type | Interactive Flat Panel with OPS PC |
| What's in the Box | Display and PTZ camera remote controls, HDMI, touch USB, VGA, AUX and power cables, 2 styluses, extendable wand, wireless keyboard with touchpad |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | ≥400 nits |
| Camera | PTZ 1080p Full HD, 12x optical zoom, 16x digital zoom, 60 fps, USB 3.0, 72.5° lens, 170° rotation |
| Color Depth | 1.06 billion colours (10-bit) |
| Panel Technology | IPS |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Screen Size | 98 inch |
| Touch Accuracy | 2 mm |
| Touch Points | 20-point multi-touch |
| Touch Response Time | <8 ms |
| Touch Technology | Infrared |
| Viewing Angle | 178° |
| License | Hype and Swap 1-year subscriptions (50 licences each); Annotate and Navigate perpetual |
| Operating System | Android 6 (display); Windows 10 Pro (OPS PC) |
| Processor | OPS PC: Intel i7 7th Gen; Android: quad-core Cortex-A53, 1.5 GHz |
| RAM | 8 GB (OPS PC); 2 GB (Android) |
| Storage | 256 GB SSD (OPS PC); 64 GB (Android) |
| Audio | Dolby stereo speakers; speakerphone with 6 W speaker, USB, Bluetooth/NFC and AUX |
| Audio Out | Earphone × 1, SPDIF × 1, AV × 1 |
| DisplayPort | DisplayPort × 1 |
| Microphone | Speakerphone with adaptive array microphones, 4.6 m range |
| Speaker Output | 2 x 15 W (Dolby stereo) |
| Bluetooth | Bluetooth 4.0 |
| Conference Calling | OneScreen Hype video collaboration (1-year subscription, 50 licences) |
| Ethernet | RJ-45 × 2 |
| HDMI Inputs | HDMI × 3 |
| HDMI Outputs | HDMI × 1 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Inputs | HDMI × 3, VGA × 1, DisplayPort × 1, audio × 1, mic × 1, YPbPr × 1, AV × 1 |
| OPS Slot | OPS PC included: 4 x USB 3.0, 2 x USB 2.0, HDMI, DisplayPort, VGA, mic, earphone, RS-232 |
| Outputs | HDMI × 1, SPDIF × 1, AV × 1, earphone × 1 |
| Ports | Camera USB × 1, RS-232 × 1, RJ-45 × 2, Touch × 2, 5 x multimedia USB (dual mode) |
| Serial Port | RS-232 × 1 |
| USB Ports | 5 x multimedia USB with auto-switch between Android and OPS PC |
| VGA Input | VGA × 1 |
| Wi-Fi | Dual Wi-Fi, 2.4 GHz and 5 GHz (3 antennas) |
| Dimensions | 2252 x 1339 x 108 mm |
| Mounting | VESA 800 x 400 mm; flush wall mount provided |
| Shipping Dimensions | 2525 x 1750 x 437 mm |
| Shipping Weight | 205.0 kg (excluding accessories) |
| Surface Protection | 8 Mohs anti-glare glass |
| VESA Mount | 800 x 400 mm |
| Weight | 180.0 kg |
| Warranty | Advanced hardware replacement warranty (available at time of purchase only) |
