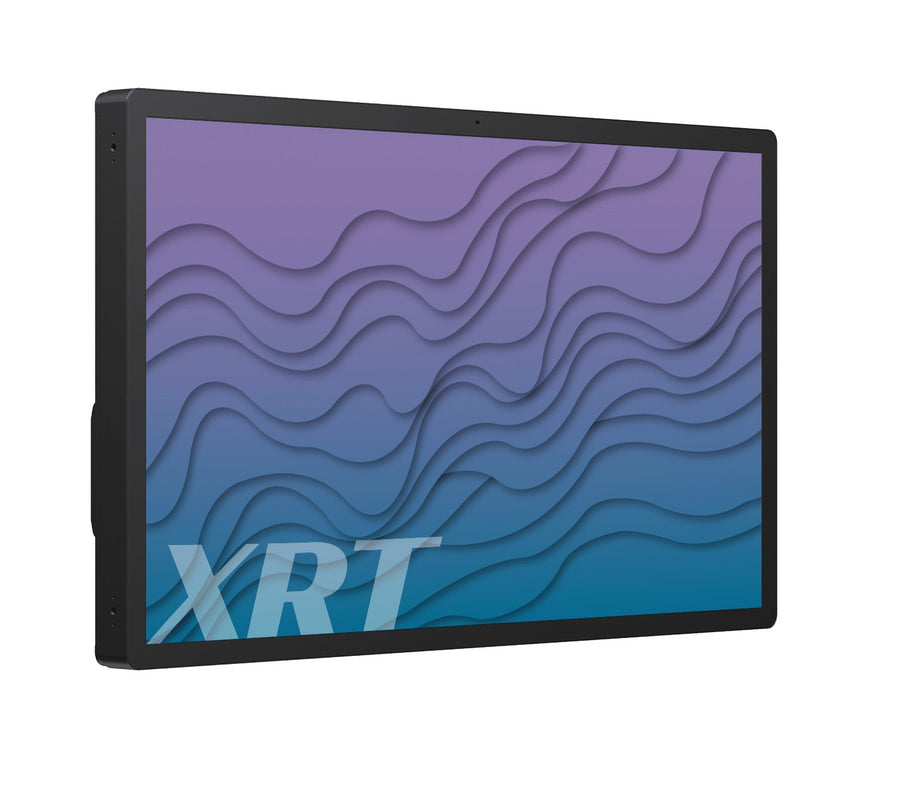

Newline XRT Series 75-inch Outdoor Digital Signage Display
The Newline XRT Series 75-inch is a digital signage display for 24 x 7 public information use, with a 4K UHD LCD panel, 2,500 nits brightness and an IP56 rating. It runs Android 14 and supports landscape and portrait orientation. Procure.ae supplies the Newline XRT Series 75-inch in the UAE.
The Newline XRT Series 75-inch (model 75" XRT) uses a 75-inch IPS LCD panel with direct LED backlight, 3840 x 2160 (4K UHD) resolution, 2,500 nits brightness, a 1,200:1 contrast ratio and 178° viewing angles. Its 6.5 ms response time and 60 Hz refresh rate support video playback. The front glass is 5 mm tempered glass with IK10 impact protection, the enclosure is rated IP56, and the display is rated for 24 x 7 operation between -30 and 60 °C. An octa-core processor with 4 GB RAM and 32 GB storage runs Android 14, with Wi-Fi 6 and Bluetooth 5.2 connectivity.
The XRT 75-inch suits lobbies, corridors, retail floors and other public spaces that need continuous content display. It supports landscape and portrait orientation and can be controlled through its two RS232C ports. The wall-mount is included and a stand is an option, with a 600 mm VESA pattern. The 86-inch XRT in the same series is the larger model, with an 800 mm VESA pattern and a 119 kg net weight.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
2,500 nits
Type
Digital Signage Display
- 4K UHD display
- 2,500 nits brightness
- IP56 and IK10 protection
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
3840 x 2160 resolution on an IPS LCD panel with direct LED backlight.
02
2,500 nits brightness
Rated 2,500 nits, with a 1,200:1 contrast ratio and 178° viewing angles.
03
IP56 and IK10 protection
IP56 ingress rating and IK10 impact rating on 5 mm tempered glass.
04
Android 14 platform
Octa-core processor with 4 GB RAM and 32 GB storage.
05
Wireless and wired networking
Wi-Fi 6, Bluetooth 5.2 and a 1000M RJ45 LAN port.
06
Control and I/O ports
Two RS232C ports, a USB 3.0 port and a 15 W Type-C port.
07
24 x 7 operation
Rated for 24 x 7 operation at -30 to 60 °C.
08
Wall mounting
Wall-mount included, stand optional, on a 600 mm VESA pattern.
Specifications
34 specificationsGeneral
Key Features4K UHD, 2,500 nits, IP56 rating, IK10 impact-rated glass, Android 14, Wi-Fi 6, 24 x 7 operation, landscape and portrait
Model75" XRT
TypeDigital Signage Display
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size35.9 mm
Brightness2,500 nits
Color Depth1.07 billion colors
Contrast Ratio1,200:1
Display TypeLCD
OrientationLandscape and portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size75 inch
Viewing Angle178° / 178°
Performance
Operating SystemAndroid 14
ProcessorOcta-core (4 × A72 + 4 × A53)
RAM4 GB
Storage32 GB
Audio
Speaker Output10 W × 2
Connectivity
BluetoothBluetooth 5.2
PortsType-C × 1 (15 W), USB 3.0 × 1, RS232C × 2 (1 in, 1 out), RJ45 LAN × 1 (1000M), 3.5 mm line out × 1
Wi-FiWi-Fi 6
Power
Power Consumption<591 W (full load)
Standby Power<0.5 W
Physical
Duty Cycle24 x 7
MountingWall-mount included; stand optional
Operating Humidity0% to 90% RH, non-condensing
Operating Temperature-30 to 60 °C
VESA Mount600 mm
Weight85.5 kg
Compliance
IP RatingIP56
Downloads
Manufacturer documents for the Newline XRT Series 75-inch Outdoor Digital Signage Display — datasheets, manuals, drawings and certificates.
- Datasheet – XRT Series
- Quick start guide – XRT Series
- Installation guide – XRT Series – 43inch Wall-Mounting Bracket Installation Guide
- Installation guide – XRT Series – 55-75inch Wall-Mounting Bracket Installation Guide
- Installation guide – XRT Series – 86Inch Wall-Mounting Bracket Installation Guide
- Installation guide – XRT Series – 43inch XRT Mount-Technial-drawing
- XRT-4326
- XRT-5526
- XRT-6526
- XRT-7526
- XRT-8626
Questions
Can’t find your answer? Ask on WhatsApp
What environmental ratings does the XRT 75-inch have?
It is rated IP56 for ingress protection and IK10 for impact protection on its 5 mm tempered glass. It operates between -30 and 60 °C at 0% to 90% RH, non-condensing. Confirm the installation environment with Procure.ae before ordering.
Which operating system does the XRT 75-inch use?
It runs Android 14 on an octa-core processor with 4 GB RAM and 32 GB storage. Wi-Fi 6, Bluetooth 5.2 and a 1000M RJ45 LAN port provide network connections, and two RS232C ports support serial control.
Is the XRT 75-inch designed for continuous operation?
Yes, the manufacturer lists 24 x 7 operation for this model. It has 2,500 nits brightness and supports landscape and portrait orientation, which suits public information displays. Its operating range is -30 to 60 °C.
How is the XRT 75-inch mounted?
The wall-mount is included, and a stand is available as an option. The VESA mount pattern is 600 mm. Procure.ae can confirm bracket compatibility and installation details for your site.
What are the power and weight figures for the XRT 75-inch?
Full-load power is listed below 591 W and standby power below 0.5 W. The net weight is 85.5 kg and the gross weight is 101 kg. Confirm the power supply and handling requirements with Procure.ae before installation.
