NewlineDigital SignageSKU 65" XRT

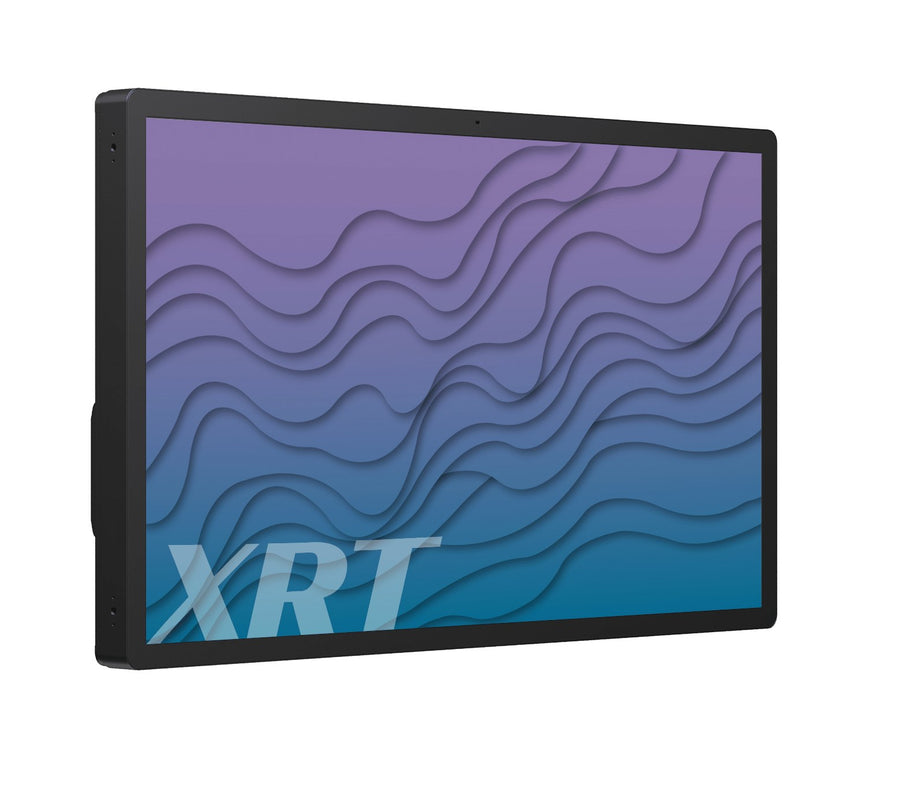

Newline XRT Series 65-inch Outdoor Digital Signage Display – XRT
The Newline XRT 65-inch is an outdoor digital signage display in the XRT Series, with a 4K UHD IPS panel rated IP56 and 2,500 nits of brightness. It is listed for 24/7 operation in landscape or portrait orientation. Procure.ae supplies the Newline XRT 65-inch across the UAE, with quotes, delivery and installation.
The Newline XRT 65-inch uses a 4K UHD IPS panel with a Direct LED backlight, a 3840 x 2160 resolution and a 16:9 aspect ratio. The panel is rated 2,500 nits with a 1,200:1 contrast ratio, a 60 Hz refresh rate, a 6.5 ms response time and a 178° viewing angle. The glass has IK10 hardness and is 5 mm tempered glass, and the display carries an IP56 rating with an operating range of -30 to 60 °C.
The XRT Series runs Android 14 with 4 GB of RAM and 32 GB of storage, and includes Wi-Fi 6, Bluetooth 5.2, Wake-on-LAN and Wake-on-Wi-Fi. Ports are a USB-C port with 15 W full-function Alt mode, a USB 3.0 port, a 3.5 mm line out, two RS232C serial ports and a 1000M LAN input. The 43-inch model is rated 2,000 nits, and the 55-inch model is rated 2,500 nits. VESA and weight figures change by size, so confirm the 65-inch mounting pattern with Procure.ae before installation.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
2,500 nits
Type
Outdoor Digital Signage Display
- 4K UHD IPS panel
- IP56 and IK10 rating
- Brightness rating
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD IPS panel
3840 x 2160 resolution on a 16:9 panel.
02
IP56 and IK10 rating
IP56 rating with IK10 glass hardness and 5 mm tempered glass.
03
Brightness rating
2,500 nits, with a 1,200:1 contrast ratio.
04
Landscape and portrait
Supports both landscape and portrait orientation.
05
Android 14 platform
Octa-core processor, 4 GB RAM and 32 GB storage.
06
Wireless connectivity
Wi-Fi 6, Bluetooth 5.2 and Wake-on-LAN.
07
24/7 operation
Listed for round-the-clock operation with an operating range of -30 to 60 °C.
08
Serial and network ports
Two RS232C serial ports and a 1000M LAN input.
Specifications
30 specificationsGeneral
ApplicationOutdoor digital signage
Key FeaturesIP56 rating, IK10 glass hardness, 5 mm tempered glass, landscape and portrait, Wake-on-LAN and Wake-on-Wi-Fi, Android 14, 24/7 operation, Direct LED backlight
Model65" XRT
TypeOutdoor Digital Signage Display
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size35.9 mm
Brightness2,500 nits
Contrast Ratio1,200:1
OrientationLandscape and portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size65 inch
Viewing Angle178°
Performance
Operating SystemAndroid 14
ProcessorOcta-core (4 x A72 + 4 x A53)
RAM4 GB
Storage32 GB
Audio
Speaker Output10 W x 2
Connectivity
BluetoothBluetooth 5.2
PortsUSB-C × 1 (15 W, full-function Alt), USB 3.0 × 1, Line Out (3.5 mm) × 1, RS232C × 2 (1 in, 1 out), LAN In (RJ45, 1000M) × 1
Wi-FiWi-Fi 6
Power
Standby PowerUnder 0.5 W
Physical
Duty Cycle24/7
MountingWall mount included, stand optional
Operating Humidity0% to 90% RH, non-condensing
Operating Temperature-30 to 60 °C
Compliance
IP RatingIP56
Downloads
Manufacturer documents for the Newline XRT Series 65-inch Outdoor Digital Signage Display – XRT — datasheets, manuals, drawings and certificates.
- Datasheet – XRT Series
- Quick start guide – XRT Series
- Installation guide – XRT Series – 43inch Wall-Mounting Bracket Installation Guide
- Installation guide – XRT Series – 55-75inch Wall-Mounting Bracket Installation Guide
- Installation guide – XRT Series – 86Inch Wall-Mounting Bracket Installation Guide
- Installation guide – XRT Series – 43inch XRT Mount-Technial-drawing
- XRT-4326
- XRT-5526
- XRT-6526
- XRT-7526
- XRT-8626
Questions
Can’t find your answer? Ask on WhatsApp
What is the Newline XRT 65-inch?
The Newline XRT 65-inch is an outdoor digital signage display in the XRT Series, with a 4K UHD IPS panel, IP56 rating and 2,500 nits of brightness. Procure.ae supplies it to businesses across the UAE and the wider Middle East and Africa, with quotes, delivery and installation.
Can the XRT 65-inch be used outdoors?
Yes, it is listed in the outdoor displays range with an IP56 rating, IK10 glass hardness and an operating range of -30 to 60 °C. Confirm the exact site conditions and mounting with Procure.ae before ordering.
What brightness does the XRT 65-inch offer?
The XRT 65-inch is rated 2,500 nits, with a 1,200:1 contrast ratio, a 6.5 ms response time and a 178° viewing angle. Procure.ae can confirm how the rating suits your site before you order.
Does the XRT 65-inch support portrait orientation?
Yes, the XRT Series supports landscape and portrait orientation. A wall mount is included, and a stand is optional. Procure.ae can advise on the mounting arrangement and installation across the UAE.
Can the XRT 65-inch connect to a network and other equipment?
Yes, it has a 1000M LAN input, Wi-Fi 6, Bluetooth 5.2, a USB-C port with 15 W full-function Alt mode, a USB 3.0 port, a 3.5 mm line out and two RS232C serial ports.
Can I buy the Newline XRT 65-inch in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
