NewlineDigital SignageSKU 65" STV+

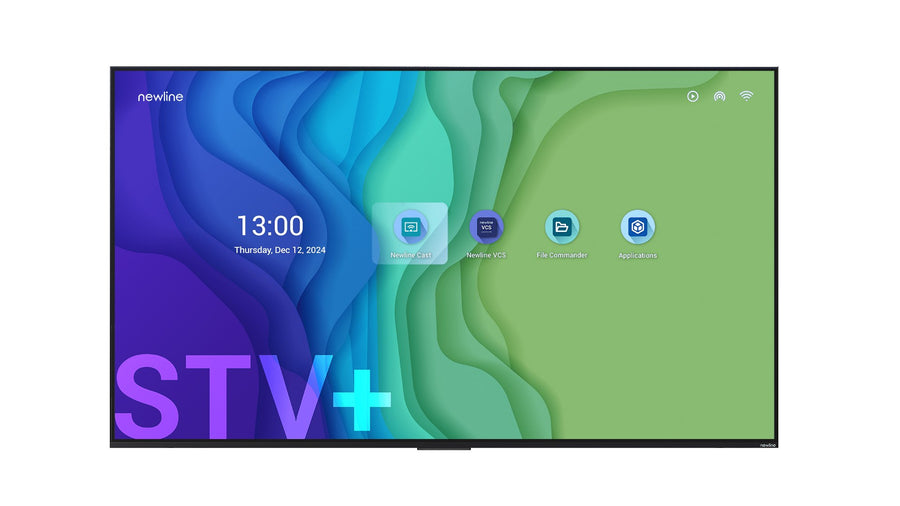

Newline STV+ 65-inch 4K UHD Digital Signage Display – 65" STV+
The Newline 65-inch STV+ (model 65" STV+) is a 4K UHD digital signage display for business presentations, classroom lessons and signage. It is rated at 300 nits brightness with a 5,000:1 contrast ratio, runs Android 14 and supports Cast+ and Signage Pro software. Procure.ae supplies the 65-inch STV+ across the UAE.
The 65-inch STV+ has a 3840 x 2160 (4K UHD) Direct LED display with a 16:9 aspect ratio and 1.07 billion colours. It is rated at 300 nits and a 5,000:1 contrast ratio, with a 6.5 ms response time, a 178 degree viewing angle and a 60 Hz refresh rate. An eight-core processor (4 x A73 at 2.20 GHz and 4 x A53 at 2.20 GHz) with an Arm Mali-G52 GPU, 4 GB RAM and 16 GB storage runs Android 14. Newline specifies a display lifetime of 50,000 hours.
Use the 65-inch STV+ for digital signage, business presentations and classroom lessons. Cast+ enables instant content sharing from any device, Signage Pro handles content management, and Display Management Plus centralizes control of settings and updates across all screens. Its rear ports include three HDMI 2.1 inputs, a RS232 port and LAN. Compared with the 65-inch STV, it is rated at 300 nits rather than 270 nits and has a 5,000:1 contrast ratio rather than 4,000:1.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
300 nits
Type
Digital Signage Display
- 4K UHD resolution
- Non-touch display
- Brightness and contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD resolution
3840 x 2160 pixels on a 16:9 Direct LED display with 1.07 billion colours.
02
Non-touch display
Built for signage and presentations, without touch input.
03
Brightness and contrast
300 nits with a 5,000:1 contrast ratio.
04
Android 14 platform
Runs Android 14 with 4 GB RAM and 16 GB storage.
05
Cast+ and Click2Cast
Shares content from any device and works with the Click2Cast dongle for one-click casting.
06
Signage management
Signage Pro integration and Display Management Plus for central control of settings and updates.
07
Port connectivity
Three HDMI 2.1 inputs, USB 3.0, LAN (RJ45), RS232 and AV In.
08
Wake and remote features
Wake-on-LAN, Wake-on-Wi-Fi and over-the-air firmware updates.
Specifications
39 specificationsGeneral
ApplicationDigital signage, business presentations, classroom lessons
CompatibilityCast, Broadcast, App Store, Display Management Plus, Signage Pro, Cast+
Key Features4K UHD, 300 nits, 5,000:1 contrast, Android 14, Cast+ wireless casting, Signage Pro, HDMI ARC/eARC
Model65" STV+
TypeDigital Signage Display
Display
Aspect Ratio16:9
Brightness300 nits
Color Depth1.07 billion colours
Contrast Ratio5,000:1
Display TypeDirect LED
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size65 inch
TouchscreenNon-touch
Viewing Angle178°
Performance
GraphicsArm Mali-G52
Operating SystemAndroid 14
Processor4 x A73 2.20 GHz, 4 x A53 2.20 GHz
RAM4 GB
Storage16 GB
Storage Conditions-20 to 60 °C; 20% to 80% RH (non-condensing)
Audio
Dynamic RangeHigh Dynamic Range (HDR)
Speaker Configuration2.0
Speaker Output2 x 15 W
Connectivity
BluetoothBluetooth 5.0
EthernetLAN In (RJ45) × 1
HDMI Inputs3 × HDMI 2.1 (HDCP 2.2, 4K at 30 Hz)
PortsUSB Type-A 3.0 × 1, USB Type-A 2.0 × 1, HDMI In 2.1 × 3, Audio Line Out × 1, SPDIF Out × 1, LAN In (RJ45) × 1, RS232 × 1, AV In × 1
Serial PortRS232 × 1
Wi-FiWi-Fi 5
Power
Power Consumption94 W (standard mode)
Standby Power0.5 W
Physical
Dimensions1446 x 831 x 85 mm
Duty Cycle24 hours x 7 days
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount400 x 300 mm
Weight16.5 kg
Downloads
Manufacturer documents for the Newline STV+ 65-inch 4K UHD Digital Signage Display – 65" STV+ — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the 65-inch STV+ a touchscreen?
No. The 65-inch STV+ is a non-touch display for digital signage, business presentations and classroom lessons. Content is shared through Cast+ and managed through Signage Pro rather than touch input.
How bright is the 65-inch STV+?
It is rated at 300 nits with a 5,000:1 contrast ratio and a 6.5 ms response time. Newline also specifies a 50,000-hour display lifetime and a 178 degree viewing angle for this model.
Can I cast content wirelessly to the 65-inch STV+?
Yes. Cast+ enables instant content sharing from any device, and the display is compatible with the Click2Cast dongle for one-click casting. Wake-on-LAN and Wake-on-Wi-Fi are also supported for remote wake.
What ports does the 65-inch STV+ have?
The rear ports are USB Type-A 3.0 and USB Type-A 2.0, three HDMI 2.1 inputs with HDCP 2.2 (4K at 30 Hz), an audio line out, an SPDIF out, LAN (RJ45), RS232 and an AV in. The display also supports HDMI ARC and eARC.
What VESA mount does the 65-inch STV+ use?
The 65-inch STV+ uses a 400 x 300 mm VESA pattern. Its net weight is 16.5 kg and its outline dimensions are 1446 x 831 x 85 mm, so check the mount's rating before installation. Procure.ae provides installation across the UAE.
Can I buy the 65" STV+ in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
