NewlineDigital SignageSKU 115" STV+

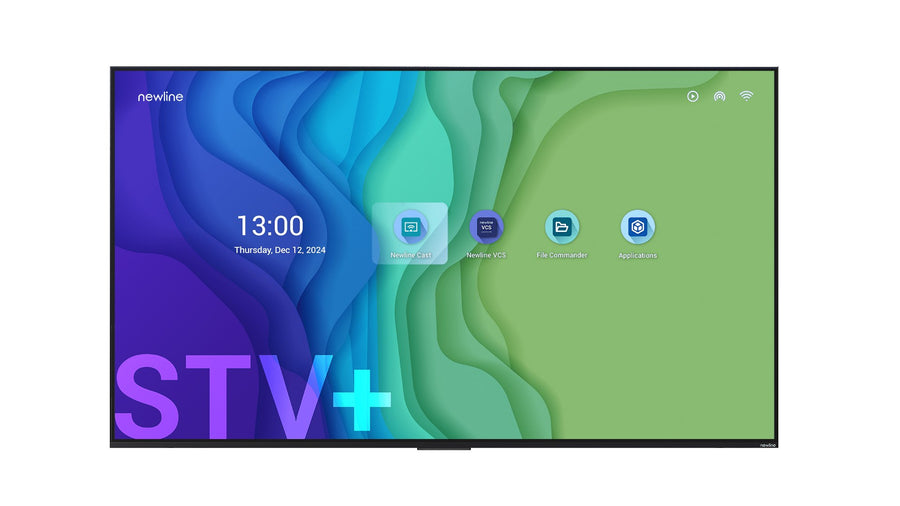

Newline STV+ 115-inch 4K Digital Signage Display – STV+ 115"
The Newline STV+ 115-inch is a 4K UHD digital signage display with QD-Mini LED backlight for large lobbies, retail spaces and presentation rooms. It delivers up to 2000 nits XDR brightness, a 7,000:1 contrast ratio and a 6.2.2 sound system. Procure.ae supplies the Newline STV+ 115-inch across the UAE.
The STV+ 115-inch uses a QD-Mini LED backlight with 3840 x 2160 resolution, 1.07 billion colours, up to 2000 nits XDR brightness, a 7,000:1 contrast ratio, a 6.5 ms response time and a 178° viewing angle. It runs the same octa-core Android 14 platform as the STV+ range, with 4 GB RAM and 16 GB storage. Eight 10 W speakers and a 2 x 20 W subwoofer make up the 6.2.2 sound system. The manufacturer lists an operating time of 24 hours a day, seven days a week.
The STV+ 115-inch is a large-format display weighing 94.3 kg net, with a 1000 x 500 mm VESA pattern, so it needs a wall mount rated for at least that weight. It supports the same Cast+, Signage Pro and Display Management Plus software as the smaller STV+ models, and it is compatible with the optional Newline Click2Cast dongle for one-click casting. Compared with the 98-inch STV+, the 115-inch adds a QD-Mini LED backlight, a 7,000:1 contrast ratio against 5,000:1 and 6.2.2 sound against 2.0.
Screen Size
115 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
2000 nits (XDR)
Type
Digital Signage Display
- QD-Mini LED backlight
- Native 4K UHD
- 6.2.2 sound system
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
QD-Mini LED backlight
up to 2000 nits XDR brightness and a 7,000:1 contrast ratio.
02
Native 4K UHD
3840 x 2160 resolution with 1.07 billion colours.
03
6.2.2 sound system
eight 10 W speakers plus a 2 x 20 W subwoofer.
04
Android 14 platform
an octa-core processor with 4 GB RAM and 16 GB storage.
05
Wireless casting
Cast+ shares content from Windows, Mac, Android and iPhone devices.
06
Signage Pro integration
content management through Newline Signage Pro.
07
Display Management Plus
central control of settings and updates across screens.
08
Connectivity
HDMI 2.1 inputs, LAN (RJ45), RS232, SPDIF and USB ports.
Specifications
35 specificationsGeneral
ApplicationDigital signage
CompatibilityNewline Interactive Ecosystem: Cast, Broadcast, App Store, Display Management Plus, Signage Pro, Cast+
Key Features4K UHD, QD-Mini LED, XDR 2000 nits, 6.2.2 sound, Cast+ wireless casting, Signage Pro, Display Management Plus, Wake-on-LAN
Model115" STV+
TypeDigital Signage Display
Display
Aspect Ratio16:9
BacklightQD-Mini LED
Brightness2000 nits (XDR)
Color Depth1.07 billion colours
Contrast Ratio7,000:1
Display TypeCommercial display
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size115 inch
TouchscreenNo (non-touch)
Viewing Angle178°
Performance
GraphicsArm Mali-G52
Operating SystemAndroid 14
ProcessorOcta-core (4 × A73 2.20 GHz + 4 × A53 2.20 GHz)
RAM4 GB
Storage16 GB
Audio
Channels6.2.2
Speaker Output8 x 10 W speakers, 2 x 20 W subwoofer
Connectivity
BluetoothBluetooth 5.0
PortsHDMI 2.1 In × 3 (HDCP 2.2, 4K@30 Hz), USB Type-A 3.0 × 1, USB Type-A 2.0 × 1, Audio Line Out × 1, SPDIF Out × 1, LAN In (RJ45) × 1, RS232 × 1, AV In × 1
Wi-FiWi-Fi 5
Power
Power Consumption161 W (standard mode)
Standby Power0.5 W
Physical
Dimensions2564.6 x 1468.6 x 61.7 mm
Duty Cycle24 hours / 7 days
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount1000 x 500 mm
Weight94.3 kg
Downloads
Manufacturer documents for the Newline STV+ 115-inch 4K Digital Signage Display – STV+ 115" — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Newline STV+ 115-inch a touchscreen?
No. It is a non-touch display designed for digital signage and wireless casting rather than touch input. Its 7,000:1 contrast ratio and 178° viewing angle suit content viewed from a distance in large spaces.
Can the STV+ 115-inch be wall mounted?
Yes, with a bracket rated for its weight. The display has a 1000 x 500 mm VESA pattern and weighs 94.3 kg net, so use a structural wall mount rated for that load and check the wall construction before fixing it.
Does it include speakers?
Yes. It has eight 10 W speakers and a 2 x 20 W subwoofer, giving a 6.2.2 sound system. Ask Procure.ae about audio routing for your room before ordering, so the setup matches the space.
How much power does it draw?
The manufacturer lists 161 W in standard mode and 0.5 W in standby for the 115-inch model. Actual draw can vary with content and brightness settings. Check the supply capacity with the installer before fitting.
Is a Click2Cast dongle needed for casting?
No. Wireless casting works through the Cast+ software on the display. The optional Newline Click2Cast dongle adds one-button casting from a compatible device, and Procure.ae can advise whether it suits your setup.
Can I buy the Newline STV+ 115" in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
