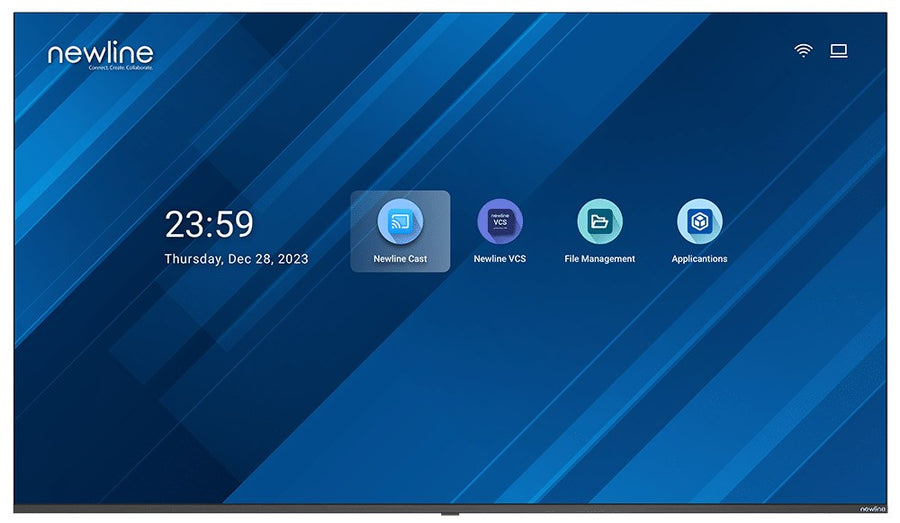

Newline 75-inch STV digital signage display, model 75" STVNewline
Digital SignageSKU 75" STV

Newline STV 75-inch 4K UHD Digital Signage Display – 75" STV

The Newline 75-inch STV (model 75" STV) is a 4K UHD non-touch digital signage display for businesses, schools and information screens. It offers 300 nits brightness, a 4,000:1 contrast ratio and a 1 mm ultra-thin bezel, with support for the Cast+ and VCS software. Procure.ae supplies the 75-inch STV across the UAE.

The 75-inch STV uses a 3840 x 2160 (4K UHD) LCD panel with a 16:9 aspect ratio and 1.07 billion colours. Its display area is 1650 x 928 mm, with 300 nits brightness, a 4,000:1 contrast ratio, a 6.5 ms response time and a 178 degree viewing angle. The display supports High Dynamic Range (HDR), operates for 16 hours x 7 days, and has two 10 W rear speakers.

Use the 75-inch STV for digital signage, corporate communications and information screens. Cast+ shares content wirelessly from various devices, and VCS broadcasts messages straight to the panel without a separate media player. The 400 x 300 mm VESA pattern suits wall mounts, and the display weighs 22.7 kg net. Compared with the 65-inch STV, it is rated at 300 nits rather than 270 nits and draws 260 W in standard mode rather than 170 W.

Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
300 nits
Type
Digital Signage Display
  • 4K UHD resolution
  • Non-touch display
  • Ultra-thin bezel
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
4K UHD resolution
3840 x 2160 pixels on a 16:9 LCD panel with 1.07 billion colours.
02
Non-touch display
Built for digital signage and presentations, without touch input.
03
Ultra-thin bezel
A 1 mm bezel and a high screen-to-body ratio.
04
High brightness
300 nits (excluding wall mount) with a 4,000:1 contrast ratio.
05
High Dynamic Range
HDR support for video content.
06
Cast+ wireless casting
Shares content wirelessly from various devices.
07
VCS broadcasting
Sends messages straight to the panel without a separate media player.
08
Long operating time
Specified for 16 hours x 7 days, with a 60 Hz refresh rate.

Specifications

29 specifications
General
ApplicationDigital signage
CompatibilityNewline Cast+ and VCS
Key Features4K UHD, 1 mm bezel, HDR, non-touch, Cast+ wireless casting, VCS broadcast, 16 hours x 7 days operation
Model75" STV
TypeDigital Signage Display
Display
Aspect Ratio16:9
Bezel Size1 mm
Brightness300 nits
Color Depth1.07 billion colours
Contrast Ratio4,000:1
Panel TechnologyLCD
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size75 inch
TouchscreenNon-touch
Viewing Angle178°
Performance
ProcessorQuad-core ARM Cortex
RAM2 GB
Storage16 GB
Audio
Dynamic RangeHigh Dynamic Range (HDR)
Speaker Output10 W x 2
Connectivity
Wi-FiWi-Fi 5.0
Power
Power Consumption260 W (standard mode)
Standby PowerBelow 0.5 W
Physical
Dimensions1668 x 956 x 88 mm
Duty Cycle16 hours x 7 days
VESA Mount400 x 300 mm
Weight22.7 kg

Downloads

Manufacturer documents for the Newline STV 75-inch 4K UHD Digital Signage Display – 75" STV — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Is the 75-inch STV a touchscreen?
No. The 75-inch STV is a non-touch display made for digital signage and presentations. Content is shared through Cast+ and broadcast through VCS rather than touch input, so it suits viewing and signage use.
How does the 75-inch STV differ from the 65-inch STV?
The 75-inch STV is rated at 300 nits, against 270 nits for the 65-inch model, and both have a 4,000:1 contrast ratio. It weighs 22.7 kg net against 16.6 kg, and its outline dimensions are 1668 x 956 x 88 mm. Its standard-mode power draw is 260 W, compared with 170 W.
Can I cast content wirelessly to the 75-inch STV?
Yes. Cast+ supports wireless casting from various devices, and VCS broadcasts messages directly through the panel. Both are listed as part of Newline's interactive ecosystem for this display, so content can be shared and broadcast without a separate media player.
What VESA mount does the 75-inch STV use?
The 75-inch STV uses a 400 x 300 mm VESA pattern. Its net weight is 22.7 kg and its outline dimensions are 1668 x 956 x 88 mm, so check the mount's rating before installation. Procure.ae provides installation across the UAE.
How many hours a day can the 75-inch STV run?
Newline specifies an operation time of 16 hours x 7 days for the STV series. The 75-inch model has a 60 Hz refresh rate and a 178 degree viewing angle. Standby power is below 0.5 W.
Can I buy the 75" STV in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
