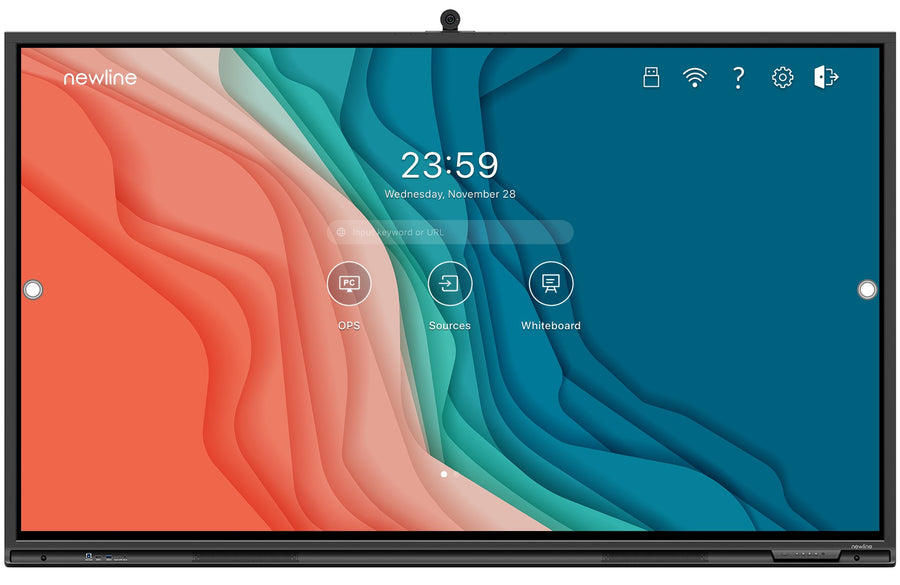

Newline Q+ Series 75-inch 4K UHD Interactive Flat Panel – TT-7522Q
The Newline TT-7522Q is a 75-inch 4K UHD interactive flat panel for classrooms and meeting rooms. It adds a modular 4K UHD camera, an 8-microphone array and a 15 W subwoofer to 20-point touch, 8GB RAM and Android 11. Procure.ae supplies the Newline TT-7522Q across the UAE, with delivery and installation.
The 75-inch LED panel offers 3840 x 2160 (4K UHD) resolution, 400 cd/m² brightness, a 5,000:1 dynamic contrast ratio, a typical 8 ms response time and a 178° viewing angle. Infrared touch registers 20 points on Android and 40 points on Windows. The anti-glare, anti-fingerprint and antimicrobial glass has 7H hardness and 88% ± 3% transparency, and Newline describes optical bonding as the basis for its touch and writing experience.
The Q+ Series suits classrooms and meeting rooms that need a camera, microphone and speakers in one panel. The camera is listed with a 120° field of view, and the 8-microphone array has an 8 m pickup distance. Ports include one USB-C with 100 W Power Delivery, an OPS-PC slot, an SDM-S slot, RS-232 control and RJ-45 in and out. Wall-mounted or mobile stand setups are supported.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 4K UHD resolution
- 20-point infrared touch
- Integrated camera
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD resolution
3840 x 2160 pixels on a 75-inch LED panel with 400 cd/m² brightness.
02
20-point infrared touch
20 points on Android and 40 points on Windows.
03
Integrated camera
Modular 4K UHD camera with a 120° field of view.
04
8-microphone array
Built-in array with an 8 m pickup distance.
05
Speaker system
Two 20 W speakers and a 15 W subwoofer.
06
USB-C power delivery
One USB Type-C port with 100 W Power Delivery.
07
Expansion slots
OPS-PC slot and SDM-S slot for added modules.
08
Android platform
Android 11 with 8GB RAM and 64GB storage.
Specifications
42 specificationsGeneral
Key Features4K UHD, 20-point touch, camera module, 8-mic array, 15 W subwoofer, Android 11, 8 GB RAM, USB-C 100 W power delivery
ModelTT-7522Q
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness400 nits
Camera4K UHD, 120° field of view
Color Depth1.07 billion
Contrast Ratio5,000:1 (dynamic)
Display TypeLED
Resolution3840 x 2160 (4K UHD)
Response Time8 ms typical, 10 ms max
Screen Size75 inch
Touch Points20 points (Android), 40 points (Windows)
Touch TechnologyInfrared
Viewing Angle178°
Performance
Operating SystemAndroid 11
ProcessorAmlogic 311D2
RAM8 GB
Storage64 GB
Audio
Audio InMicrophone in
Audio OutLine out, S/PDIF out
DisplayPort1 × DisplayPort 1.2
Microphone8-mic array, 8 m pickup distance
Speaker Output20 W × 2 (front), 15 W subwoofer
Connectivity
EthernetRJ-45 (in and out)
HDMI Inputs3 × HDMI 2.0
HDMI Outputs1 × HDMI 2.0
Input Voltage100–240 V AC
OPS SlotOPS-PC slot
SD Card SlotSD card slot
Serial PortRS-232
Touch USB Ports4 × USB Type-B
USB Ports3 × USB 3.0 Type-A, 1 × USB 3.0 Type-A to Android
USB-C Ports1 × USB Type-C (PD 100 W), 1 × USB 3.0 Type-C (no PD)
Wi-FiWi-Fi 6 (module slot)
Power
Power Consumption650 W (max), under 240 W (eco)
Standby PowerUnder 0.5 W
Physical
Dimensions1735 x 1050 x 116 mm
MountingWall-mounted or mobile stand
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
Weight50 kg
Downloads
Manufacturer documents for the Newline Q+ Series 75-inch 4K UHD Interactive Flat Panel – TT-7522Q — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Newline TT-7522Q suitable for video conferencing?
Yes. Newline lists a modular 4K UHD camera with a 120° field of view, an 8-microphone array with an 8 m pickup distance and broadcast software for the Q+ Series. These features support video conferencing and remote lessons from one 75-inch panel without extra room equipment.
Which operating system does the TT-7522Q run?
It runs Android 11 on an Amlogic 311D2 processor with 8GB RAM and 64GB embedded storage. Windows touch is rated at 40 points, and the OPS-PC slot takes an OPS computer module when an integrated PC is needed for the room.
Can I connect a laptop to the TT-7522Q?
Yes. Three HDMI 2.0 inputs and one DisplayPort 1.2 input accept laptops and media players. One HDMI 2.0 output is also provided, and four USB Type-B touch ports link the touch function to a computer for interactive use.
How is the TT-7522Q mounted?
It can be wall-mounted or fitted to a mobile stand. The manufacturer's specifications do not state a VESA pattern for this model, so confirm the wall bracket size with Procure.ae before ordering to make sure the mount matches the panel.
Does the TT-7522Q include a camera?
Yes. Newline lists a modular 4K UHD camera with a 120° field of view for this model. Confirm the camera module configuration with Procure.ae when you request a quote so the setup matches the room and the conferencing platform you use.
