NewlineInteractive Flat PanelsSKU TT-6522Q

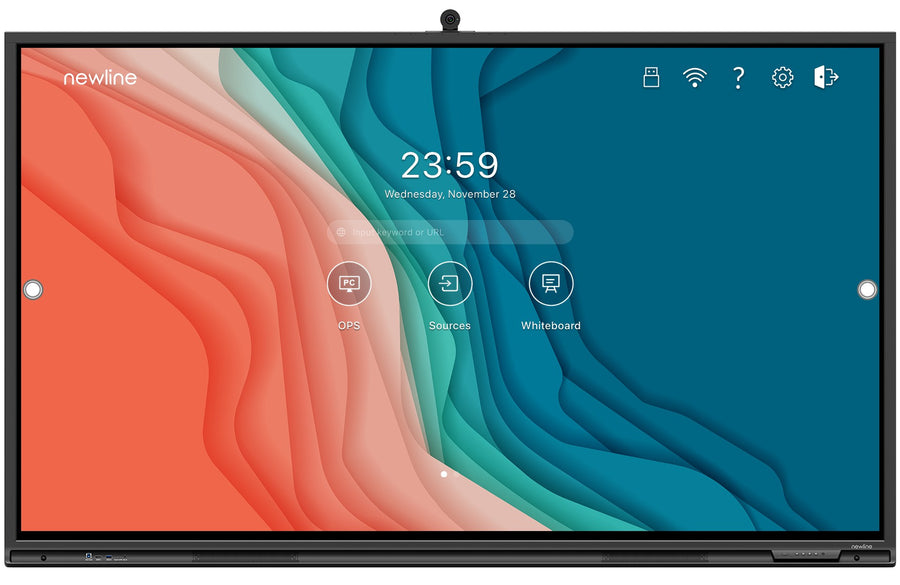

Newline Q+ Series 65-inch Interactive Flat Panel – TT-6522Q
The Newline Q+ Series TT-6522Q is a 65-inch 4K interactive flat panel with a 4K UHD camera and 8-microphone array for classrooms and meeting rooms. It runs Android 11 with 8 GB RAM and 64 GB storage. Procure.ae supplies it in the UAE as an authorised reseller, with delivery and installation across the UAE.
The TT-6522Q is a 65-inch interactive flat panel with a 3840 x 2160 (4K UHD) LED display, 400 nits brightness and a 5,000:1 dynamic contrast ratio. Its infrared touch surface supports 20 points on Android and 40 points on Windows. The manufacturer's literature lists a modular 4K UHD camera with a 120° field of view and an 8-microphone array with 8 m pickup distance, plus 20 W x 2 speakers and a 15 W woofer.
Use it in intelligent classrooms, lecture rooms and meeting rooms that need one unit for display, touch, camera and sound. Connections include three HDMI 2.0 inputs, a DisplayPort 1.2 input, a USB Type-C port rated for 100 W power delivery, an OPS-PC slot and an SDM-S slot. Mounting is wall-mounted or on a mobile stand. The Q+ Series is also listed in 75-inch and 86-inch sizes as TT-7522Q and TT-8622Q.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- Modular 4K camera
- 8-microphone array
- Speaker system
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Modular 4K camera
A 4K UHD camera with a 120° field of view, listed as a modular component.
02
8-microphone array
Eight microphones with 8 m pickup distance.
03
Speaker system
20 W x 2 front speakers with a 15 W woofer.
04
20-point touch
Infrared touch with 20 points on Android and 40 points on Windows.
05
Android 11 platform
Runs Android 11 with 8 GB RAM and 64 GB storage.
06
OPS-PC and SDM-S slots
One OPS-PC slot and one SDM-S slot for expansion.
07
Wi-Fi 6 ready
The series is listed as Wi-Fi 6 ready, with one Wi-Fi module slot.
08
Anti-glare glass
Anti-glare, anti-fingerprint, antimicrobial tempered glass rated 7H.
Specifications
36 specificationsGeneral
Key Features4K UHD resolution, 20-point touch, modular 4K camera, 8-microphone array, OPS-PC slot, Android 11, Wi-Fi 6, 20 W x 2 speakers with woofer
ModelTT-6522Q
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightLED
Brightness400 nits
Camera4K UHD, 120° field of view
Color Depth1.07 billion colors
Contrast Ratio5,000:1
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (typical), 10 ms (max)
Screen Size65 inch
Touch Points20-point (Android), 40-point (Windows)
Touch TechnologyInfrared
Viewing Angle178°
Performance
Operating SystemAndroid 11
RAM8 GB
Storage64 GB
Storage Conditions-20 to 60 °C, 0% to 90% RH (non-condensing)
Audio
DisplayPort1 × DisplayPort 1.2
Frequency Response250 Hz to 20 kHz (speakers), 20 Hz to 20 kHz (woofer)
Microphone8-microphone array, 8 m pickup distance
Speaker Output20 W x 2 speakers, 15 W woofer
Connectivity
HDMI Inputs3 × HDMI 2.0
Input Voltage100–240 V AC
OPS Slot1 × OPS-PC slot
USB PortsUSB Type-C (PD 100 W) x 1, USB 3.0 Type-C x 1, USB 3.0 Type-A x 3, USB Type-B touch x 4
Wi-FiWi-Fi 6 (module slot)
Power
Power Consumption570 W (max), under 150 W (eco)
Standby Power< 0.5 W
Physical
Dimensions1513 x 926 x 116 mm
MountingWall-mounted or mobile stand
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Surface ProtectionAnti-glare, anti-fingerprint, antimicrobial tempered glass, 7H
Weight39 kg (net)
Downloads
Manufacturer documents for the Newline Q+ Series 65-inch Interactive Flat Panel – TT-6522Q — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the TT-6522Q include a camera and microphone array?
Yes. The manufacturer's literature lists a 4K UHD camera with a 120° field of view and an 8-microphone array with 8 m pickup distance as part of the Q+ Series hybrid solution.
Is the TT-6522Q a 4K display with touch?
Yes. It has a 3840 x 2160 (4K UHD) LED display with 400 nits brightness, 5,000:1 dynamic contrast and a 178° viewing angle. Touch is 20-point infrared on Android, and the touch surface is anti-glare and anti-fingerprint with 7H hardness.
Which operating system and memory does it use?
It runs Android 11 with 8 GB RAM and 64 GB storage. It also has an OPS-PC slot for an OPS PC module, an SDM-S slot and a Wi-Fi module slot, so the unit can be expanded for PC and wireless use.
Can it connect to a laptop or PC?
Yes. It has three HDMI 2.0 inputs, a DisplayPort 1.2 input and a USB Type-C port rated for 100 W power delivery. An OPS PC module can also be fitted to the OPS-PC slot.
Can it be wall-mounted?
Yes. The manufacturer lists wall-mounted and mobile stand options. The specifications do not state a VESA pattern for this model, so confirm the bracket and wall requirements with Procure.ae before installation.
Can I buy the TT-6522Q in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
