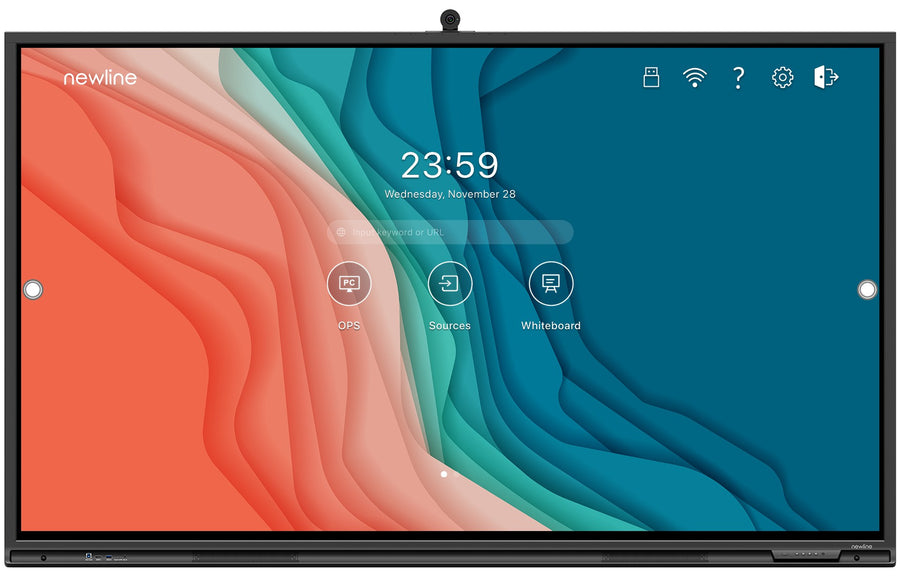

Newline Q+ Series 65-inch Interactive Flat Panel – TT-6522Q
The Newline Q+ Series TT-6522Q is a 65-inch 4K interactive flat panel with a 4K UHD camera and 8-microphone array for classrooms and meeting rooms. It runs Android 11 with 8 GB RAM and 64 GB storage. Procure.ae supplies it in the UAE as an authorised reseller, with delivery and installation across the UAE.
The TT-6522Q is a 65-inch interactive flat panel with a 3840 x 2160 (4K UHD) LED display, 400 nits brightness and a 5,000:1 dynamic contrast ratio. Its infrared touch surface supports 20 points on Android and 40 points on Windows. The manufacturer's literature lists a modular 4K UHD camera with a 120° field of view and an 8-microphone array with 8 m pickup distance, plus 20 W x 2 speakers and a 15 W woofer.
Use it in intelligent classrooms, lecture rooms and meeting rooms that need one unit for display, touch, camera and sound. Connections include three HDMI 2.0 inputs, a DisplayPort 1.2 input, a USB Type-C port rated for 100 W power delivery, an OPS-PC slot and an SDM-S slot. Mounting is wall-mounted or on a mobile stand. The Q+ Series is also listed in 75-inch and 86-inch sizes as TT-7522Q and TT-8622Q.
Key features
Specifications
| Key Features | 4K UHD resolution, 20-point touch, modular 4K camera, 8-microphone array, OPS-PC slot, Android 11, Wi-Fi 6, 20 W x 2 speakers with woofer |
| Model | TT-6522Q |
| Type | Interactive Flat Panel |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | 400 nits |
| Camera | 4K UHD, 120° field of view |
| Color Depth | 1.07 billion colors |
| Contrast Ratio | 5,000:1 |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms (typical), 10 ms (max) |
| Screen Size | 65 inch |
| Touch Points | 20-point (Android), 40-point (Windows) |
| Touch Technology | Infrared |
| Viewing Angle | 178° |
| Operating System | Android 11 |
| RAM | 8 GB |
| Storage | 64 GB |
| Storage Conditions | -20 to 60 °C, 0% to 90% RH (non-condensing) |
| DisplayPort | 1 × DisplayPort 1.2 |
| Frequency Response | 250 Hz to 20 kHz (speakers), 20 Hz to 20 kHz (woofer) |
| Microphone | 8-microphone array, 8 m pickup distance |
| Speaker Output | 20 W x 2 speakers, 15 W woofer |
| HDMI Inputs | 3 × HDMI 2.0 |
| Input Voltage | 100–240 V AC |
| OPS Slot | 1 × OPS-PC slot |
| USB Ports | USB Type-C (PD 100 W) x 1, USB 3.0 Type-C x 1, USB 3.0 Type-A x 3, USB Type-B touch x 4 |
| Wi-Fi | Wi-Fi 6 (module slot) |
| Power Consumption | 570 W (max), under 150 W (eco) |
| Standby Power | < 0.5 W |
| Dimensions | 1513 x 926 x 116 mm |
| Mounting | Wall-mounted or mobile stand |
| Operating Humidity | 20% to 80% RH (non-condensing) |
| Operating Temperature | 0 to 40 °C |
| Surface Protection | Anti-glare, anti-fingerprint, antimicrobial tempered glass, 7H |
| Weight | 39 kg (net) |
