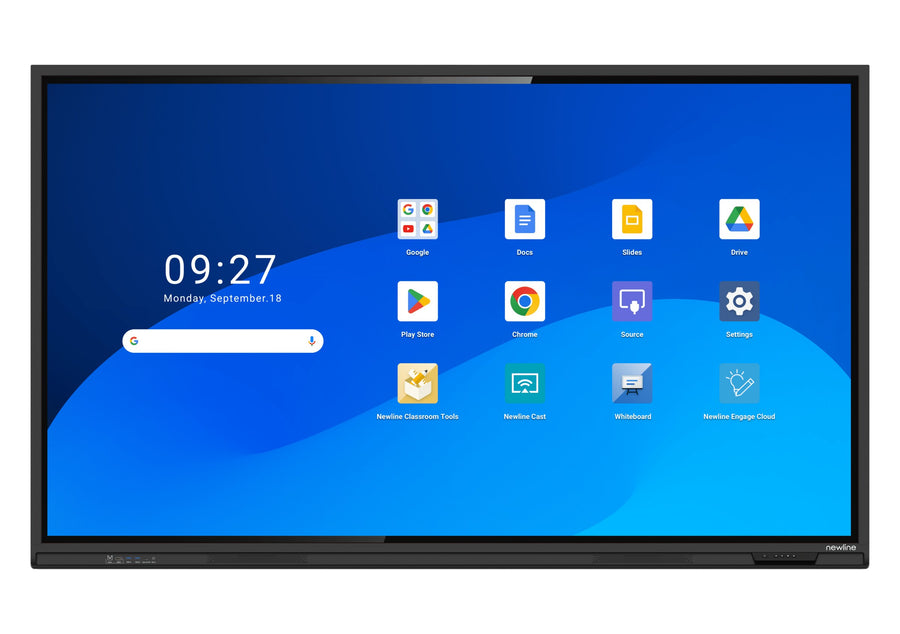

Newline Q Pro 55-inch 4K UHD Interactive Flat Panel – TT-5523QA

The Newline Q Pro 55-inch (TT-5523QA) is a 4K UHD interactive flat panel for classrooms, with Google EDLA certification for access to Google Play and Google Workspace apps. It has infrared touch with 20 points on Android and 40 on Windows, and it is rated at 400 nits. Procure.ae supplies it across the UAE.

The Q Pro 55-inch has a 3840 x 2160 (4K) LED display with 400 nits brightness, 178-degree viewing angles and 1.07 billion colours. Its infrared touch responds in under 4 ms and accepts stylus or finger input, with 20 touch points on Android and 40 on Windows. The octa-core Arm processor (4 x A73 and 4 x A53) has 8 GB of RAM and 64 GB of flash memory. Wi-Fi 6 and Bluetooth 5.2 are supported, and the anti-glare, antimicrobial tempered glass has about 88% transparency.

The panel suits classrooms where teachers create and share lesson plans, assignments and quizzes, using apps from the Google Play Store and Google Workspace. Front and rear ports include HDMI In, DisplayPort, USB Type-C with 65 W Power Delivery, USB Type-B touch connections and an OPS slot. It mounts on a wall or a mobile stand, measures 1294 x 806 x 78 mm and weighs 29.5 kg net. Procure.ae provides installation across the UAE and free training for teachers.

Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
  • Google EDLA certification
  • 4K UHD display
  • Infrared touch
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Google EDLA certification
Gives teachers access to educational apps from the Google Play Store and Google Workspace.
02
4K UHD display
3840 x 2160 resolution, 400 nits brightness and 178-degree viewing angles.
03
Infrared touch
Responds in under 4 ms to stylus or finger input.
04
Multi-touch
20 touch points on Android and 40 touch points on Windows.
05
Wi-Fi 6 connectivity
Wi-Fi 6 and Bluetooth 5.2, with a Wi-Fi module slot.
06
Memory and storage
8 GB of RAM and 64 GB of flash memory.
07
Anti-glare glass
Anti-glare, anti-fingerprint, antimicrobial tempered glass with about 88% transparency.
08
Front and rear ports
Front USB Type-C with 65 W Power Delivery, HDMI In and touch USB; rear DisplayPort, RS232 and OPS slot.

Specifications

31 specifications
General
Key FeaturesGoogle EDLA certified, infrared touch, 20-point touch on Android and 40-point on Windows, Wi-Fi 6, Bluetooth 5.2, 8 GB RAM and 64 GB storage, anti-glare glass, OPS slot
Model55" Q Pro
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightLED
Brightness400 nits
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Touch Points20-point (Android) / 40-point (Windows) multi-touch
Touch Response Time< 4 ms
Touch TechnologyInfrared
Viewing Angle178°
Performance
ProcessorOcta-core Arm (4 x A73 + 4 x A53)
RAM8 GB
Storage64 GB
Storage Conditions-20 to 60 °C, 0% to 90% RH
Audio
Speaker Output20 W x 2 (maximum)
Connectivity
BluetoothBluetooth 5.2
Input Voltage100–240 V AC
PortsHDMI In 2.0 × 3, HDMI Out 2.0 × 1, DisplayPort 1.2 × 1, USB Type-C × 2 (one with 65 W PD), USB Type-B touch × 4, USB 3.0 Type-A × 4, RJ45 Gigabit In/Out × 1, RS232 × 1, OPS slot × 1
Wi-FiWi-Fi 6
Power
Power Consumption550 W (maximum)
Standby Power< 0.5 W
Physical
Dimensions1294 x 806 x 78 mm
MountingWall-mounted or mobile stand
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
Surface ProtectionAnti-glare, anti-fingerprint, antimicrobial tempered glass
Weight29.5 kg
Compliance
CertificationsGoogle EDLA certified

Questions

Can’t find your answer? Ask on WhatsApp

What is the Newline Q Pro 55-inch used for?
It is an interactive flat panel for classrooms. Teachers can use Google Play Store and Google Workspace apps on the Google EDLA-certified panel to create and share lesson plans, assignments and quizzes, and to run interactive lessons with stylus or finger input.
Is the Q Pro 55-inch touch-enabled?
Yes. It uses infrared touch with stylus or finger input, responding in under 4 ms, with 20 touch points on Android and 40 touch points on Windows. This makes it suitable for interactive lessons where students write or select on the screen.
Can it be wall mounted?
Yes. The manufacturer lists wall-mounted or mobile stand installation. The panel measures 1294 x 806 x 78 mm and weighs 29.5 kg net, so confirm the mount is rated for that load. Procure.ae provides installation across the UAE.
Which ports does it have for connecting a computer?
It has three HDMI In 2.0 inputs, an HDMI Out 2.0 port, a DisplayPort 1.2 port, and USB Type-C with 65 W Power Delivery on the front. Touch runs over the USB Type-B connections, and an OPS slot is available for an embedded computer module.
Does it support Wi-Fi?
Yes. The Q Pro 55-inch supports Wi-Fi 6 and Bluetooth 5.2, and it includes a Wi-Fi module slot. Connectivity can be planned around the school or office network with the Procure.ae team before installation.
Can I buy the Newline TT-5523QA in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
