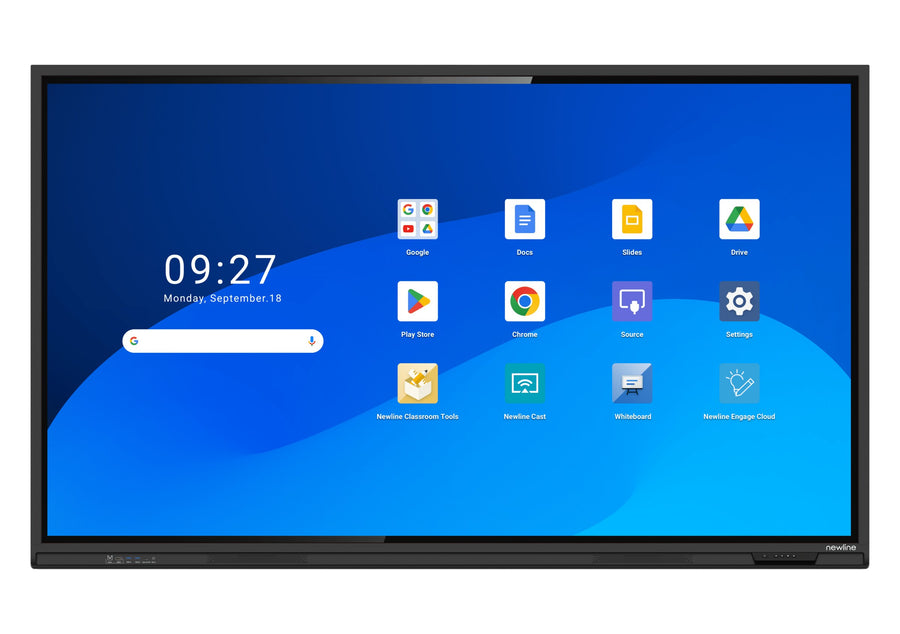

Newline Q Pro 55-inch 4K UHD Interactive Flat Panel – TT-5523QA
The Newline Q Pro 55-inch (TT-5523QA) is a 4K UHD interactive flat panel for classrooms, with Google EDLA certification for access to Google Play and Google Workspace apps. It has infrared touch with 20 points on Android and 40 on Windows, and it is rated at 400 nits. Procure.ae supplies it across the UAE.
The Q Pro 55-inch has a 3840 x 2160 (4K) LED display with 400 nits brightness, 178-degree viewing angles and 1.07 billion colours. Its infrared touch responds in under 4 ms and accepts stylus or finger input, with 20 touch points on Android and 40 on Windows. The octa-core Arm processor (4 x A73 and 4 x A53) has 8 GB of RAM and 64 GB of flash memory. Wi-Fi 6 and Bluetooth 5.2 are supported, and the anti-glare, antimicrobial tempered glass has about 88% transparency.
The panel suits classrooms where teachers create and share lesson plans, assignments and quizzes, using apps from the Google Play Store and Google Workspace. Front and rear ports include HDMI In, DisplayPort, USB Type-C with 65 W Power Delivery, USB Type-B touch connections and an OPS slot. It mounts on a wall or a mobile stand, measures 1294 x 806 x 78 mm and weighs 29.5 kg net. Procure.ae provides installation across the UAE and free training for teachers.
Key features
Specifications
| Key Features | Google EDLA certified, infrared touch, 20-point touch on Android and 40-point on Windows, Wi-Fi 6, Bluetooth 5.2, 8 GB RAM and 64 GB storage, anti-glare glass, OPS slot |
| Model | 55" Q Pro |
| Type | Interactive Flat Panel |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | 400 nits |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 55 inch |
| Touch Points | 20-point (Android) / 40-point (Windows) multi-touch |
| Touch Response Time | < 4 ms |
| Touch Technology | Infrared |
| Viewing Angle | 178° |
| Processor | Octa-core Arm (4 x A73 + 4 x A53) |
| RAM | 8 GB |
| Storage | 64 GB |
| Storage Conditions | -20 to 60 °C, 0% to 90% RH |
| Speaker Output | 20 W x 2 (maximum) |
| Bluetooth | Bluetooth 5.2 |
| Input Voltage | 100–240 V AC |
| Ports | HDMI In 2.0 × 3, HDMI Out 2.0 × 1, DisplayPort 1.2 × 1, USB Type-C × 2 (one with 65 W PD), USB Type-B touch × 4, USB 3.0 Type-A × 4, RJ45 Gigabit In/Out × 1, RS232 × 1, OPS slot × 1 |
| Wi-Fi | Wi-Fi 6 |
| Power Consumption | 550 W (maximum) |
| Standby Power | < 0.5 W |
| Dimensions | 1294 x 806 x 78 mm |
| Mounting | Wall-mounted or mobile stand |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 40 °C |
| Surface Protection | Anti-glare, anti-fingerprint, antimicrobial tempered glass |
| Weight | 29.5 kg |
| Certifications | Google EDLA certified |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
