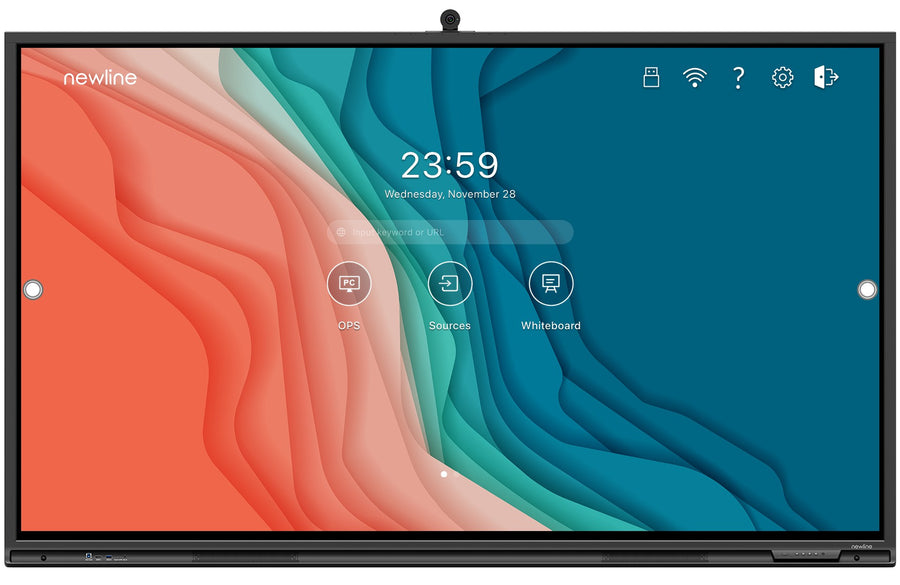

Newline Q+ Series 86-inch 4K Interactive Flat Panel – TT-8622Q
The Newline TT-8622Q is an 86-inch 4K UHD interactive flat panel with a 4K camera module, an 8-microphone array and 100 W USB-C power delivery. It runs Android 11 with 8 GB RAM and 64 GB storage. Procure.ae supplies the Newline Q+ Series across the UAE, with quotes, delivery and installation.
The TT-8622Q has an 86-inch LED display at 3840 x 2160 resolution, 400 nits brightness, 5,000:1 dynamic contrast and a 178-degree viewing angle. Its infrared touch supports 20 points on Android and 40 points on Windows, and the antimicrobial tempered glass has 88% transparency and 7H surface hardness. The panel uses an Amlogic 311D2 processor with 8 GB RAM and 64 GB storage, running Android 11 with Wi-Fi 6 through a Wi-Fi module slot. Two 20 W front speakers and a 15 W rear subwoofer provide sound at 80 ±3 dB.
The Q+ Series is positioned as the more powerful sibling of the Q Series. Compared with the TT-8621Q, the TT-8622Q adds a 4K camera module with a 120-degree field of view and an 8-microphone array with an 8 m pickup distance, and it raises USB-C power delivery from 65 W to 100 W. It also provides an OPS-PC slot and an SDM-S slot, so it suits hybrid classrooms and meeting rooms that need a built-in camera and microphone. Procure.ae supplies the Q+ Series across the UAE.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 4K camera module
- 8-microphone array
- 20-point touch
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K camera module
4K at 30 Hz with a 120-degree field of view and a 15-degree tilt range.
02
8-microphone array
Built-in array with an 8 m pickup distance.
03
20-point touch
Infrared touch with 20 points on Android and 40 points on Windows.
04
Android 11 platform
Amlogic 311D2 processor with 8 GB RAM and 64 GB storage.
05
100 W USB-C power delivery
A USB-C port with 100 W power delivery, plus a USB 3.0 Type-C port without PD.
06
Expansion slots
An OPS-PC slot and an SDM-S slot on the panel.
07
Built-in sound
Two 20 W front speakers and a 15 W rear subwoofer, rated at 80 ±3 dB.
08
Wi-Fi 6 and network
Wi-Fi 6 through a Wi-Fi module slot and two RJ-45 ports for wired networks.
Specifications
34 specificationsGeneral
Key Features4K camera, 8-mic array, 20-point touch, Android 11, 8 GB RAM, 64 GB storage, 100 W USB-C power delivery, OPS-PC and SDM-S slots
ModelTT-8622Q
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness400 nits
Camera4K UHD at 30 Hz, 120° field of view, 15° tilt range
Contrast Ratio5,000:1 (dynamic)
Display TypeLED
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (typical), 10 ms (maximum)
Screen Size86 inch
Touch Points20-point (Android), 40-point (Windows)
Touch TechnologyInfrared
Viewing Angle178°
Performance
Operating SystemAndroid 11
ProcessorAmlogic 311D2
RAM8 GB
Storage64 GB
Storage Conditions-20 to 60 °C, 0% to 90% RH
Audio
Frequency Response250 Hz – 20 kHz (front), 20 Hz – 20 kHz (subwoofer)
Microphone8-mic array, 8 m pickup distance
Speaker Output20 W × 2 (front), 15 W (subwoofer)
Connectivity
Input Voltage100–240 V AC
OPS SlotOPS-PC slot and SDM-S slot
PortsHDMI 2.0 In × 3, DisplayPort 1.2 × 1, HDMI 2.0 Out × 1, USB-C (PD 100 W) × 1, USB 3.0 Type-C × 1, USB 3.0 Type-A × 4, Microphone In × 1, Audio Line Out × 1, S/PDIF × 1, RS-232 × 1, RJ-45 × 2
Touch USB Ports4 × USB Type-B
Wi-FiWi-Fi 6 (module slot)
Power
Power Consumption670 W (maximum), under 270 W (eco)
Standby PowerUnder 0.5 W
Physical
Dimensions1981 x 1190 x 116 mm
MountingWall-mounted / mobile stand
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
Weight65 kg (net)
Downloads
Manufacturer documents for the Newline Q+ Series 86-inch 4K Interactive Flat Panel – TT-8622Q — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the TT-8622Q have a built-in camera and microphone?
Yes. It has a 4K camera module at 30 Hz with a 120-degree field of view and a 15-degree tilt range, and an 8-microphone array with an 8 m pickup distance. The camera is modular and the microphone array is built into the panel.
How does the TT-8622Q differ from the TT-8621Q?
The TT-8622Q adds a 4K camera module, an 8-microphone array and 100 W USB-C power delivery compared with 65 W on the TT-8621Q. It also has 8 GB RAM and 64 GB storage, compared with 4 GB RAM and 32 GB storage. Both models share the 86-inch 4K display, the 178-degree viewing angle and an OPS-PC slot.
Is the TT-8622Q suitable for hybrid classrooms?
Yes. The 4K camera, 8-microphone array, 20-point touch and Android 11 make the TT-8622Q suitable for hybrid classrooms and meeting rooms. Three HDMI 2.0 inputs and a DisplayPort 1.2 input connect laptops and other sources, and the USB-C port with 100 W power delivery can charge a connected laptop.
Which operating system and storage does the TT-8622Q have?
The TT-8622Q runs Android 11 on an Amlogic 311D2 processor with 8 GB RAM and 64 GB of internal storage. The manufacturer also lists 64 GB of external memory on an SD card, and the panel includes an SDM-S slot.
How is the TT-8622Q mounted, and what are its dimensions?
The TT-8622Q can be wall-mounted or fitted to a mobile stand. Its outline dimensions are 1981 x 1190 x 116 mm and its net weight is 65 kg, so confirm the wall structure before installation. The manufacturer's specifications do not state a VESA pattern for this model, so confirm the mount with Procure.ae.
