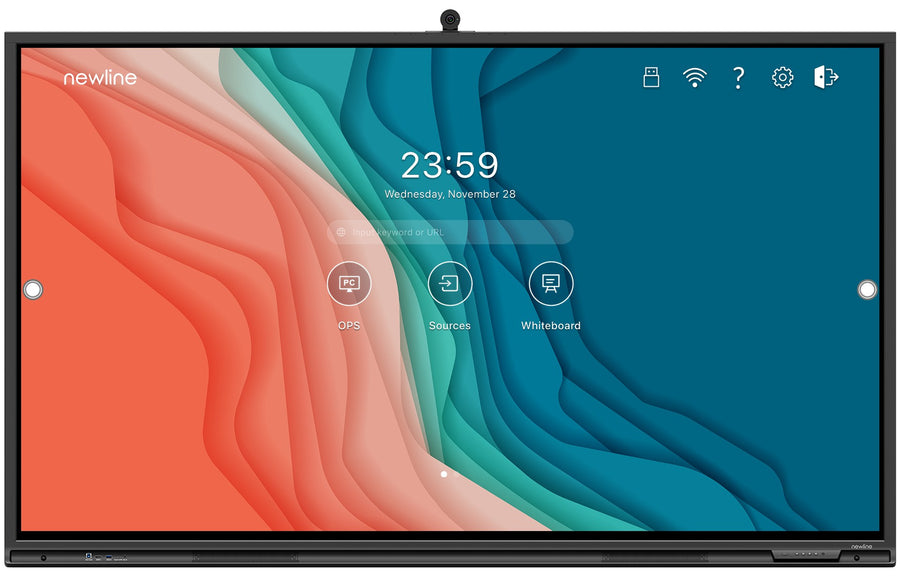

The Newline TT-8622Q is an 86-inch 4K UHD interactive flat panel with a 4K camera module, an 8-microphone array and 100 W USB-C power delivery. It runs Android 11 with 8 GB RAM and 64 GB storage. Procure.ae supplies the Newline Q+ Series across the UAE, with quotes, delivery and installation.
The TT-8622Q has an 86-inch LED display at 3840 x 2160 resolution, 400 nits brightness, 5,000:1 dynamic contrast and a 178-degree viewing angle. Its infrared touch supports 20 points on Android and 40 points on Windows, and the antimicrobial tempered glass has 88% transparency and 7H surface hardness. The panel uses an Amlogic 311D2 processor with 8 GB RAM and 64 GB storage, running Android 11 with Wi-Fi 6 through a Wi-Fi module slot. Two 20 W front speakers and a 15 W rear subwoofer provide sound at 80 ±3 dB.
The Q+ Series is positioned as the more powerful sibling of the Q Series. Compared with the TT-8621Q, the TT-8622Q adds a 4K camera module with a 120-degree field of view and an 8-microphone array with an 8 m pickup distance, and it raises USB-C power delivery from 65 W to 100 W. It also provides an OPS-PC slot and an SDM-S slot, so it suits hybrid classrooms and meeting rooms that need a built-in camera and microphone. Procure.ae supplies the Q+ Series across the UAE.
| Key Features | 4K camera, 8-mic array, 20-point touch, Android 11, 8 GB RAM, 64 GB storage, 100 W USB-C power delivery, OPS-PC and SDM-S slots |
| Model | TT-8622Q |
| Type | Interactive Flat Panel |
| Aspect Ratio | 16:9 |
| Brightness | 400 nits |
| Camera | 4K UHD at 30 Hz, 120° field of view, 15° tilt range |
| Contrast Ratio | 5,000:1 (dynamic) |
| Display Type | LED |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms (typical), 10 ms (maximum) |
| Screen Size | 86 inch |
| Touch Points | 20-point (Android), 40-point (Windows) |
| Touch Technology | Infrared |
| Viewing Angle | 178° |
| Operating System | Android 11 |
| Processor | Amlogic 311D2 |
| RAM | 8 GB |
| Storage | 64 GB |
| Storage Conditions | -20 to 60 °C, 0% to 90% RH |
| Frequency Response | 250 Hz – 20 kHz (front), 20 Hz – 20 kHz (subwoofer) |
| Microphone | 8-mic array, 8 m pickup distance |
| Speaker Output | 20 W × 2 (front), 15 W (subwoofer) |
| Input Voltage | 100–240 V AC |
| OPS Slot | OPS-PC slot and SDM-S slot |
| Ports | HDMI 2.0 In × 3, DisplayPort 1.2 × 1, HDMI 2.0 Out × 1, USB-C (PD 100 W) × 1, USB 3.0 Type-C × 1, USB 3.0 Type-A × 4, Microphone In × 1, Audio Line Out × 1, S/PDIF × 1, RS-232 × 1, RJ-45 × 2 |
| Touch USB Ports | 4 × USB Type-B |
| Wi-Fi | Wi-Fi 6 (module slot) |
| Power Consumption | 670 W (maximum), under 270 W (eco) |
| Standby Power | Under 0.5 W |
| Dimensions | 1981 x 1190 x 116 mm |
| Mounting | Wall-mounted / mobile stand |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 40 °C |
| Weight | 65 kg (net) |
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
