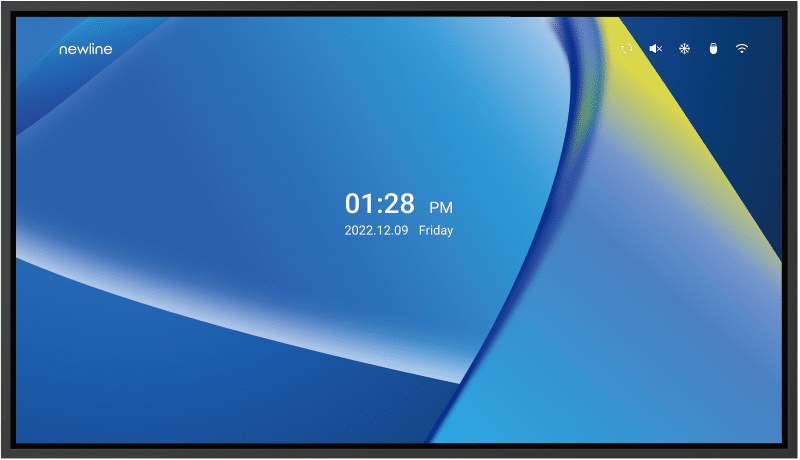

Newline NT+ Series 75-inch 4K UHD Non-Touch Display – TT-7523NT
The Newline TT-7523NT is a 75-inch 4K UHD non-touch display for classrooms and meeting rooms. It offers wireless screen casting from phones, tablets and laptops, an Android 11 smart system and 400 cd/m² brightness. Procure.ae supplies the Newline TT-7523NT across the UAE, with delivery and installation.
The 75-inch LED panel offers 3840 x 2160 (4K UHD) resolution, 400 cd/m² brightness, a typical 4,000:1 contrast ratio, an 8 ms response time and a 178° viewing angle, with a rated life of 50,000 hours. It is a non-touch model. A quad-core Arm Cortex-A55 processor with 4GB RAM and 32GB storage runs the Android 11 smart system, with multi-language support and firmware updates over USB or OTA.
The NT+ Series suits classrooms and meeting rooms that need presentations without touch input. Wireless casting shares screens from phones, tablets, desktops and laptops running Windows, Mac or Chrome. Files open from cloud storage or USB thumb drives on the display itself. Three HDMI inputs, a DisplayPort input, a VGA input, USB-C, RJ-45 LAN in and RS-232 connect the panel to room equipment. Wall-mounted or mobile cart setups are supported.
Key features
Specifications
| Key Features | Non-touch 4K display, wireless screen casting, Android 11 smart system, cloud and USB file access, Wi-Fi 6 module, remote control |
| Model | TT-7523NT |
| Type | Non-Touch Display |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | 400 nits |
| Color Depth | 1.07 billion (8-bit + FRC) |
| Contrast Ratio | 4,000:1 (typical) |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms (typical) |
| Screen Size | 75 inch |
| Touchscreen | No (non-touch) |
| Viewing Angle | 178° |
| Operating System | Android 11 (smart system) |
| Processor | Quad-core Arm Cortex-A55, up to 1.9 GHz |
| RAM | 4 GB |
| Storage | 32 GB |
| DisplayPort | 1 × DisplayPort |
| Speaker Output | 20 W × 2 (max) |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | RJ-45 LAN In × 1 |
| HDMI Inputs | 3 × HDMI In |
| Input Voltage | 100–240 V AC |
| Ports | HDMI In × 3, USB 2.0 × 3, RJ-45 LAN In × 1, RS-232 × 1, VGA In × 1, DisplayPort × 1, USB-C × 1 |
| Serial Port | RS-232 × 1 |
| USB Ports | 3 × USB 2.0 |
| USB-C Ports | 1 × USB-C |
| VGA Input | 1 × VGA In (with VGA audio) |
| Wi-Fi | Wi-Fi 6 (pluggable module) |
| Power Consumption | 300 W (standard mode) |
| Standby Power | Under 0.5 W |
| Dimensions | 1701 x 979 x 94 mm |
| Mounting | Wall-mounted or mobile cart |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 40 °C |
| VESA Mount | 800 x 400 mm |
| Weight | 33 kg |
