NewlineInteractive Flat PanelsSKU TT-5523NT

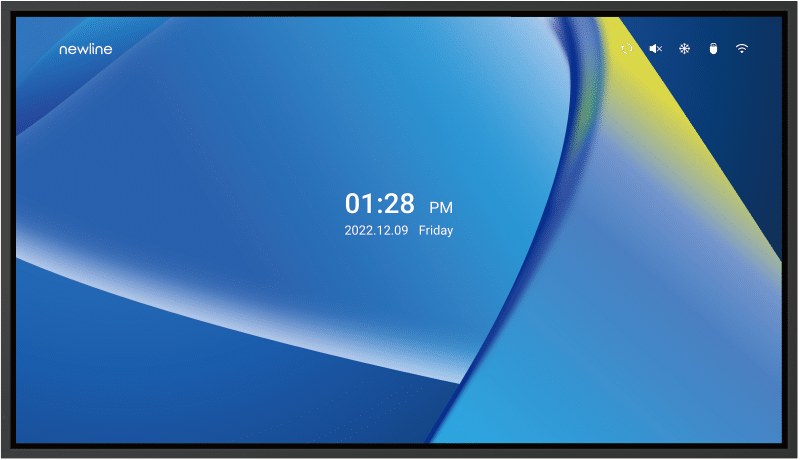

Newline NT+ Series 55-inch 4K Non-Touch Display – TT-5523NT
The Newline NT+ Series 55-inch (TT-5523NT) is a 4K UHD non-touch display for classrooms and meeting rooms. It offers 3840 x 2160 resolution, 400 cd/m² brightness, Android 11 and wireless screen casting from mobile devices and laptops. Procure.ae supplies the TT-5523NT in the UAE.
The panel uses an LED backlight with 400 cd/m² centre brightness, 4,000:1 typical contrast and an 8 ms response time, with a 178° viewing angle and a rated life of at least 50,000 hours. A quad-core ARM Cortex-A55 processor, 4 GB RAM and 32 GB storage run Android 11. Users can share screens wirelessly from mobile devices, tablets, Windows, Mac and Chrome laptops, and open files from USB drives or cloud storage directly on the display.
The NT+ Series suits classrooms, lecture halls and meeting rooms where a large 4K screen is needed without touch interaction. It has three HDMI In ports, a DisplayPort input, a USB-C input, a LAN input, RS232 for control and a VGA input. It mounts on a 400 x 400 mm VESA pattern or a mobile cart. Newline lists the NT+ Series in sizes from 55 to 98 inches, so larger rooms can use the same range.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Non-Touch Display
- 4K UHD non-touch display
- Wireless screen casting
- Cloud and USB file access
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD non-touch display
3840 x 2160 resolution on a 55-inch panel.
02
Wireless screen casting
share from mobile devices, tablets, desktops and laptops.
03
Cloud and USB file access
open files from cloud storage or USB drives on the display.
04
Android 11 built in
quad-core ARM Cortex-A55 processor with 4 GB RAM and 32 GB storage.
05
Brightness and contrast
400 cd/m² centre brightness and 4,000:1 typical contrast.
06
Wi-Fi 6 and Bluetooth 5.2
pluggable wireless module for connectivity.
07
Multiple inputs
three HDMI In, DisplayPort, USB-C, VGA In, LAN In, RS232 and three USB 2.0 ports.
08
Wall or cart mounting
400 x 400 mm VESA pattern or a mobile cart.
Specifications
32 specificationsGeneral
Key FeaturesNon-touch 4K display, wireless screen casting, cloud and USB file access, Android 11, remote control, OTA firmware updates, multi-language support, VESA mounting
ModelTT-5523NT
TypeNon-Touch Display
Display
BacklightLED
Brightness400 nits
Color Depth1.07 billion colours (8-bit + FRC)
Contrast Ratio4,000:1
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178°
Performance
Operating SystemAndroid 11
ProcessorQuad-core ARM Cortex-A55, up to 1.9 GHz
RAM4 GB
Storage32 GB
Storage Conditions15 to 45 °C; 20% to 90% RH (non-condensing)
Audio
Speaker ConfigurationDownward-facing, 2 speakers
Speaker Output15 W x 2 (max)
Connectivity
BluetoothBluetooth 5.2
Input Voltage100–240 V AC
OPS SlotN/A
PortsHDMI In × 3, USB 2.0 × 3, LAN In × 1, RS232 × 1, VGA In × 1, VGA Audio × 1, DisplayPort × 1, USB-C × 1
USB-C Ports1
Wi-FiWi-Fi 6 (pluggable module)
Power
Power Consumption250 W (standard mode)
Standby Power<0.5 W
Physical
Dimensions1260 x 731 x 71 mm
MountingWall-mounted or mobile cart
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight18 kg
Downloads
Manufacturer documents for the Newline NT+ Series 55-inch 4K Non-Touch Display – TT-5523NT — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the NT+ Series 55-inch a touch display?
No. The TT-5523NT is a non-touch display, so it has no touch points or pen input. Control is handled through the panel's menu buttons and a compatible remote, and content comes from wireless casting or from devices connected to its inputs.
Can I share a laptop or phone screen to it wirelessly?
Yes. The NT+ Series supports wireless screen casting from mobile devices, tablets, desktops and laptops, including Windows, Mac and Chrome. The wireless connection uses a pluggable Wi-Fi 6 and Bluetooth 5.2 module.
What wall mount does the 55-inch use?
The 55-inch model uses a 400 x 400 mm VESA pattern and can be wall-mounted or fitted to a mobile cart. It weighs 18 kg net, so choose a bracket rated for at least that weight. Procure.ae can advise on mounting across the UAE.
Does it run apps and which operating system does it use?
It runs Android 11 with a quad-core ARM Cortex-A55 processor, 4 GB RAM and 32 GB storage. The display can also read files from USB drives and open files from cloud storage, and firmware can be updated over USB or OTA.
Which inputs does it have?
The inputs include three HDMI In ports, a DisplayPort input, a USB-C input, a VGA input with VGA audio, a LAN input, RS232 and three USB 2.0 ports. Multi-language support is also listed.
Can I buy the TT-5523NT in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
