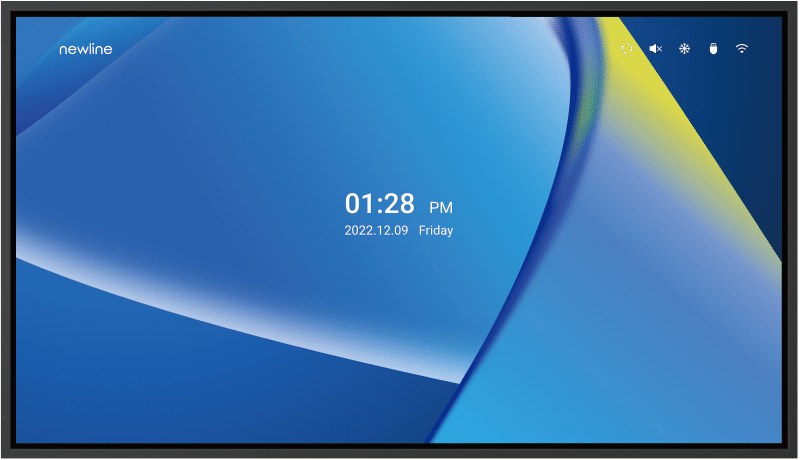

Newline NT+ Series 55-inch 4K Non-Touch Display – TT-5523NT

The Newline NT+ Series 55-inch (TT-5523NT) is a 4K UHD non-touch display for classrooms and meeting rooms. It offers 3840 x 2160 resolution, 400 cd/m² brightness, Android 11 and wireless screen casting from mobile devices and laptops. Procure.ae supplies the TT-5523NT in the UAE.

The panel uses an LED backlight with 400 cd/m² centre brightness, 4,000:1 typical contrast and an 8 ms response time, with a 178° viewing angle and a rated life of at least 50,000 hours. A quad-core ARM Cortex-A55 processor, 4 GB RAM and 32 GB storage run Android 11. Users can share screens wirelessly from mobile devices, tablets, Windows, Mac and Chrome laptops, and open files from USB drives or cloud storage directly on the display.

The NT+ Series suits classrooms, lecture halls and meeting rooms where a large 4K screen is needed without touch interaction. It has three HDMI In ports, a DisplayPort input, a USB-C input, a LAN input, RS232 for control and a VGA input. It mounts on a 400 x 400 mm VESA pattern or a mobile cart. Newline lists the NT+ Series in sizes from 55 to 98 inches, so larger rooms can use the same range.

Screen Size

55 inch

Resolution

3840 x 2160 (4K UHD)

Brightness

400 nits

Type

Non-Touch Display

Weight

18 kg

Key features

4K UHD non-touch display

3840 x 2160 resolution on a 55-inch panel.

Wireless screen casting

share from mobile devices, tablets, desktops and laptops.

Cloud and USB file access

open files from cloud storage or USB drives on the display.

Android 11 built in

quad-core ARM Cortex-A55 processor with 4 GB RAM and 32 GB storage.

Brightness and contrast

400 cd/m² centre brightness and 4,000:1 typical contrast.

Wi-Fi 6 and Bluetooth 5.2

pluggable wireless module for connectivity.

Multiple inputs

three HDMI In, DisplayPort, USB-C, VGA In, LAN In, RS232 and three USB 2.0 ports.

Wall or cart mounting

400 x 400 mm VESA pattern or a mobile cart.

Specifications

General
Key Features	Non-touch 4K display, wireless screen casting, cloud and USB file access, Android 11, remote control, OTA firmware updates, multi-language support, VESA mounting
Model	TT-5523NT
Type	Non-Touch Display

Display
Backlight	LED
Brightness	400 nits
Color Depth	1.07 billion colours (8-bit + FRC)
Contrast Ratio	4,000:1
Resolution	3840 x 2160 (4K UHD)
Response Time	8 ms
Screen Size	55 inch
Viewing Angle	178°

Performance
Operating System	Android 11
Processor	Quad-core ARM Cortex-A55, up to 1.9 GHz
RAM	4 GB
Storage	32 GB
Storage Conditions	15 to 45 °C; 20% to 90% RH (non-condensing)

Audio
Speaker Configuration	Downward-facing, 2 speakers
Speaker Output	15 W x 2 (max)

Connectivity
Bluetooth	Bluetooth 5.2
Input Voltage	100–240 V AC
OPS Slot	N/A
Ports	HDMI In × 3, USB 2.0 × 3, LAN In × 1, RS232 × 1, VGA In × 1, VGA Audio × 1, DisplayPort × 1, USB-C × 1
USB-C Ports	1
Wi-Fi	Wi-Fi 6 (pluggable module)

Power
Power Consumption	250 W (standard mode)
Standby Power	<0.5 W

Physical
Dimensions	1260 x 731 x 71 mm
Mounting	Wall-mounted or mobile cart
Operating Humidity	20% to 80% RH (non-condensing)
Operating Temperature	0 to 40 °C
VESA Mount	400 x 400 mm
Weight	18 kg

QR code to Newline NT+ Series 55-inch 4K Non-Touch Display – TT-5523NT on procure.ae

Get our best price for this product

Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
