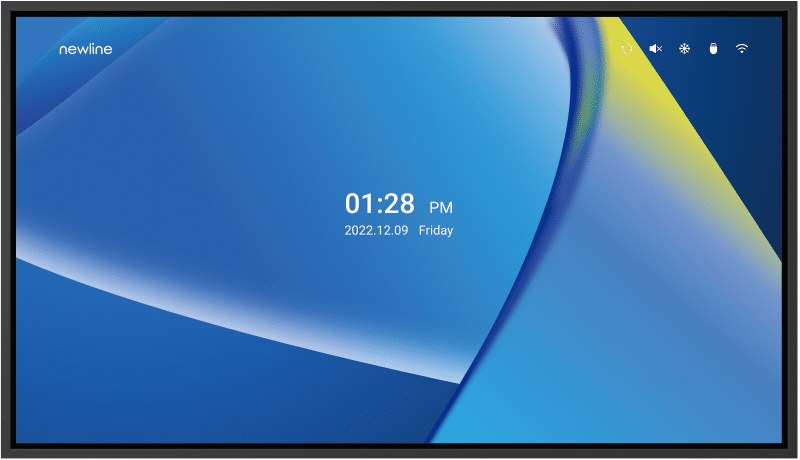

Newline NT+ Series 86-inch 4K Non-Touch Display – TT-8623NT

Name: Newline NT+ Series 86-inch 4K Non-Touch Display – TT-8623NT
Brand: Newline
SKU: TT-8623NT
Availability: InStock

The Newline TT-8623NT is an 86-inch 4K UHD non-touch display for classrooms and meeting rooms, with wireless screen sharing, Android 11 and 400 nits brightness. It mounts on a wall or mobile cart using an 800 x 400 mm VESA pattern. Procure.ae supplies the Newline NT+ Series across the UAE, with quotes, delivery and installation.

The TT-8623NT has an 86-inch LED-backlit panel at 3840 x 2160 resolution, with 400 nits centre brightness, 4,000:1 typical contrast, an 8 ms response time and a 178-degree viewing angle. Its 10-bit panel shows 1.07 billion colours. The Smart System runs Android 11 on a quad-core Arm Cortex-A55 processor with 4 GB RAM and 32 GB ROM. Users can cast the screen wirelessly from mobile devices, tablets, desktops and laptops, including Windows, Mac and Chrome, and open files stored on cloud storage services or on USB thumb drives.

The NT+ Series is built for shared viewing rather than writing on screen. The TT-8623NT has no touch sensor, so it does not accept finger or pen input. Its connections include three HDMI In ports, three USB 2.0 ports, an RJ-45 LAN input and an RS-232 port. A pluggable Wi-Fi 6 and Bluetooth 5.2 module adds wireless connectivity, and firmware can be updated over USB or over the air.

Screen Size

86 inch

Resolution

3840 x 2160 (4K UHD)

Brightness

400 nits (centre)

Type

Non-Touch Display

Non-touch display
4K UHD resolution
Wireless screen sharing

Price

On request · best price

WhatsApp Call

Download spec sheet (PDF) Manufacturer datasheet (PDF)

Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond

Manufacturer warrantyBacked by the brand

InstallationArranged on request

Key features

Non-touch display

Built for shared viewing, with no touch sensor and no finger or pen input.

4K UHD resolution

3840 x 2160 LED panel with 400 nits centre brightness.

Wireless screen sharing

Cast from mobile devices, tablets, desktops and laptops, including Windows, Mac and Chrome.

Android 11 Smart System

Quad-core Arm Cortex-A55 processor with 4 GB RAM and 32 GB ROM.

Cloud and USB file access

Open files from cloud storage services on the display and from USB thumb drives.

Input and control ports

Three HDMI In ports, three USB 2.0 ports, an RJ-45 LAN input and an RS-232 port.

Wi-Fi 6 and Bluetooth 5.2

A pluggable module provides Wi-Fi 6 and Bluetooth 5.2 connectivity.

Built-in speakers

15 W × 2 average and 20 W × 2 maximum output.

Specifications

32 specifications

General

Key Features4K UHD, non-touch, wireless screen sharing, cloud storage access, USB file access, Android 11, USB and OTA firmware update, multi-language support

ModelTT-8623NT

TypeNon-Touch Display

Display

Aspect Ratio16:9

BacklightLED

Brightness400 nits (centre)

Color Depth1.07 billion colours (10-bit)

Contrast Ratio4,000:1 (typical)

Resolution3840 x 2160 (4K UHD)

Response Time8 ms (typical)

Screen Size86 inch

TouchscreenNo (non-touch)

Viewing Angle178°

Performance

Operating SystemAndroid 11

ProcessorQuad-core Arm Cortex-A55, 1.5 GHz (up to 1.9 GHz)

RAM4 GB

Storage32 GB

Storage Conditions15 to 45 °C, 20% to 90% RH

Audio

Frequency Response250 Hz – 20 kHz

Speaker Output15 W × 2 average, 20 W × 2 maximum

Connectivity

BluetoothBluetooth 5.2

Input Voltage100–240 V AC

PortsHDMI In × 3, USB 2.0 × 3, RJ-45 LAN In × 1, RS-232 × 1

Wi-FiWi-Fi 6 (pluggable module)

Power

Power Consumption350 W (standard mode)

Standby PowerUnder 0.5 W

Physical

Dimensions1946 x 1116 x 94 mm

MountingWall-mounted / mobile cart

Operating Humidity20% to 80% RH

Operating Temperature0 to 40 °C

VESA Mount800 x 400 mm

Weight42 kg (net)

Downloads

Manufacturer documents for the Newline NT+ Series 86-inch 4K Non-Touch Display – TT-8623NT — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Does the TT-8623NT have a touch screen?

No. The TT-8623NT is a non-touch display, so it does not accept finger or pen input. It is designed for shared viewing, wireless screen sharing and file playback from cloud storage or USB drives, and it is controlled with a compatible remote.

Can I share a laptop screen to the TT-8623NT wirelessly?

Yes. The display supports wireless casting from mobile devices, tablets, desktops and laptops, including Windows, Mac and Chrome. Screen sharing can also run through the HDMI inputs built into the panel.

What VESA pattern and dimensions does the TT-8623NT need?

The TT-8623NT uses an 800 x 400 mm VESA mount pattern. Its outline dimensions are 1946 x 1116 x 94 mm without the wall bracket thickness, and its net weight is 42 kg. Confirm that the wall or mobile cart can carry this weight, and Procure.ae provides installation across the UAE.

What inputs and control ports does the TT-8623NT have?

It has three HDMI In ports, three USB 2.0 ports, an RJ-45 LAN input and an RS-232 port for control. The manufacturer's specifications list a pluggable Wi-Fi 6 and Bluetooth 5.2 module for wireless connection, and the panel supports multi-language menus.

Which operating system and storage does the TT-8623NT use?

The TT-8623NT runs Android 11 on a quad-core Arm Cortex-A55 processor, with 4 GB RAM and 32 GB ROM. Firmware can be updated through USB or over the air (OTA), and the display supports standby mode.
